Sanyo PLC-XP200L User Manual

23
RGB Scart
21-pin Output

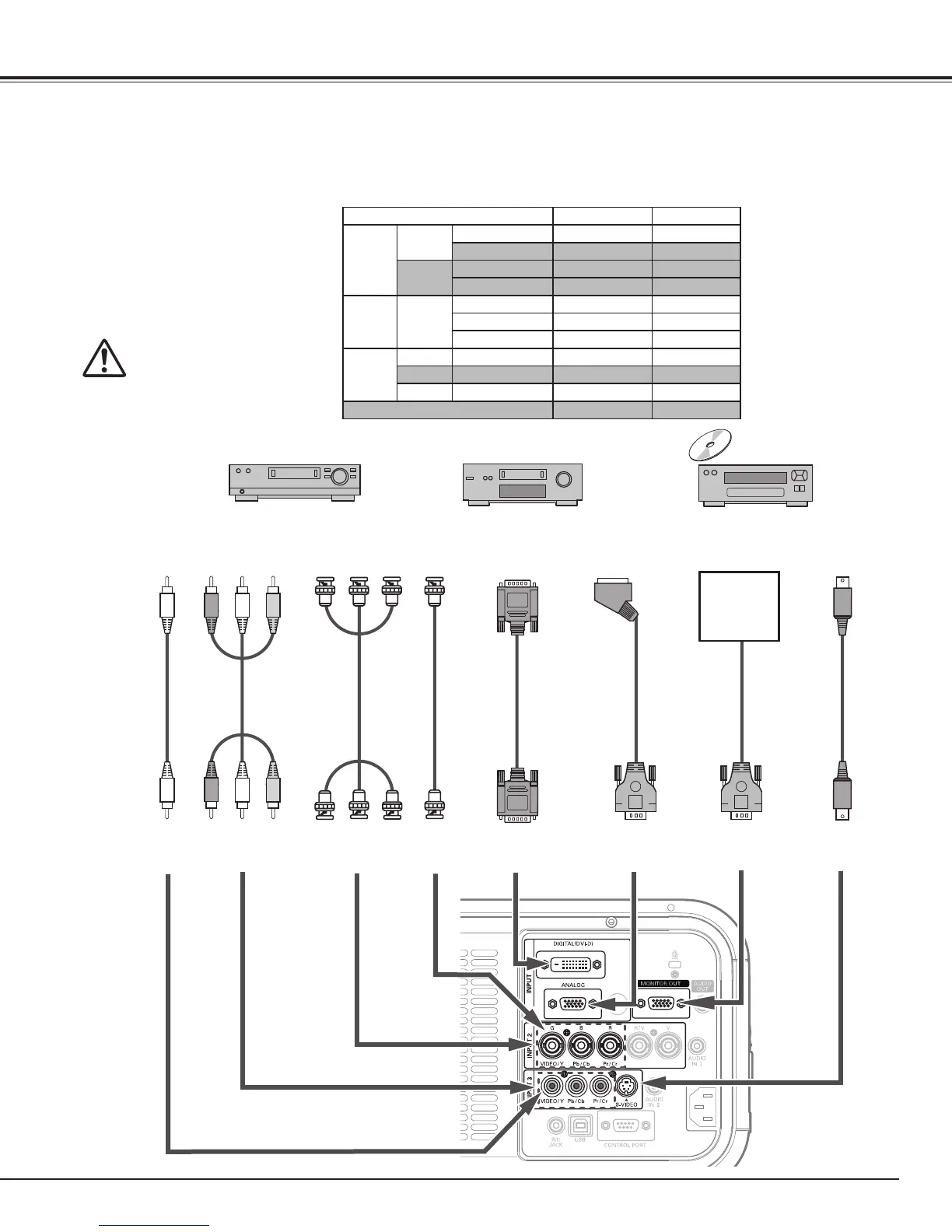

Connecting to Video Equipment (Video, S-Video)
S-video
cable
S-video
Output
Composite Video
Y - Pb/Cb - Pr/Cr
BNC
cable
Unplug the power cords
of both the projector
and external equipment
from the AC outlet before
connecting cables.
Cables used for connection (✽ = Cables not supplied with this projector.)
• Video Cable (RCA x 1 or RCA x 3) ✽
• BNC Cable ✽
• S-VIDEO Cable ✽
• Scart-VGA Cable ✽
• DVI-Digital Cable ✽
Component Video
Output
Composite Video
Component Video
Output
(Y, Pb/Cb, Cr/Pr)
Digital Output
(HDCP
compatible)
RCA
cable
DVI-Digital
cable
Scart-VGA
cable
Video Video
Y - Pb/Cb - Pr/Cr
DIGITAL IN ANALOG IN MONITOR OUT S-VIDEO
Installation
Input Terminal Monitor Out Cable
Input 1
D-sub15
RGB (PC analog) YES
RGB (SCART) NO
DVI-D
RGB (PC digital) NO
RGB (AV HDCP) NO
Input 2 5BNC
RGB YES
Video YES
Q
Y, Cb/Cr YES
Q
Input 3
RCA
Y, Cb/Cr YES
Q
S-Video
S-video NO
Video
Video YES
Q
Network
NO
Monitor Out Signal Table
Refer to the
Monitor Out
Signal Table
(above).
Q
A cable with one
end D-sub 15 and
the other end (Black
box) compatible with
each equipment is
necessary.

Sanyo PLC-XP200L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Bundled software	User Manual (CD ROM)
I/O ports	DVI-D (digital/HDCP) D-Sub15 (RGB/SCART-RGB) 5 x BNC (RGBHV/Composite/Y-Pb/Cb-Pr/Cr) 3 x RCA (Video/Y-Pb/Cb-Pr/Cr) Mini DIN 4 (S-Video) 3.5 mm Stereo Jack D-Sub15 D-Sub9 (RS232) 3.5 mm Stereo Jack (cable remote control) USB type B
Compatibility	UXGA SXGA SXGA+ WXGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	370 x 440 x 187 mm
Power requirements	100 - 240 V
Power consumption (standby)	24.5 W
Power consumption (typical)	499 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Placement	Ceiling

Weight and Dimensions

Weight	11400 g
Package weight	15900 g
