Operating with Projector Control
The following lens operation can be made with the Lens
button on the side control.
Press the LENS button to enter each lens operation mode.
The selected adjustment display appears on the screen.
Display “Lens shift” on the screen. Use the Point ed7 8
buttons to position the screen to the desired point without
having picture distortion.
The screen can be moved up or down to 50 percent, or
sideways up to 10 percent from the central axis of the
lens shift.

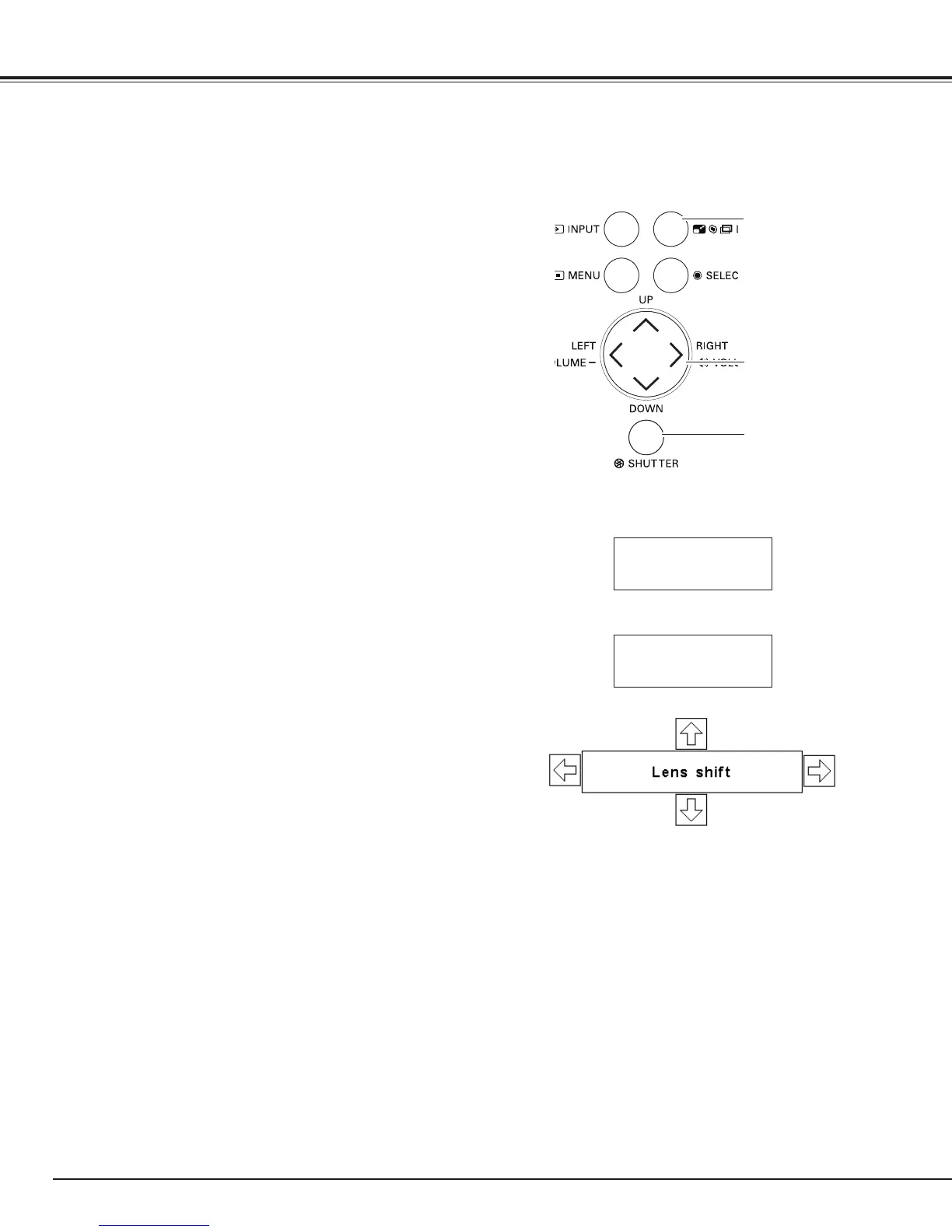

Lens Shift Adjustment
✔Note:
•Thearrowdisappears at the maximum lens shift
ineachdirection.
•Thearrowturnsredwhenthelensshiftcomesto
thecenterpositionofthescreen.
Display “Zoom” on the screen. Use the Point ed buttons
to zoom in and out the image.
Zoom Adjustment
Display “Focus” on the screen. Use the Point ed buttons
to adjust focus of the image.
Focus Adjustment
Side Control
LENS button
Lens Operation
ZOOM
FOCUS
POINT buttons
Zoom ➜ Focus ➜ Lens Shift ➜
• • • • •
Basic Operation
Shutter Function
Shutter function allows you to completely block out light
to the screen. Press the SHUTTER button to close the
shutter inside the projector. To open up the shutter, press
the SHUTTER button again. Refer to p.59 for detail of
setting for the Shutter function.
✔Note:
•The SHUTTER button on the side control and the
remote control cannot be effective when Shutter
Protectionis"On"intheSettingmenu.(p.59)
•TheLAMP/SHUTTERindicatorontheprojector'stop
lightsbluewhentheshutterisclosed.(p.13)
•The projector will shut down automatically when
the set time on shutter management has passed.
(p.59)
•The Power management function does not work
whentheshutterisclosed.(p.56)
