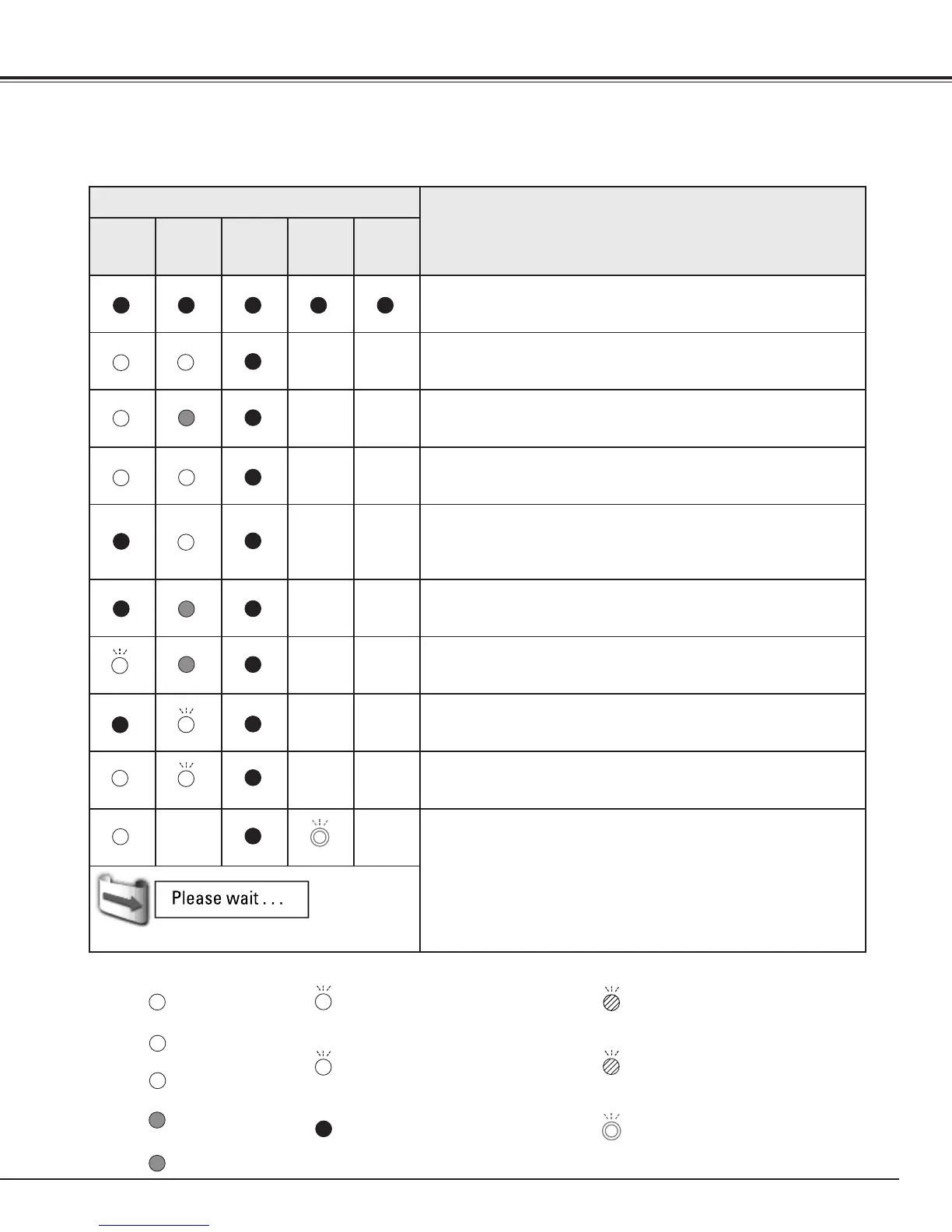

Indicators and Projector Condition
Check the indicators for the projector condition.
Indicators
Projector Condition
POWER
green
LAMP/
SHUTTER
red/blue
WARNING
TEMP.
red
WARNING
FILTER
orange
LAMP
REPLACE
orange
The projector is off. (The AC power cord is unplugged.)
The projector is in stand-by mode. Press the ON/STAND-BY
button to turn on the projector.
The projector is operating normally.
(The shutter is open)
The projector is operating normally.
(The shutter is closed)
The projector is preparing for stand-by or the projection lamp
is being cooled down. The projector cannot be turned on until
cooling is completed and the POWER indicator lights green.
The projection lamp is being cooled down in the Power
management mode.
The projector is in the Power management mode.
The projection lamp is being cooled down in the Shutter
management mode.
The projector is in the Shutter management mode. Press the
ON/STAND-BY button to turn on the projector.
The filter is scrolled using the FILTER button on the remote
control or the Filter control function in the setting menu.
When the filter is being scrolled, the Filter replacement icon
and “Please wait...” message (Fig. 1) appear on the screen for
about 30 seconds.
The projector is operating normally.
• • • on
• • • off
• • • blinking at the normal rate
(approx. 1 second ON,
1 second OFF)
• • • dim
• • • blinking slow
(approx. 2 seconds ON,
2 seconds OFF)
Appendix
Fig.1 Filter replacement icon and “Please wait...
• • • on (blue)
• • • blinking at the normal rate (blue
and dim red) (approx. 1 second
ON, 1 second OFF)
• • • blinking fast (blue and dim red)
(approx. 0.5 seconds ON, 0.5
seconds OFF)
• • • blinking fast
(approx. 0.5 seconds ON,
0.5 seconds OFF)
• • • on (red)
• • • dim (red)
• • • Differ according to conditions.
