Sanyo PLC-XP200L User Manual

28
Side Control
SELECT
button

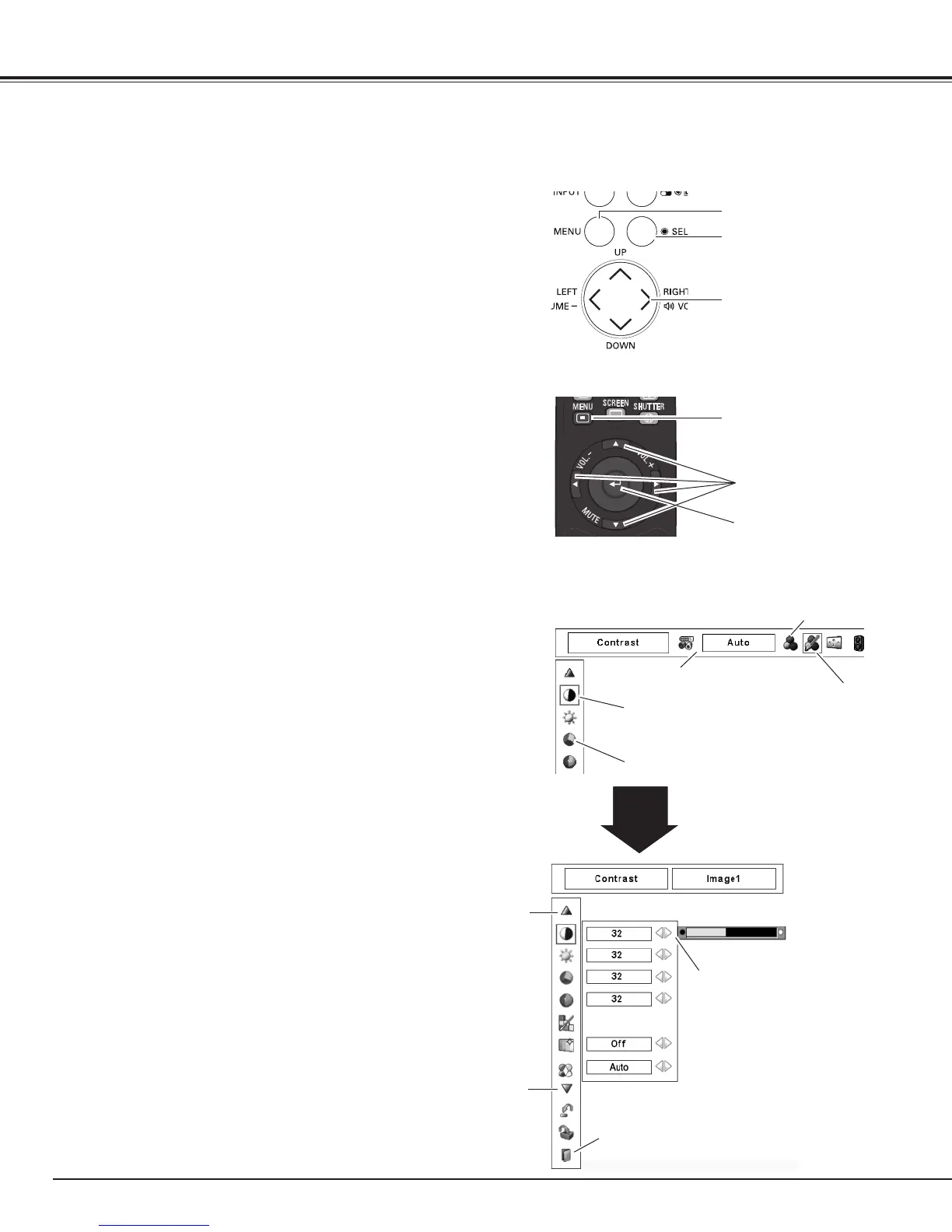

How to Operate the On-Screen Menu
MENU button
POINT buttons
On-Screen Menu
The projector can be adjusted or set via the On-Screen
Menu. For each adjustment and setting procedure, refer to
the respective sections in this manual.
Use the Point
7 8 buttons to select a Menu icon. Use
the Point ed buttons to select an item in the selected
menu.
Press the SELECT button to show the item data. Use
the Point
7 8 buttons to adjust the values.
To close the On-Screen Menu, press the MENU button
again.
Press the MENU button on the side control or the
remote control to display the On-Screen Menu.
✔Note:
 •TheselecteditemisnotactiveuntiltheSELECTbuttonispressed.
1
2
3
Remote Control
POINT buttons
SELECT button
MENU button
Basic Operation
Pointer
(red frame )
Pointer (red frame )
Press the Point
ed buttons
to move the pointer.
Item
Menu icon
Menu bar
Item data
Press the Point
7 8
buttons to adjust the
value.
Press the SELECT button here
to display next items.
Press the SELECT button here
to display previous items.
Quit
Exit this menu.
SELECT button

Sanyo PLC-XP200L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Bundled software	User Manual (CD ROM)
I/O ports	DVI-D (digital/HDCP) D-Sub15 (RGB/SCART-RGB) 5 x BNC (RGBHV/Composite/Y-Pb/Cb-Pr/Cr) 3 x RCA (Video/Y-Pb/Cb-Pr/Cr) Mini DIN 4 (S-Video) 3.5 mm Stereo Jack D-Sub15 D-Sub9 (RS232) 3.5 mm Stereo Jack (cable remote control) USB type B
Compatibility	UXGA SXGA SXGA+ WXGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	370 x 440 x 187 mm
Power requirements	100 - 240 V
Power consumption (standby)	24.5 W
Power consumption (typical)	499 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Placement	Ceiling

Weight and Dimensions

Weight	11400 g
Package weight	15900 g
