Sanyo PLC-XP200L User Manual

37
When the video input signal is connected to the Y-
Pb/Cb-Pr/Cr jacks, select Y, Pb/Cb, Pr/Cr.
When the video input signal is connected to the
VIDEO jack, select Video.
When the video input signal is connected to the S-
VIDEO jack, select S-Video.
When connecting to video equipment, select the type of
Video source in the Source Select Menu.
WHEN SELECTING INPUT 3 (AV TERMINALS )
WHEN SELECTING INPUT 2 (5 BNC INPUT JACKS )
When the video input signal is connected to the Y-
Pb/Cb-Pr/Cr jacks, select Y, Pb/Cb, Pr/Cr.
When the video input signal is connected to the
VIDEO jack, select Video.
When connecting to video equipment, select the type of
Video source in the Source Select Menu.
Video
Y, Pb/Cb, Pr/Cr
Video
Y, Pb/Cb, Pr/Cr
S-Video
Menu Operation
Input Menu icon
Move the pointer (red arrow) to Input
2 and press the SELECT button.
Input 2
Move the pointer (red
arrow) to Video or Y, Pb/Cb,
Pr/Cr and press the SELECT
button.
Source Select Menu
INPUT MENU
Input Menu icon
Move the pointer (red arrow) to Input
3 and press the SELECT button.
Input 3
Move the pointer (red
arrow) to the desired source
and press the SELECT
button.
Source Select Menu

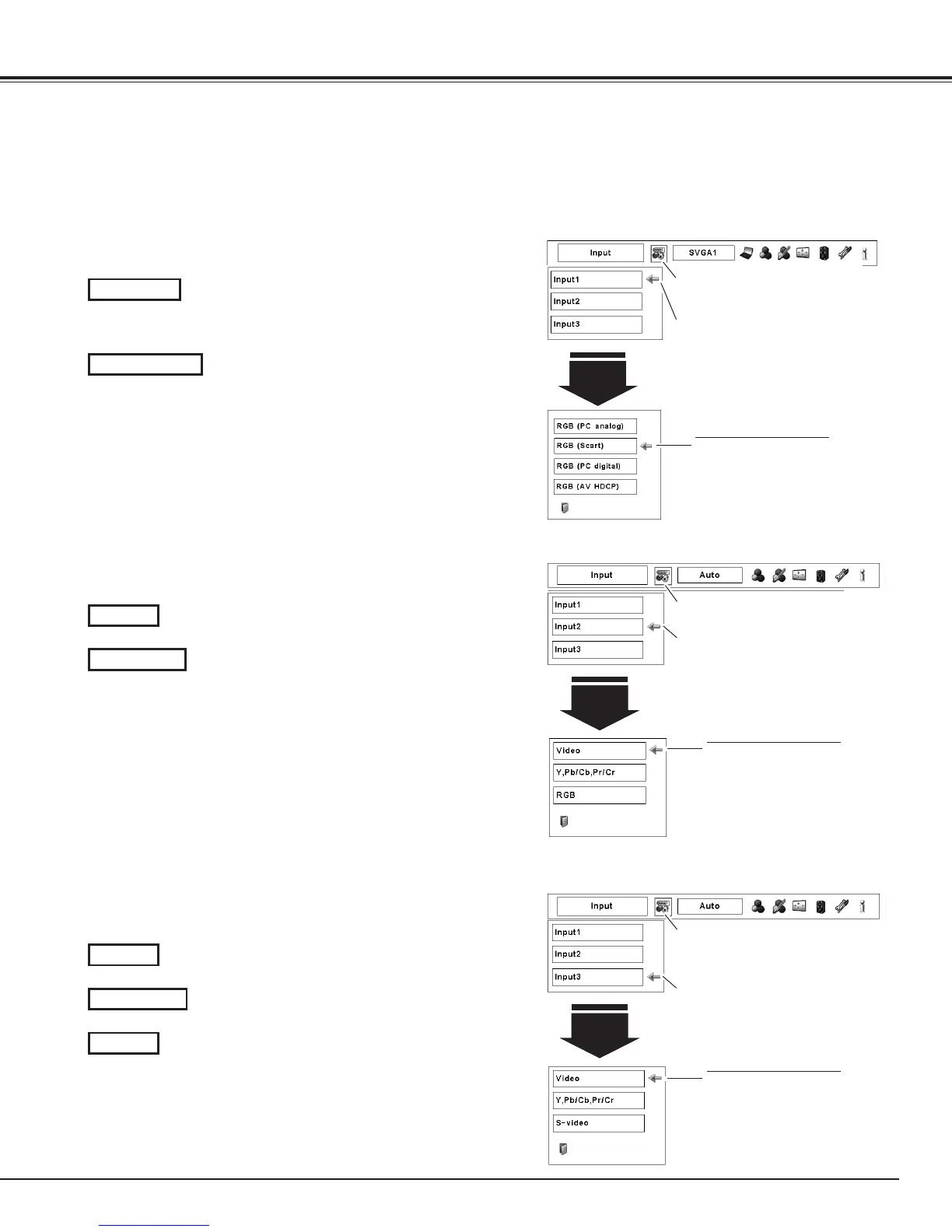

Video Input Source Selection
Input Selection
WHEN SELECTING INPUT 1 (COMPUTER INPUT TERMINALS )
When connecting to video equipment, select the type of
Video source in the Source Select Menu.
Input 1
INPUT MENU
Move the pointer (red
arrow) to RGB (Scart) or
RGB (AV HDCP) and press
the SELECT button.
Source Select Menu
Input Menu icon
Move the pointer (red arrow) to Input
1 and press the SELECT button.
RGB (AV HDCP)
RGB (Scart)
When scart video equipment is connected to the INPUT 1
(ANALOG) terminal, select RGB (Scart).
If the HDCP-compatible signal source is connected to the
INPUT 1 (DIGITAL) terminal, select RGB (AV HDCP).
INPUT MENU

Sanyo PLC-XP200L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Bundled software	User Manual (CD ROM)
I/O ports	DVI-D (digital/HDCP) D-Sub15 (RGB/SCART-RGB) 5 x BNC (RGBHV/Composite/Y-Pb/Cb-Pr/Cr) 3 x RCA (Video/Y-Pb/Cb-Pr/Cr) Mini DIN 4 (S-Video) 3.5 mm Stereo Jack D-Sub15 D-Sub9 (RS232) 3.5 mm Stereo Jack (cable remote control) USB type B
Compatibility	UXGA SXGA SXGA+ WXGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	370 x 440 x 187 mm
Power requirements	100 - 240 V
Power consumption (standby)	24.5 W
Power consumption (typical)	499 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Placement	Ceiling

Weight and Dimensions

Weight	11400 g
Package weight	15900 g
