Computer Input Source Selection

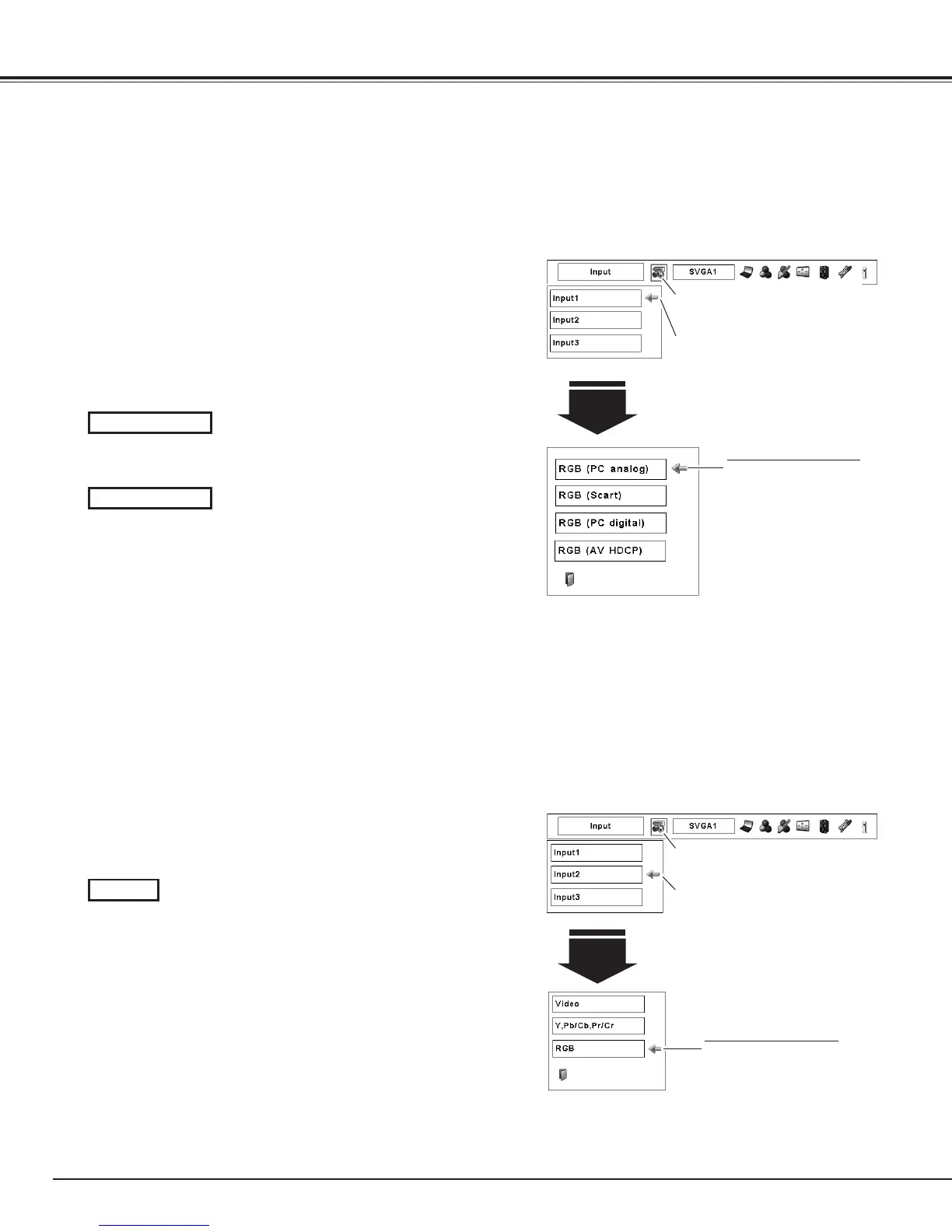

WHEN SELECTING INPUT 1 (COMPUTER INPUT TERMINALS )
Press the MENU button to display the On-Screen Menu. Use
the Point 7 8 buttons to move the red frame pointer to the
INPUT Menu icon.
Use the Point ed buttons to move the red arrow pointer
to the desired input and then press the SELECT button. The
Source Select Menu appears.
1
2
Input 1
INPUT MENU
Use the Point ed buttons to select the desired source and
then press the SELECT button.
3
When your computer is connected to INPUT 1 (DIGITAL)
terminal, select RGB (PC digital).
When your computer is connected to the INPUT 1 (ANALOG)
terminal, select RGB (PC analog).
Move the pointer (red
arrow) to the desired source
and press the SELECT
button.
Source Select Menu
RGB (PC digital)
RGB (PC analog)
✔Note:
•INPUTSOURCEchangesiftheINPUT1buttonontheremote
controlispressed.
•HDCP(High-bandwidthDigitalContentProtection)isasystem
forprotectingdigitalentertainmentcontentwhichisdeliveredby
DVI(DigitalVisualInterface)frombeingcopied.Thespecification
ofHDCPisdecidedandcontrolledbyDigitalContentProtection,
LLC.Shouldthespecificationbechanged,thisprojectormaynot
displaythedigitalcontentprotectedbyHDCP.
Menu Operation
Input Menu icon
Move the pointer (red arrow) to Input
1 and press the SELECT button.
When connecting the computer output [5 BNC Type (Green,
Blue, Red, Horiz. Sync, and Vert. Sync.)] from the computer
to G, B, R, H/HV, and V jacks:
WHEN SELECTING INPUT 2 (5 BNC INPUT JACKS )
INPUT MENU
INPUT Menu icon
Move the pointer (red arrow) to Input
2 and press the SELECT button.
Input 2
Move the pointer (red
arrow) to RGB and press the
SELECT button.
Source Select Menu
Input Selection
When your computer is connected to the INPUT 2 (5 BNC
INPUT JACKS) terminal, select RGB.
RGB
To Next Page
