Monitor Output
BNC
cable

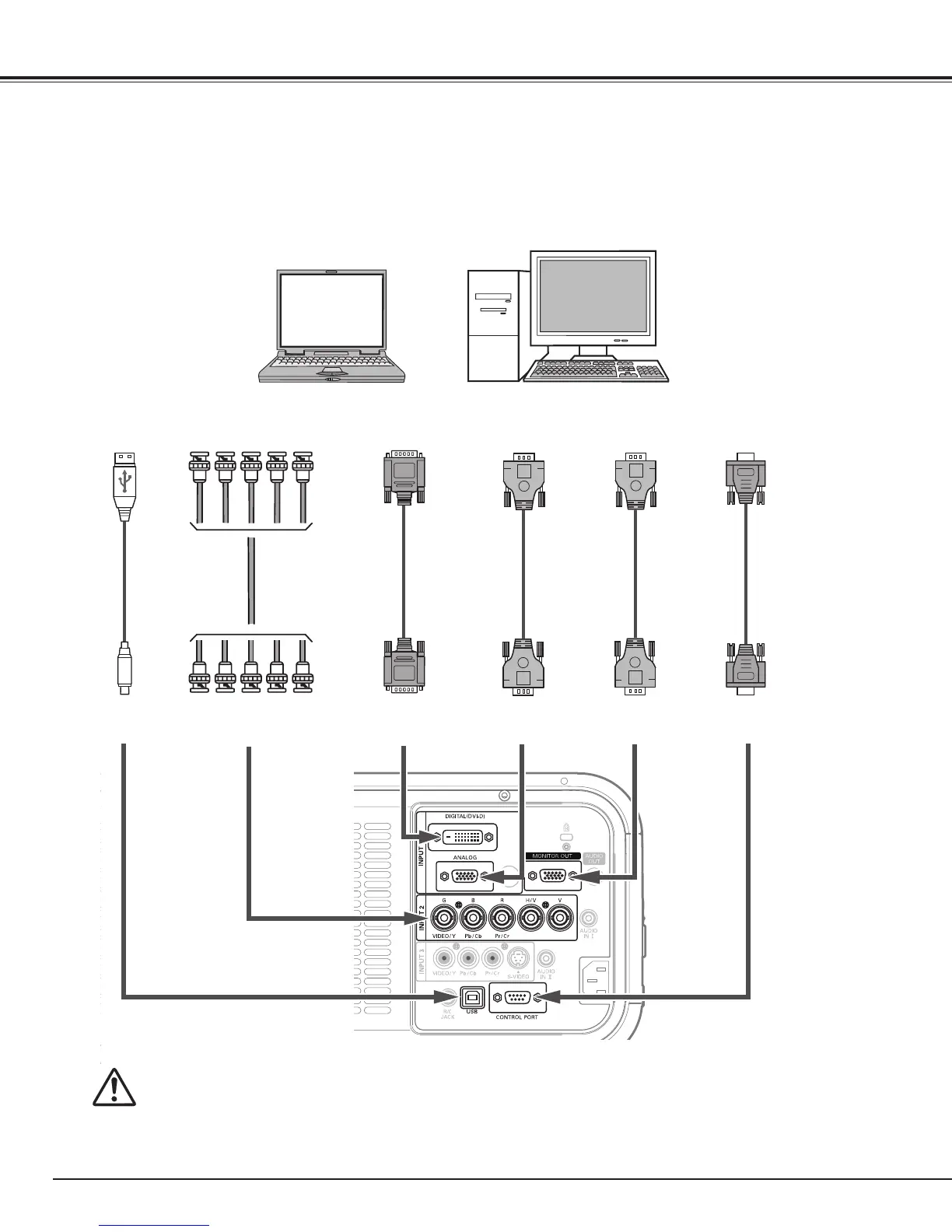

Connecting to a Computer (Digital and Analog RGB)
Monitor Output
G B R H/V V
DVI-Digital
cable
VGA
cable
VGA
cable
USB
cable
USB port
Unplug the power cords of both the
projector and external equipment from
the AC outlet before connecting cables.
Cables used for connection ( = Cables not supplied with this projector.)
VGA Cable (One cable is supplied.)
• DVI-Digital Cable
• BNC Cable
• Serial Cross Cable
• USB Cable
Monitor Output
DIGITAL IN ANALOG IN MONITOR OUTUSB
Serial Cross
cable
Serial out
CONTROL PORT
Installation
See the next page for the signals that can output to the
MONITOR OUT terminal.
