SATEL GSM-X 19

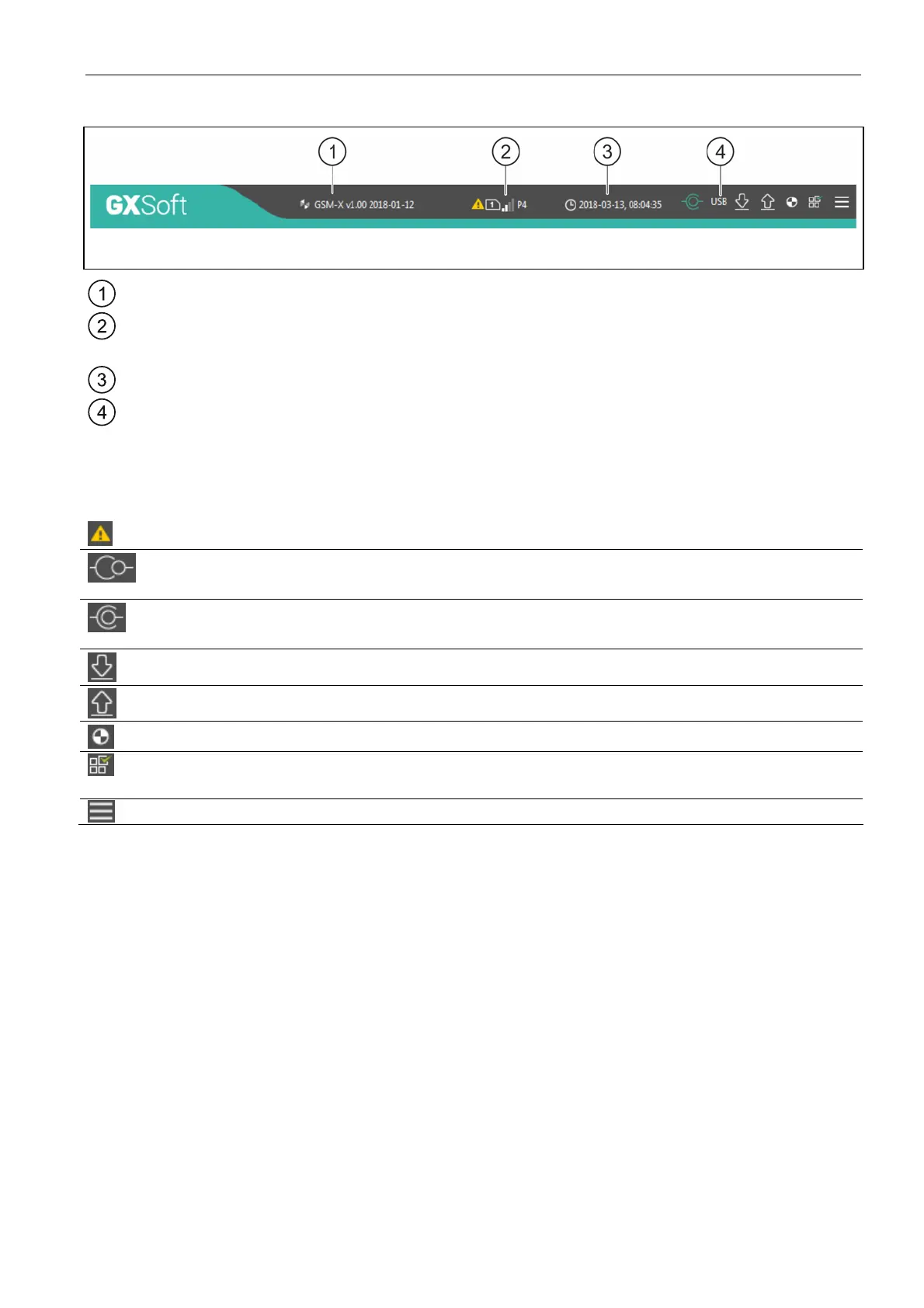

Appearance of the menu bar when displaying the module data
Fig. 18. Appearance of the menu bar after establishing connection with the module.
type of module and firmware version.
information about the SIM card used, GSM signal level and operator of the GSM network
used by the module.
date and time according to the module clock (Greenwich Mean Time (GMT)).
information on the way of communication with the module:
USB – local connection,
TCP – remote connection (GPRS or Ethernet network).
Buttons
click to display the list of troubles.
click to establish connection to the module. The button is displayed when the
program is not connected to the module.
click to finish connection to the module. The button is displayed when the program is
connected to the module.
click to read data from the module.
click to write data to the module.
click to start test transmission to monitoring station.
click to display information on the status of inputs and outputs. The button is active
after connection to the module is established.
click to display additional menu.
7.1.2 Side menu
The side menu is displayed on the left side of the program window. Appearance of the menu
depends on the contents presented in the window.
The side menu before the module data are displayed
New project – click to display the “New project” tab.
Projects – click to display the “Projects” tab.
Import – click to import the file with module settings.
Recent – the list of recently opened files. Click on the name of the file to open it.
“New project” tab
The tab displays the files with default settings of the GSM-X and GPRS-A modules.
“Projects” tab
The tab displays the files saved to the computer disk, containing data of the GSM-X and
GPRS-A modules.

Table of Contents

Other manuals for Satel GSM-X

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Satel GSM-X and is the answer not in the manual?

Satel GSM-X Specifications

GSM-X

Power IconPower
supply voltage12 V DC ±15%
standby current consumption100 mA
maximum current consumption275 mA
Operating Environment IconOperating Environment
operating temperature range-10 to +55°C
maximum humidity93±3%
environmental classII
Weight and Dimensions IconWeight and Dimensions
electronics board dimensions141 x 70 mm
enclosure dimensions126 x 158 x 46 mm
weight255 g

GSM-X-ETH

Power IconPower
standby current consumption25 mA
maximum current consumption25 mA
Operating Environment IconOperating Environment
operating temperature range-10 to +55°C
maximum humidity93±3%
environmental classII
Weight and Dimensions IconWeight and Dimensions
electronics board dimensions61 x 51 mm
weight25 g
