The side menu after the module data are displayed
After the file with module data is opened or connection with the module is established, the
side menu will display buttons which open the tabs used for configuration of the module
settings.
7.1.3 Additional menu
The additional menu is displayed after you click on . Appearance of the menu depends on
the contents presented in the window.
Open – click to display the “Projects” tab.
Save – click to save the module data to the computer disk.
Export – click to export the file with module data.
Connection – click to open the “Connection” window.
Configuration – click to open the “Configuration” window.
About – click to display information about the program.
Licence agreement – click to show the license agreement.
“Connection” window
In the window, you can choose how connection with the module is to be established:
if the module is to be programmed locally from the computer connected to the module
USB port, select “Local connection”,
if the module to be programmed remotely through SATEL server (GPRS or Ethernet, when
the GSM-X-ETH module is connected), select “Remote connection: SATEL server”,
if the module to be programmed remotely (GPRS or Ethernet, when the GSM-X-ETH
module is connected), but the module is to connect directly to the program, select “Remote
connection: Module>>GX Soft”.
Module key – a string of characters for identification of the module. It must be identical to
that programmed in the module (see “Communication” p. 32). Click on to see the key.
Local connection

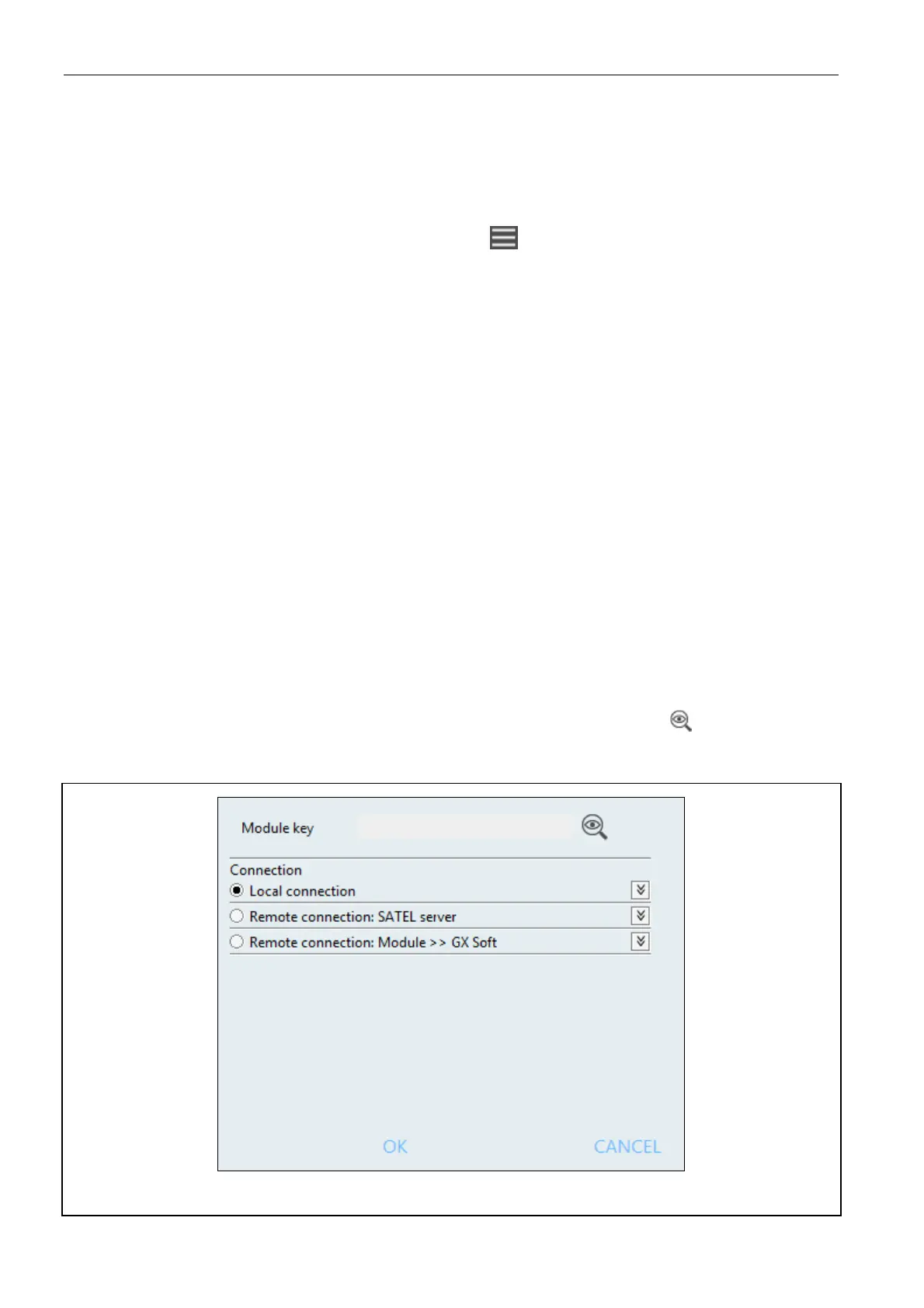

Fig. 19. “Connection” window: local connection settings.
