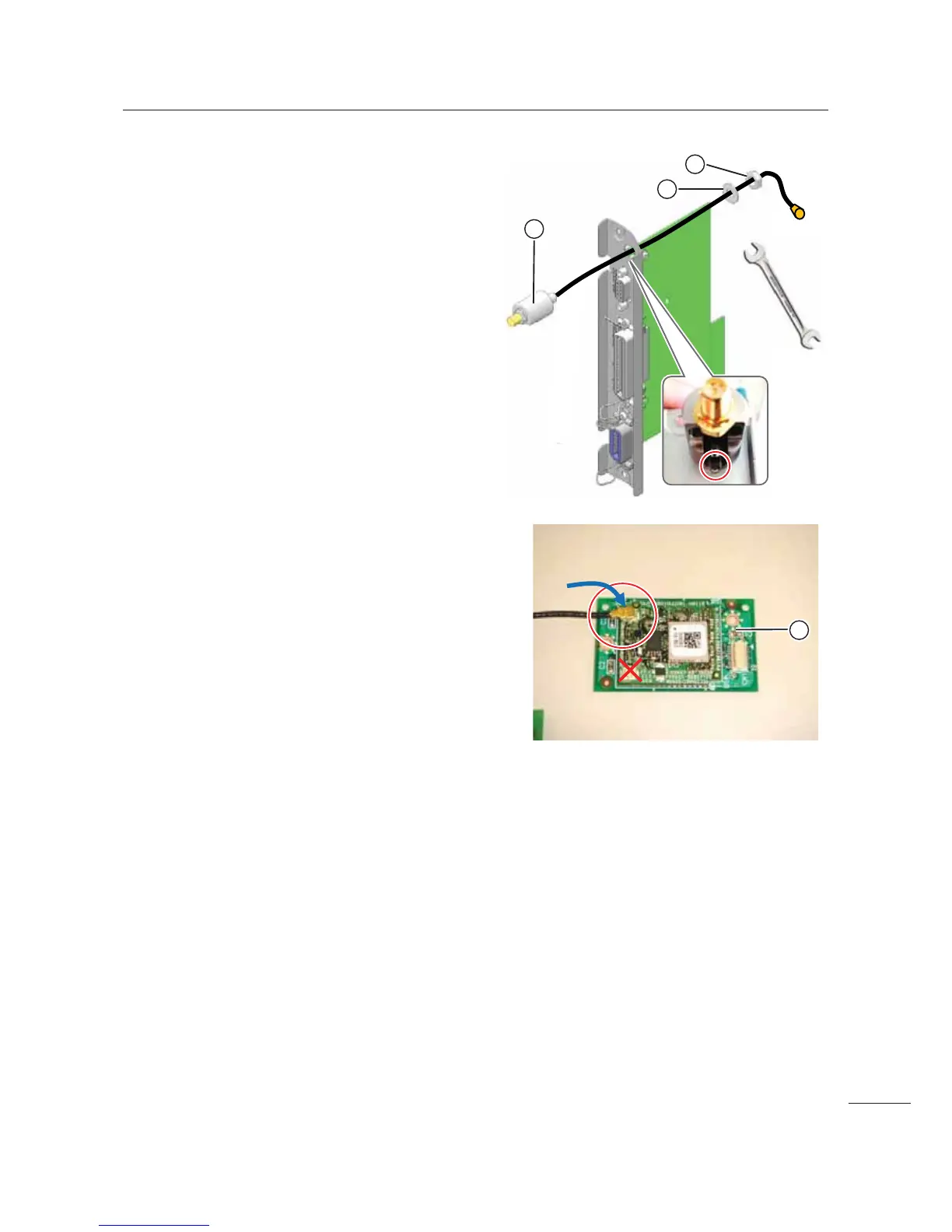

4 Insert the wire of the antenna sub /
through the antenna hole, a washer
1
and a hexagon nut
4.
Set the antenna sub / to match the convex on
the bracket, fix the antenna sub
/ by the
hexagon nut
4 using a wrench.
5 Connect the wire of the antenna sub /
to the CN1 connector on the
WLAN PCB
2.
4
6
5
7
CN1
CN2
