SATO CL6NX - Installation of the Optional Cutter

6 Installation of Options
106
CL4NX/CL6NX Service Manual
6.3 Installation of the Optional Cutter
CAUTION
• Before the installation, be sure to power off the printer and disconnect the power cord.
• Be careful not to touch the cutter blade.
Required tools:
• Phillips screwdriver (JIS #2 or equivalent)

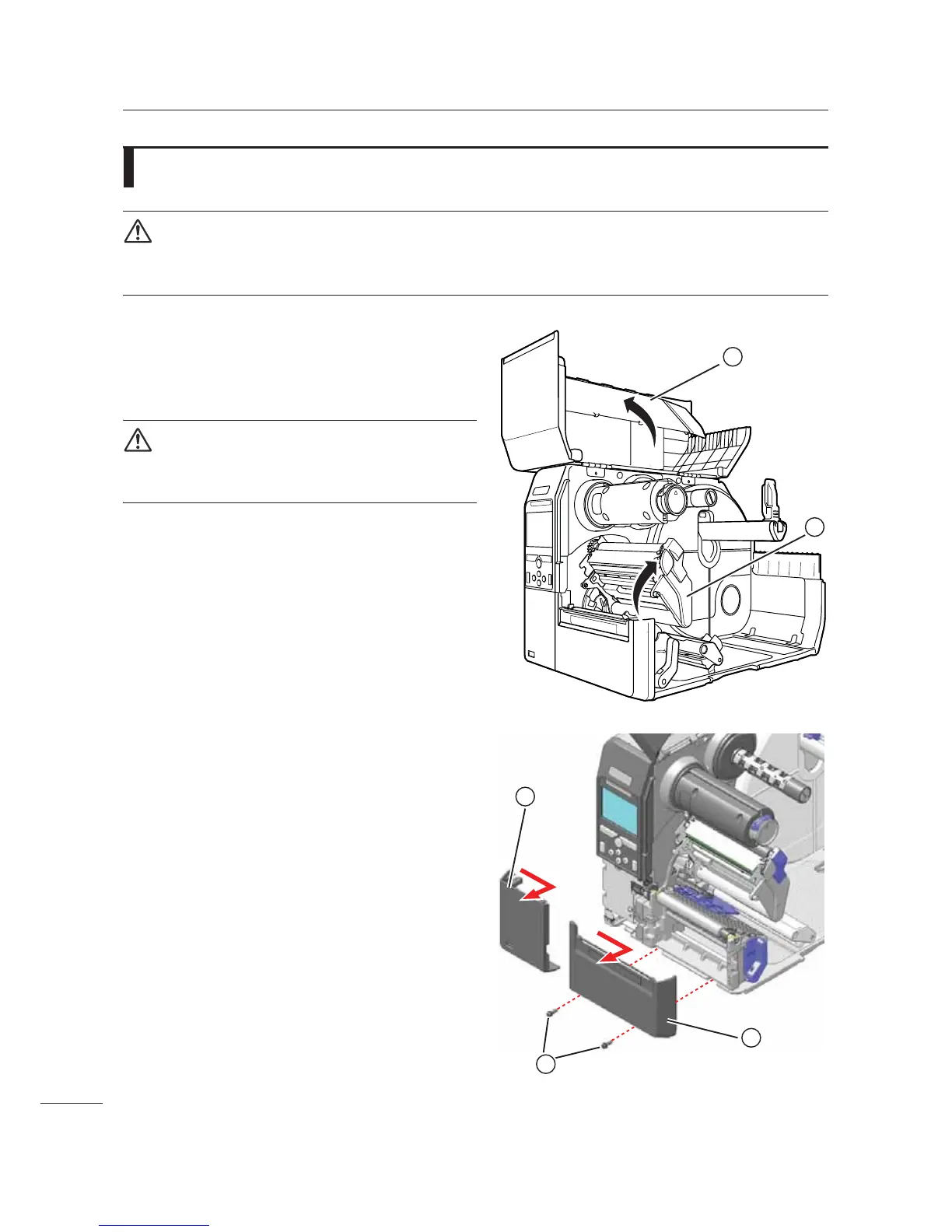

1 Open the top cover . and print head 3.
CAUTION
Open the top cover fully to prevent accidental drop of
the cover.
2 Remove two screws $ and the
front covers
/and 1.
Slide in the arrow direction to remove the front
covers.
1
2
4
5
3
