CL4NX/CL6NX Service Manual

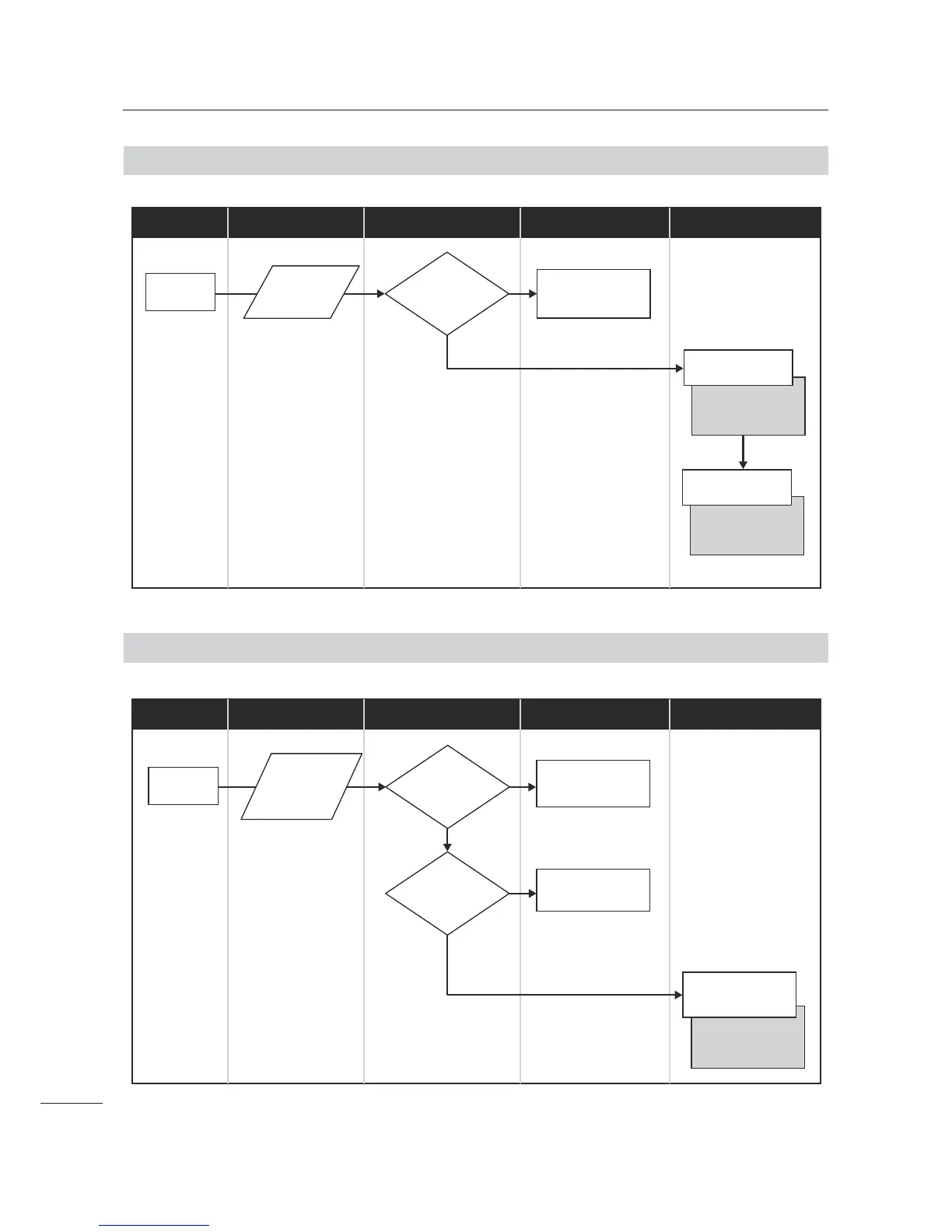

3.1.4 Screen Problem
3.1.5 Media Problem
Category
Symptom
Cause Remedy
Maintenance
Screen
No display
on the screen
Replace the
KB PCB
Connect the
LCD cable
NO
Is the
LCD cable
connected?
YES
Replace the
CONT PCB
Refer to 5.6
Replacing the KB
PCB
Refer to 5.5
Replacing the Main
(CONT) PCB
Category
Symptom
Cause Remedy
Maintenance
NO
Is the
media installed
correctly?
YES
Install the
media correctly
NO
Is the
platen roller
clean?
Clean the
platen roller
Replace the
platen roller
YES
Media
Media is
meandering
Refer to 5.3
Replacing the
Platen Roller
