SATO CL6NX Service Manual

6 Installation of Options
150
CL4NX/CL6NX Service Manual

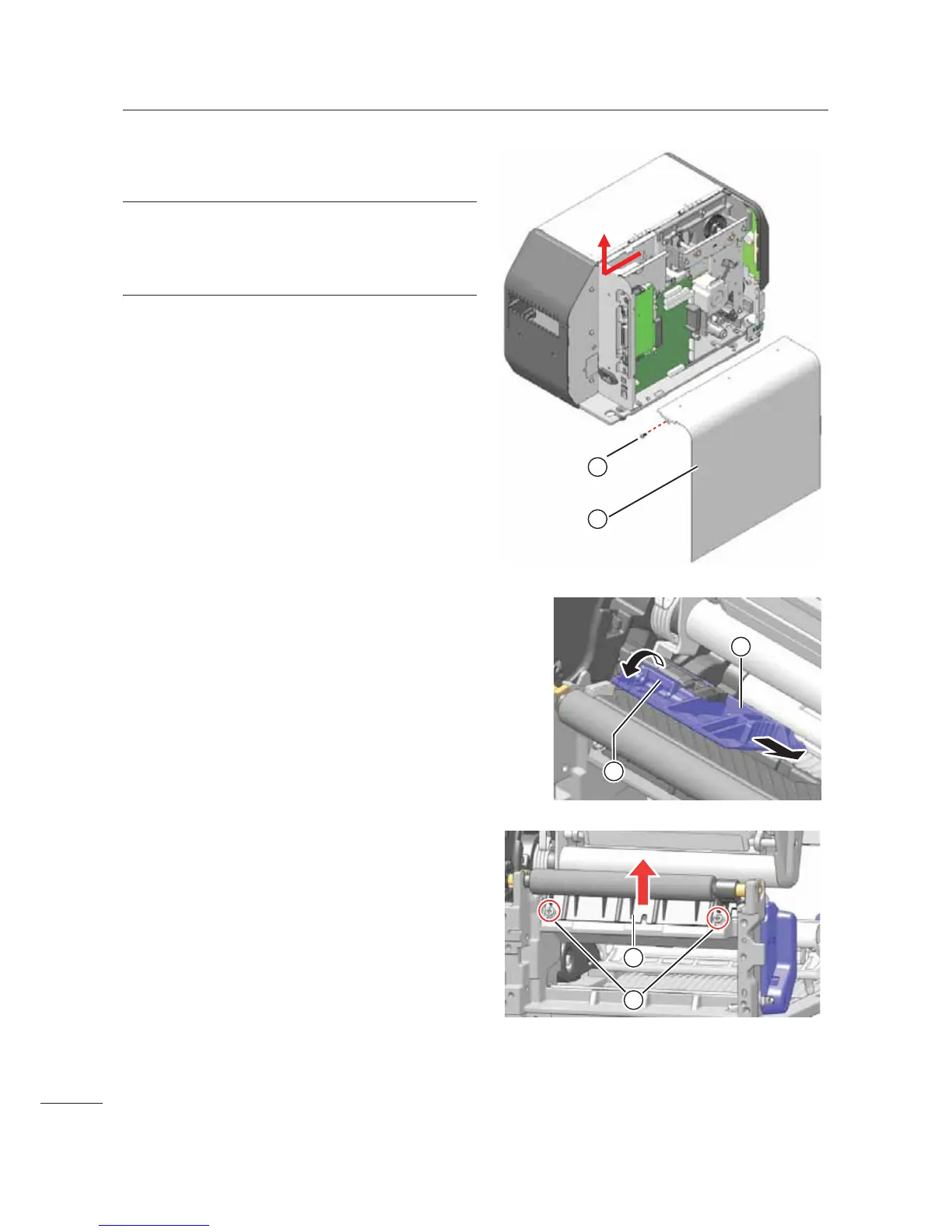

3 Remove the screw 4, slide and lift to
remove the left housing cover
2.
Note
When removing the left housing cover, make sure that
the cover does not touch the PCB, causing the
components of the PCB to be deformed.
4 Tilt the sensor guide lock ( down and
pull out the media sensor guide
,.
5 Remove two screws " and the
media guard
0.
Make sure that the sensor holder is pushed to
the innermost position before you remove the
media guard. Lift the front of the media guard to
remove it.
7
6
Slide
& Lift
8
9
10
11

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
