4 Checking and Performing Printer Adjustments
37
CL4NX/CL6NX Service Manual

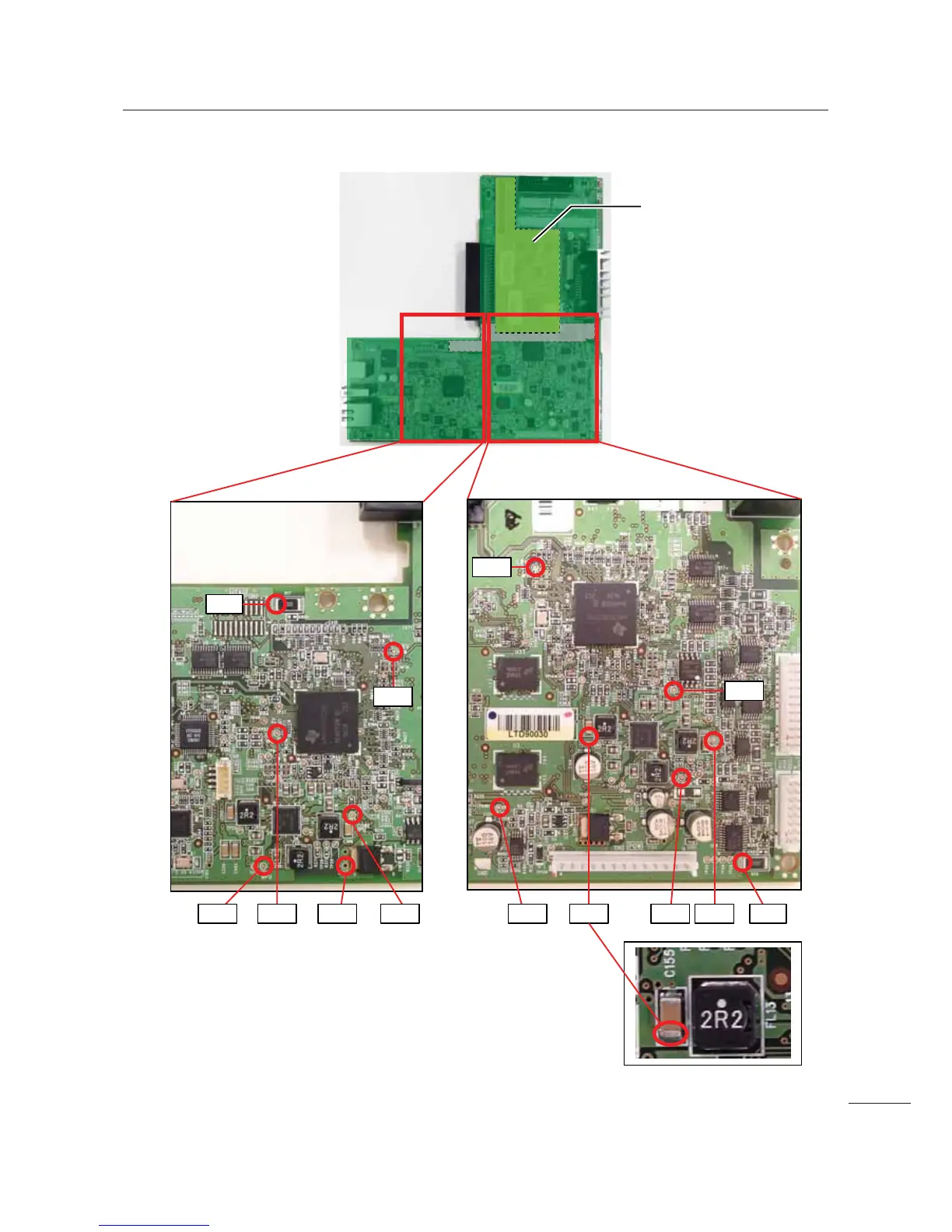

Position of the test points
Figure 4.1
Main (CONT) PCB
GND
(Enlarged) (Enlarged)
1.8V
TP16
TP13 TP5 5VC TP12
GND
TP47TP7
TP26
TP46
TP50
Note:
For CL6NX printer, the
FPGA PCB assembly
blocks the [TP50] point.
Use the [1.8V] test point to
measure the voltage of
+1.8 V.
FPGA PCB assembly
(CL6NX only)
