SATO FX3-LX - Page 25

25

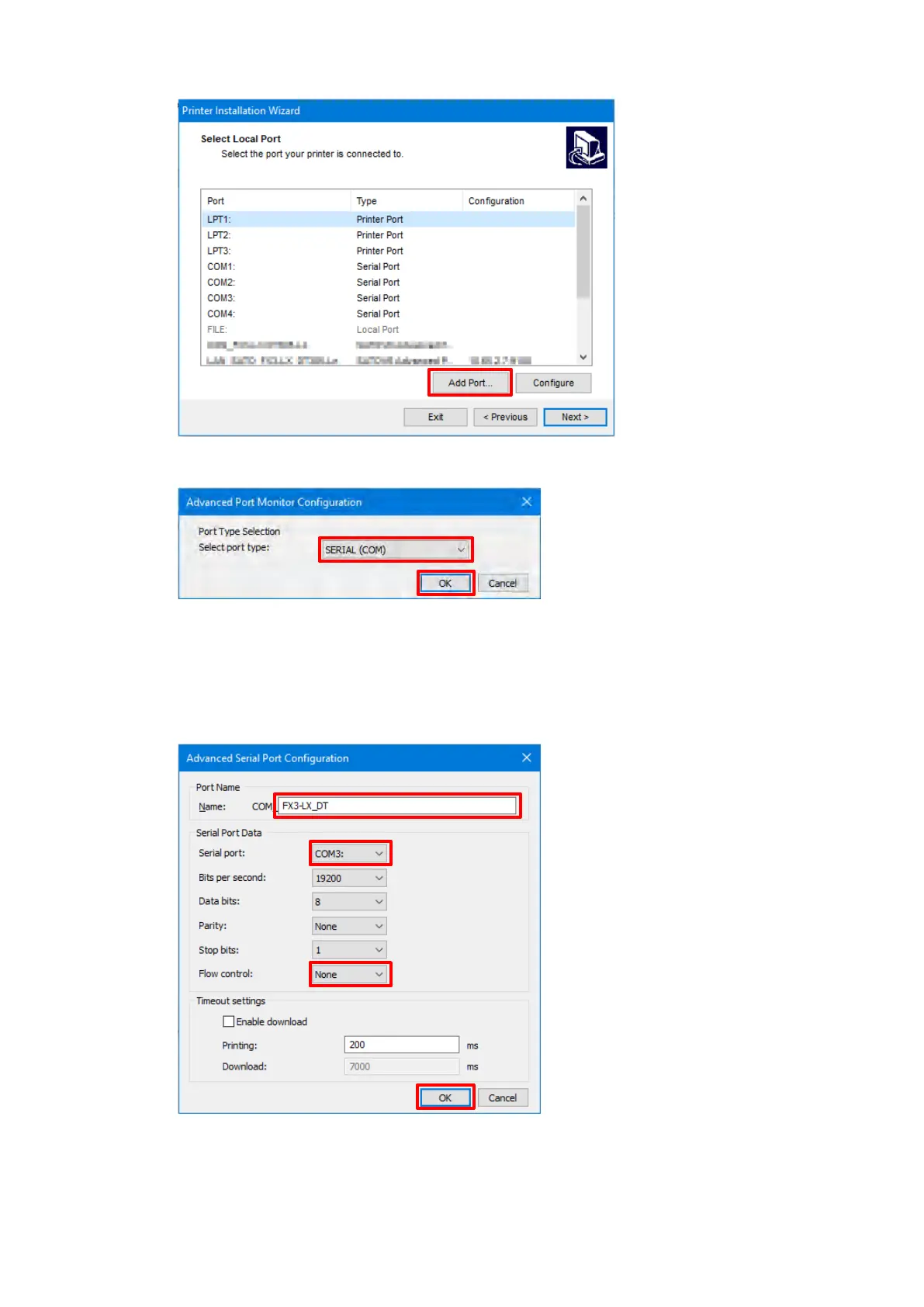

Click [Add Port]. 8.
Select [SERIAL (COM)] for [Select port type] and click [OK]. 9.
Configure the port settings and click [OK]. 10.
Configure the following settings:
[Port name]: Enter a name (E.g., FX3-LX_DT)
[Serial port]: Select the port you checked in step 2.
[Flow control]: Select [None].
