SATO FX3-LX Driver Manual

75

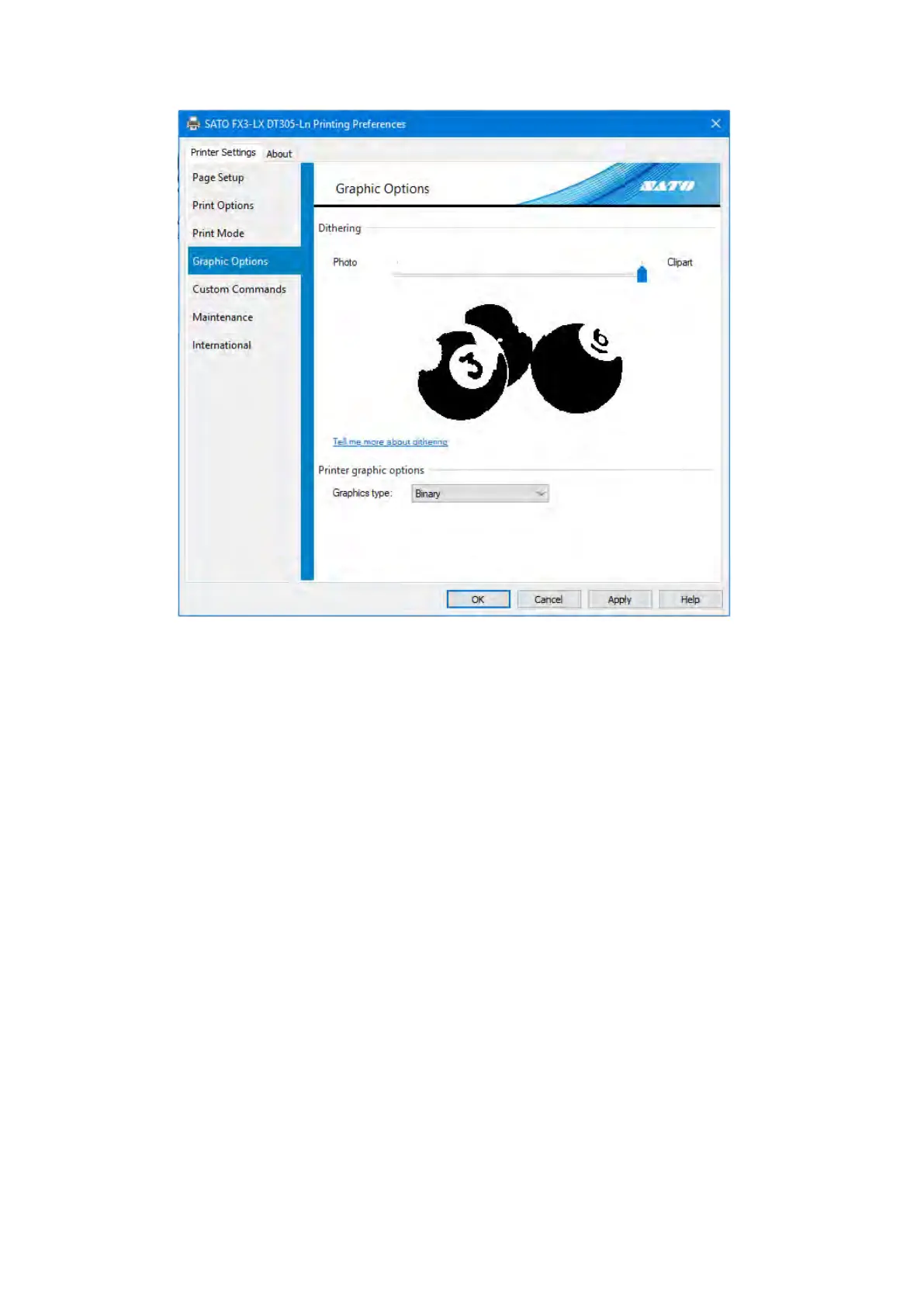

Graphic Options 4.4
Dithering
Dithering is the process of expressing image gradation (for color or grayscale images) in the
current image for thermal printers that can only express two colors, black and white, by
juxtaposing pixels with a certain algorithm to create the illusion of half-tone. Select the dithering
algorithm with this setting. You can view the result of applying the algorithm on the preview
image. The size of the sent data will also change according to the setting. When considering the
operational throughput, check the data size for each setting as well.
Printer graphic options
Specify the data format to send the graphics data to the printer. Normally, specify [Binary].

SATO FX3-LX Specifications

General

Cutter	Yes
Certification	EN55032, EN55024, EN61000-3-2 / 3-3, EN300 330-2 / -1, EN301 489-1 / -3 / -17, FCC Part15 Subpart B, ICES 003 UL60950-1, CSA C22.2 No.60950-1, IEC/EN60950-1 FCC Part15 Subpart C/E, ISED RSS-Gen, ISED RSS-247, EN 300 328, EN 301 893
Built-in barcodes	AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, GS1-128, Industrial 2/5, Interleaved 2/5, Matrix 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in RFID module	No
Maximum resolution	- DPI
Maximum print height	500 mm
Maximum printing width	80 mm
Battery voltage	14.4 V
AC input voltage	100 - 240 V
Battery capacity	1950 mAh
AC input frequency	50 / 60 Hz
Suitable for use in country/location	Europe
Sustainability certificates	ENERGY STAR
Display	LCD
Control type	Touch
Product color	White
Display diagonal	7 \
Display resolution	480 x 800 pixels
International Protection (IP) code	IPX2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.1
USB 2.0 ports quantity	4
Connectivity technology	Wired & Wireless
Media thickness	0.14 - 0.19 mm
Maximum roll diameter	105 mm
Storage temperature (T-T)	-5 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 75 %
Cables included	AC
Quantity per pack	1 pc(s)
Languages support	Multi

Weight and Dimensions

Depth	225 mm
Width	132 mm
Height	180 mm
Weight	3000 g
