45

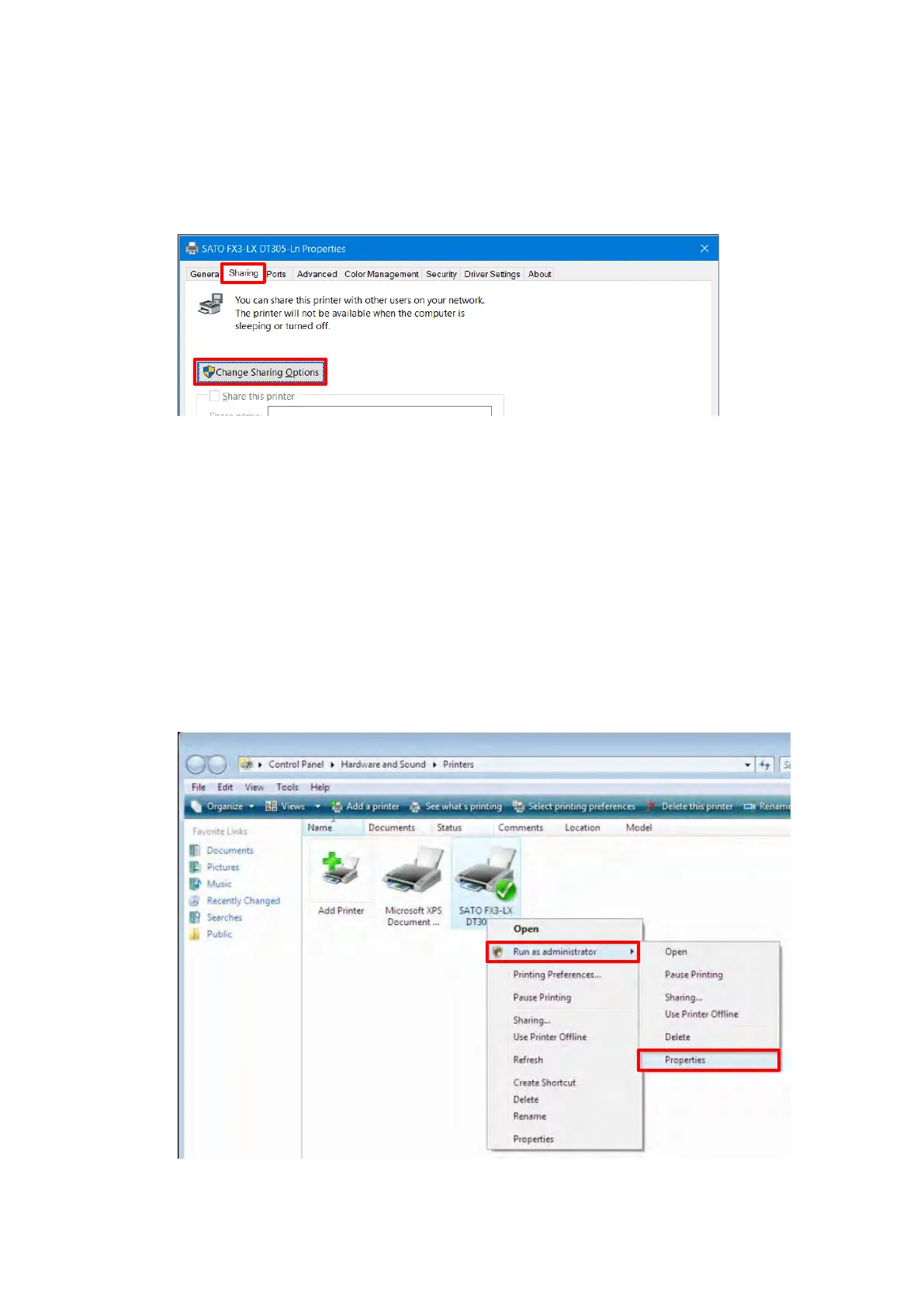

How to get administrator privileges 2.2
To change settings, and add and change ports, administrator privileges are required.
Procedure on OSs other than Windows Server 2008
Open [Devices and Printers], right-click the desired printer, and select [Printer properties]. 1.
Click the [Sharing] tab and then [Change Sharing Options]. 2.
The [Printer Properties] screen will appear with administrator privileges.
What to do if [Change Sharing Options] is not displayed
Perform the procedure below to display the button. This procedure is performed in Windows 10
as an example. Depending on the settings of the Windows version that you are using, the menu
layout may be different. You may also not be able to change settings.
Open Start icon > [All apps] > [Windows System] > [Control Panel] > [Choose homegroup a.
and sharing options] or [HomeGroup] > [Change advanced sharing settings].
Under [File and printer sharing] in [Home or Work (or Public or Domain) (current profile)], b.
select [Turn off file and printer sharing], and then click [Save changes].
Procedure on Windows Server 2008
Open [Printers], right-click the desired printer, and select [Run as administrator] > [Properties]. 1.

Other manuals for SATO FX3-LX

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the SATO FX3-LX and is the answer not in the manual?

SATO FX3-LX Specifications

General IconGeneral
CutterYes
CertificationEN55032, EN55024, EN61000-3-2 / 3-3, EN300 330-2 / -1, EN301 489-1 / -3 / -17, FCC Part15 Subpart B, ICES 003 UL60950-1, CSA C22.2 No.60950-1, IEC/EN60950-1 FCC Part15 Subpart C/E, ISED RSS-Gen, ISED RSS-247, EN 300 328, EN 301 893
Built-in barcodesAZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, GS1-128, Industrial 2/5, Interleaved 2/5, Matrix 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in RFID moduleNo
Maximum resolution- DPI
Maximum print height500 mm
Maximum printing width80 mm
Battery voltage14.4 V
AC input voltage100 - 240 V
Battery capacity1950 mAh
AC input frequency50 / 60 Hz
Suitable for use in country/locationEurope
Sustainability certificatesENERGY STAR
DisplayLCD
Control typeTouch
Product colorWhite
Display diagonal7 \
Display resolution480 x 800 pixels
International Protection (IP) codeIPX2
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version4.1
USB 2.0 ports quantity4
Connectivity technologyWired & Wireless
Media thickness0.14 - 0.19 mm
Maximum roll diameter105 mm
Storage temperature (T-T)-5 - 60 °C
Operating temperature (T-T)5 - 35 °C
Storage relative humidity (H-H)30 - 90 %
Operating relative humidity (H-H)30 - 75 %
Cables includedAC
Quantity per pack1 pc(s)
Languages supportMulti
Weight and Dimensions IconWeight and Dimensions
Depth225 mm
Width132 mm
Height180 mm
Weight3000 g
