SATO FX3-LX Driver Manual

65
Configure Printer 3.4
You can acquire and change the settings of the printer connected to the computer. To use this feature,
the printer needs to be available for printing from the computer using the printer driver.
Note that the [Configure Printer] settings are not related to the printer driver settings.

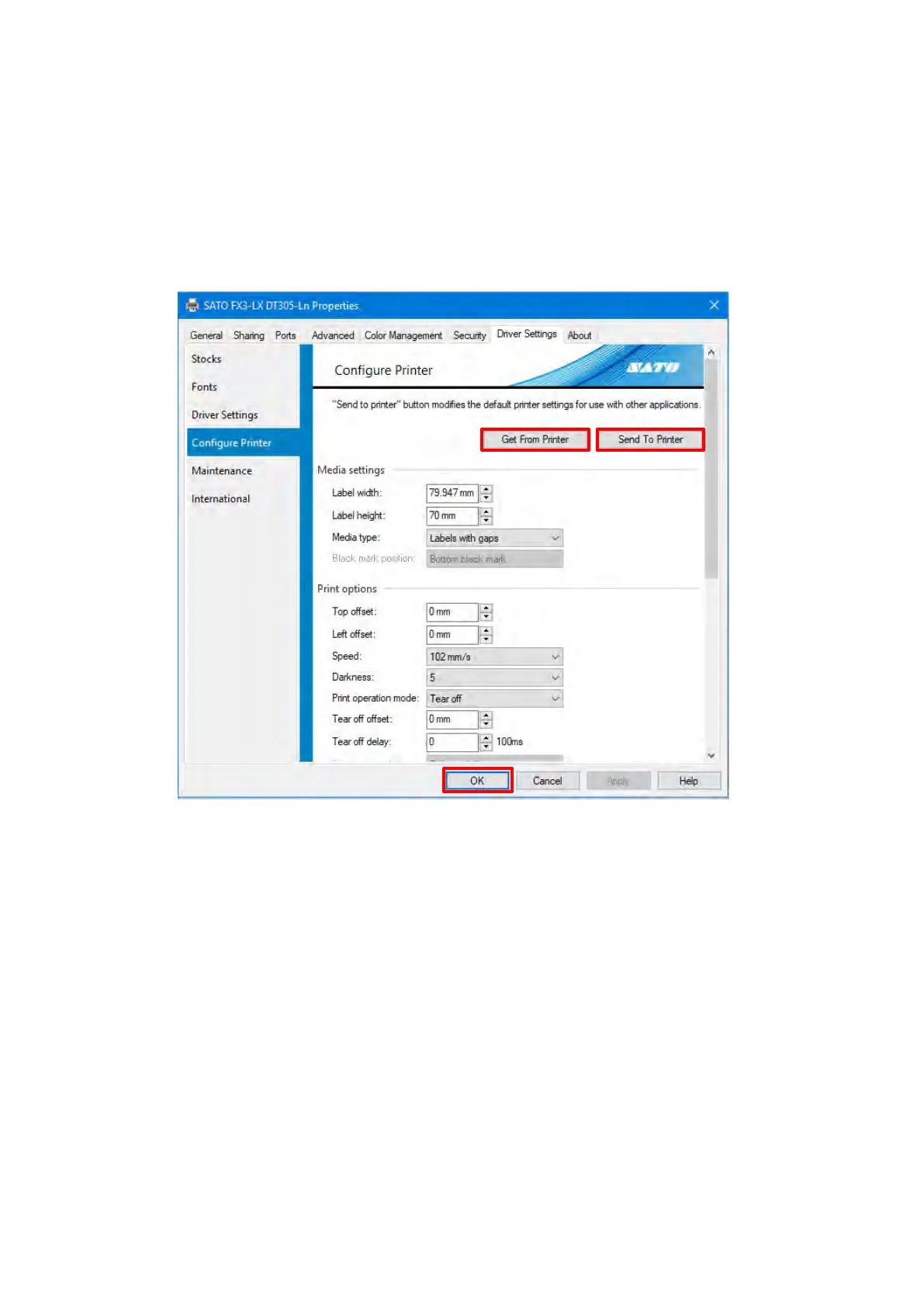

Open [Devices and Printers], right-click the desired printer, and select [Printer properties]. 1.
Click [Get From Printer]. 2.
If you successfully acquire the settings from the printer, the settings change to match those of
the printer settings.
Change the settings as necessary. 3.
Click [Send To Printer]. 4.
The settings are sent to the printer. You can click [Get From Printer] again to confirm that the
settings have been applied to the printer.
Click [OK]. 5.
The screen closes.

SATO FX3-LX Specifications

General

Cutter	Yes
Certification	EN55032, EN55024, EN61000-3-2 / 3-3, EN300 330-2 / -1, EN301 489-1 / -3 / -17, FCC Part15 Subpart B, ICES 003 UL60950-1, CSA C22.2 No.60950-1, IEC/EN60950-1 FCC Part15 Subpart C/E, ISED RSS-Gen, ISED RSS-247, EN 300 328, EN 301 893
Built-in barcodes	AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, GS1-128, Industrial 2/5, Interleaved 2/5, Matrix 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in RFID module	No
Maximum resolution	- DPI
Maximum print height	500 mm
Maximum printing width	80 mm
Battery voltage	14.4 V
AC input voltage	100 - 240 V
Battery capacity	1950 mAh
AC input frequency	50 / 60 Hz
Suitable for use in country/location	Europe
Sustainability certificates	ENERGY STAR
Display	LCD
Control type	Touch
Product color	White
Display diagonal	7 \
Display resolution	480 x 800 pixels
International Protection (IP) code	IPX2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.1
USB 2.0 ports quantity	4
Connectivity technology	Wired & Wireless
Media thickness	0.14 - 0.19 mm
Maximum roll diameter	105 mm
Storage temperature (T-T)	-5 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 75 %
Cables included	AC
Quantity per pack	1 pc(s)
Languages support	Multi

Weight and Dimensions

Depth	225 mm
Width	132 mm
Height	180 mm
Weight	3000 g
