SATO FX3-LX Driver Manual

82
Installing the Printer Driver on the Print Server and Client 5.1
Computers
Download the printer driver from the SATO download site and install the printer driver on the print
server and client computers. Install the printer driver on all applicable computers.
Downloading the printer driver
Download the printer driver from the SATO download site.
For details, refer to "1.1 Preparing the Printer Driver."
Installing the printer driver on the print server
Connect the printer to the computer and install the printer driver.
For details of how to connect the printer, refer to "1.2 Connecting the Printer to the Computer."
Printer driver installation differs depending on how the printer is connected. For details, refer to "1.3
Running the Installation."
Installing the printer driver on the client computers
Prepare the printer driver in the same manner as the print server and follow the procedure below to
install the printer driver. The procedure uses Windows 10 as an example.

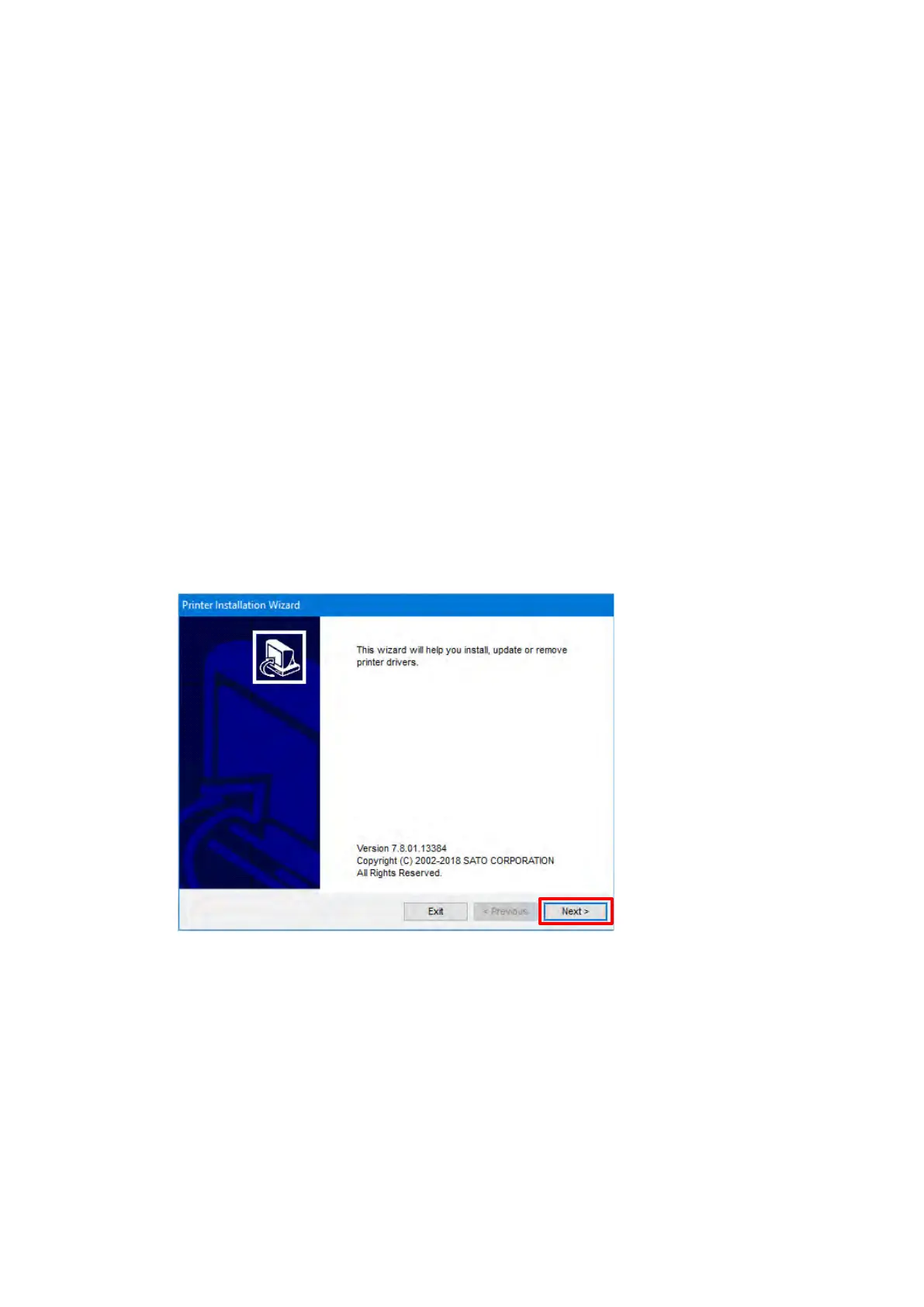

Double-click PrnInst.exe. 1.
The printer installation wizard starts.
Click [Next]. 2.

SATO FX3-LX Specifications

General

Cutter	Yes
Certification	EN55032, EN55024, EN61000-3-2 / 3-3, EN300 330-2 / -1, EN301 489-1 / -3 / -17, FCC Part15 Subpart B, ICES 003 UL60950-1, CSA C22.2 No.60950-1, IEC/EN60950-1 FCC Part15 Subpart C/E, ISED RSS-Gen, ISED RSS-247, EN 300 328, EN 301 893
Built-in barcodes	AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, GS1-128, Industrial 2/5, Interleaved 2/5, Matrix 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in RFID module	No
Maximum resolution	- DPI
Maximum print height	500 mm
Maximum printing width	80 mm
Battery voltage	14.4 V
AC input voltage	100 - 240 V
Battery capacity	1950 mAh
AC input frequency	50 / 60 Hz
Suitable for use in country/location	Europe
Sustainability certificates	ENERGY STAR
Display	LCD
Control type	Touch
Product color	White
Display diagonal	7 \
Display resolution	480 x 800 pixels
International Protection (IP) code	IPX2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.1
USB 2.0 ports quantity	4
Connectivity technology	Wired & Wireless
Media thickness	0.14 - 0.19 mm
Maximum roll diameter	105 mm
Storage temperature (T-T)	-5 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 75 %
Cables included	AC
Quantity per pack	1 pc(s)
Languages support	Multi

Weight and Dimensions

Depth	225 mm
Width	132 mm
Height	180 mm
Weight	3000 g
