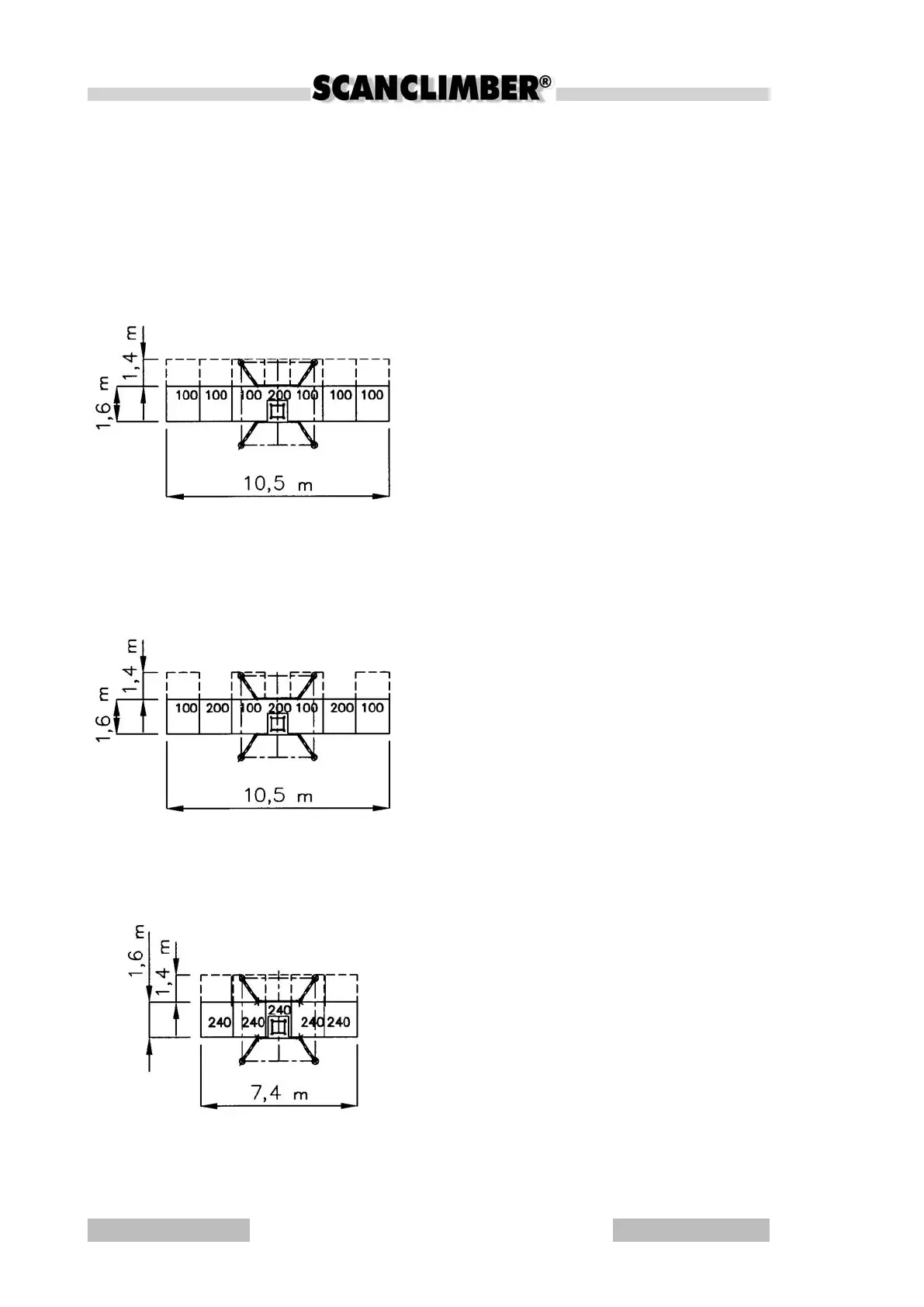

3. FREESTANDING WITH TELESCOPIC EXTENSIONS
MAX. WIND SPEED 12,7 m/s
LOAD MUST BE EVENLY DISTRIBUTED
LOAD P=800 kg
HEIGHT H=15 m
LENGTH L=10,5 m
WIDTH B=1,6 m
TELESCOPIC
EXTENSION b=1,4 m
OUTRIGGERS NOT EXTENDED, ON BOTH
SIDES TURNED OUT.
JACKS SCREWED DOWN.
LOAD P=1000 kg
HEIGHT H=15 m
LENGTH L=10,5 m
WIDTH B=1,6 m
TELESCOPIC
EXTENSION b=1,4 m
OUTRIGGERS NOT EXTENDED, ON BOTH
SIDES TURNED OUT.
JACKS SCREWED DOWN.
LOAD P=1200 kg
HEIGHT H=15 m
LENGTH L=7,4 m
WIDTH B=1,6 m
TELESCOPIC
EXTENSION b=1,4 m
OUTRIGGERS NOT EXTENDED, ON BOTH
SIDES TURNED OUT.
JACKS SCREWED DOWN.
Vto 950420
VS401259
3.
2.
1.
1000 kg
800 kg
1200 kg
