SCANCLIMBER SC4000 - Page 47

Safety regulations
11
SC4000 Pos 3
V23C_09.13

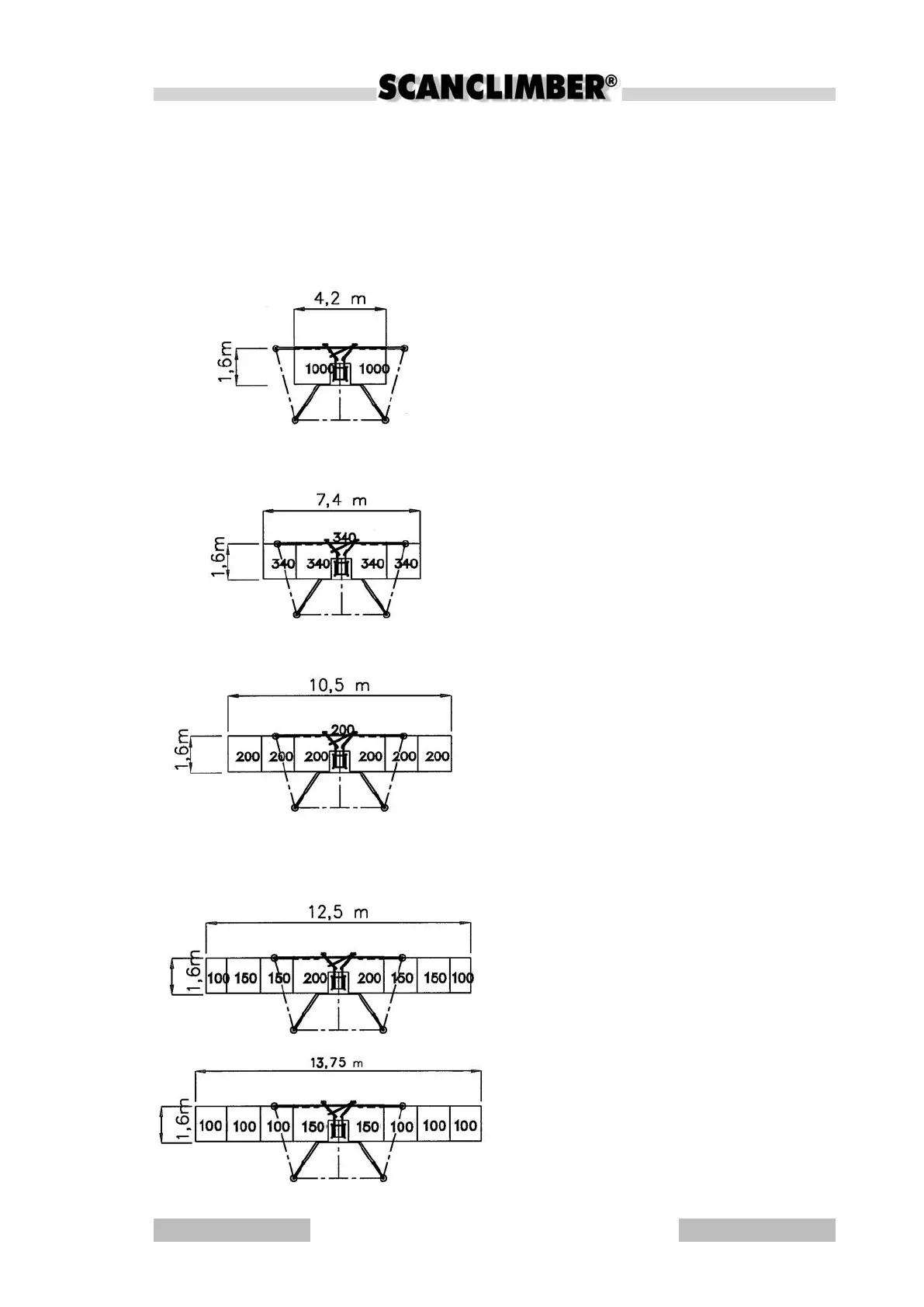

LOAD P=1400 kg
HEIGHT H=25 m
LENGTH L=10,5 m
WIDTH B=1,6 m
ALL OUTRIGGERS EXTENDED AND ON
MAST SIDE TURNED OUT.
JACKS SCREWED DOWN.
4. TOP ANCHORED MAST
MAX. WIND SPEED 15,5 m/s
LOAD MUST BE EVENLY DISTRIBUTED
MAX. ALLOWED WIND SPEED 8,0 m/s DUR
ING ERECTION AND DISMANTLING. TOP
ANCHOR MUST BE ASSEMBLED AFTER
ERECTION.
THE PLATFORM LENGHT MUST BE 4,2 m
WHEN ASSEMBLING OR DISASSEMBLING
THE MAST.
LOAD P=2000 kg
HEIGHT H=25 m
LENGTH L=4,2 m
WIDTH B=1,6 m
ALL OUTRIGGERS EXTENDED AND ON
MAST SIDE TURNED OUT.
JACKS SCREWED DOWN.
LOAD P=1700 kg
HEIGHT H=25 m
LENGTH L=7,4 m
WIDTH B=1,6 m
ALL OUTRIGGERS EXTENDED AND ON
MAST SIDE TURNED OUT.
JACKS SCREWED DOWN.
LOAD P=1200 kg
HEIGHT H=25 m
LENGTH L=12,5 m
WIDTH B=1,6 m
ALL OUTRIGGERS EXTENDED AND ON
MAST SIDE TURNED OUT.
JACKS SCREWED DOWN.
LOAD P=900 kg
HEIGHT H=25 m
LENGTH L=13,75 m
WIDTH B=1,6 m
ALL OUTRIGGERS EXTENDED AND ON
MAST SIDE TURNED OUT.
JACKS SCREWED DOWN.
Mpi 950504
VS440276
4.
3.
2.
1.
1200 kg
1400 kg
1700 kg
2000 kg
900 kg
