SCANCLIMBER SC4000 - Page 48

Safety regulations
12
V23C_09.13
SC4000 Pos 3

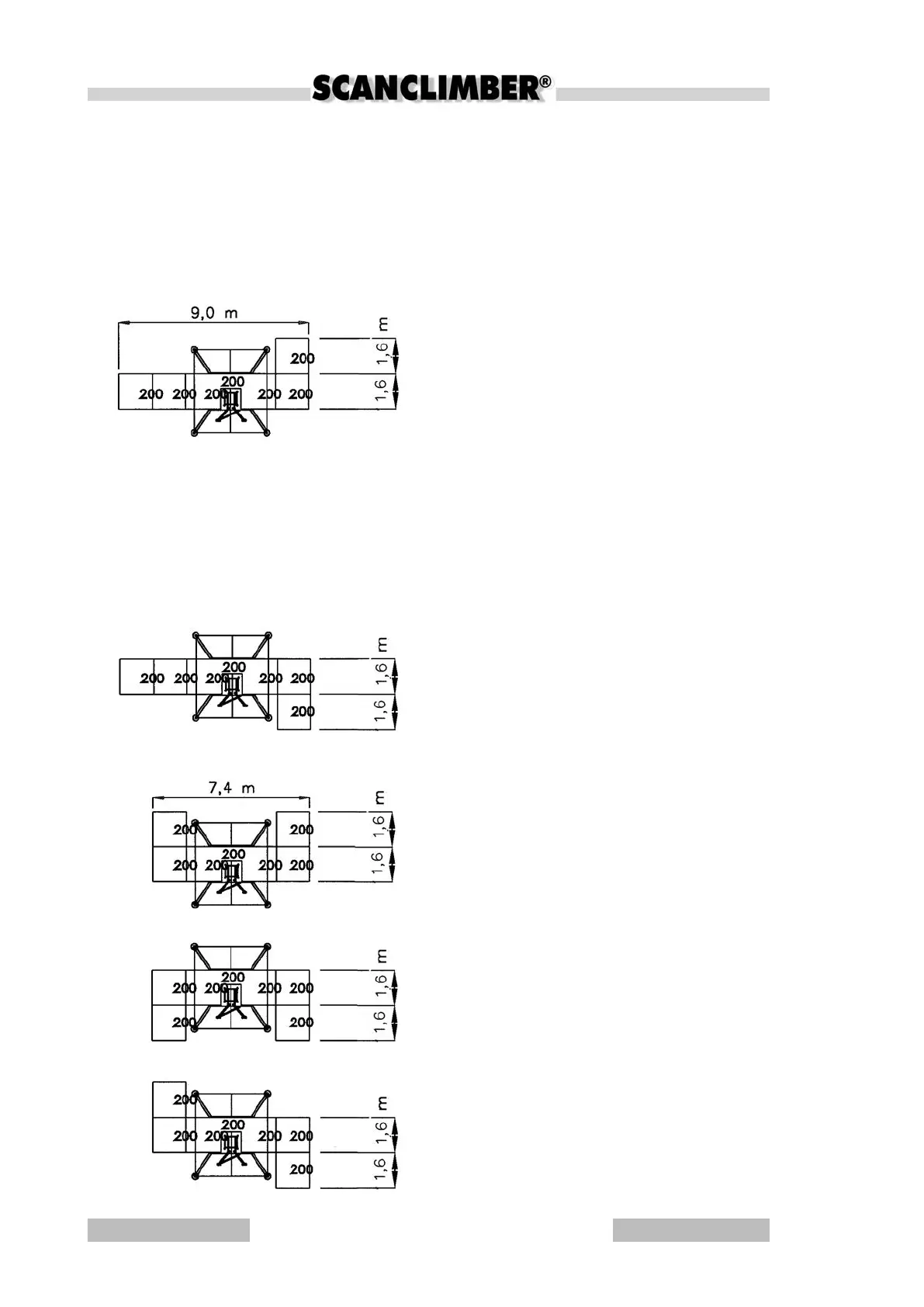

5. ANCHORED MAST WITH SIDE-PLATFORMS
5.1. OUTRIGGERS TURNED OUT
MAX. WIND SPEED 15,5 m/s
LOAD MUST BE EVENLY DISTRIBUTED
LOAD P=1400 kg
HEIGHT H=100 m
LENGTH L=9/7,4 m
WIDTH B=1,6 m
SIDE
PLATFORM b=1,6 m
WALL ANCHORING ACCORDING TO
INSTRUCTIONS.
OUTRIGGERS NOT EXTENDED.
ON BOTH SIDES TURNED OUT.
JACKS SCREWED DOWN.
Mpi 950504
VS440278
1.
2.
3.
4.
5.
1400 kg
1400 kg
1400 kg
1400 kg
