Schiller ARGUS LCM PLUS - Pacemaker Monitoring; Pacemaker Monitoring with HF-ECG Cable

4 Start monitoring
4.2 ECG monitoring
Page 26
Art. no.: 2.510474 rev.: d
ARGUS LCM/PLUS
4.2.2 Pacemaker monitoring
4.2.3 Pacemaker monitoring with HF-ECG cable
Pacemaker monitoring with HF-ECG cable against high frequncy signals is not pos-
sible. The used pacemaker impulse will be filtered by the HF protection in the ECG
cable.

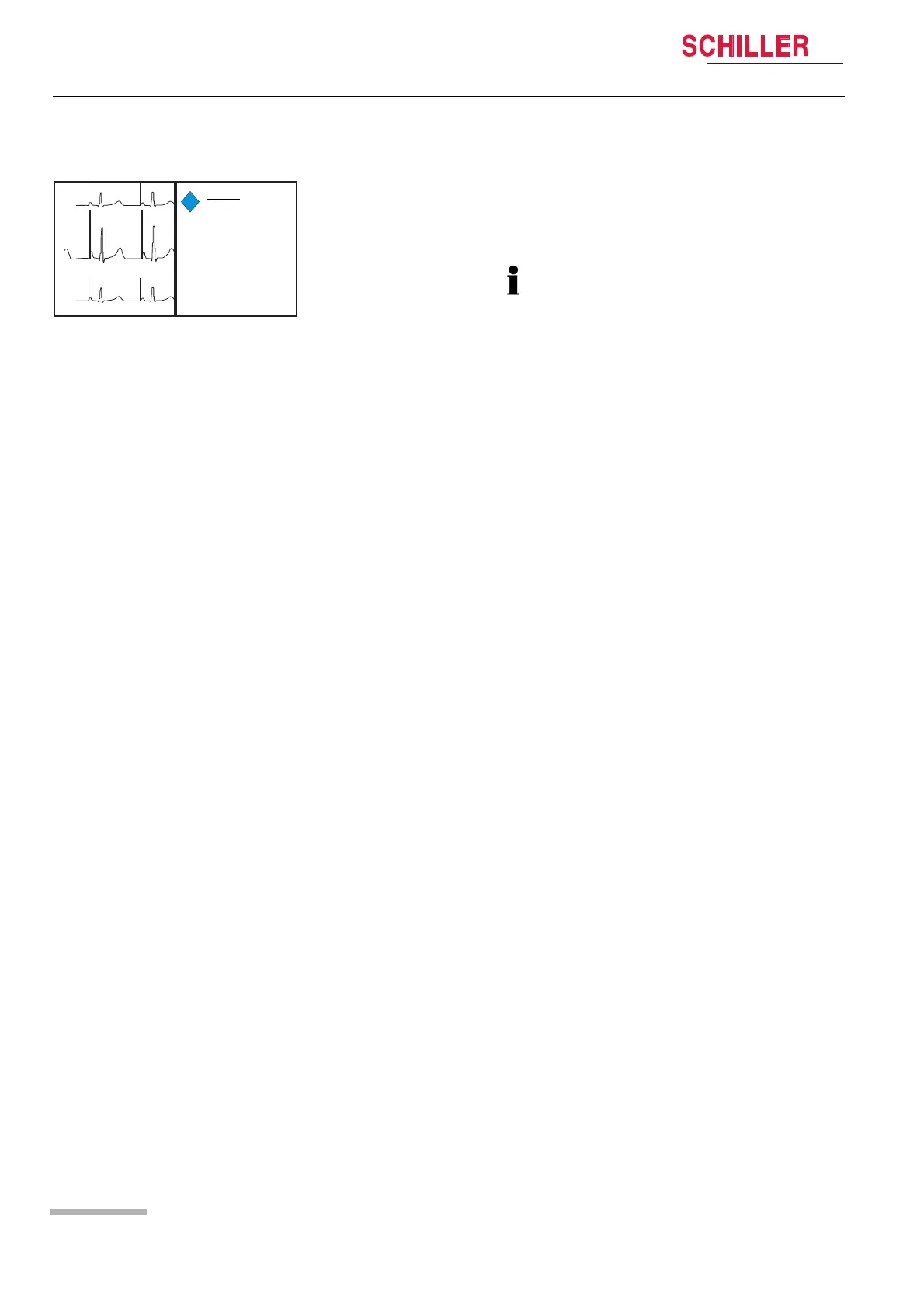

Set the PM monitoring in the menue ECG/Pacemaker On to display the pacemaker
pulses as vertical lines (1) on the ECG display. When pacemaker signals are detect-
ed, the heart symbole is replaced by a diamond (2). These vertical lines represent
neither magnitude nor duration of the pacemaker pulse but are purely time relative.
The RRi curve field is switched of when Pacemaker detection is on.
HF 60
/ min
PM On
2
1
1
1
