7.3.4 3p-lead cable
The ARGUS LCM BASIC Serial number > 1000 with the microprocessor MK19-11
has a new ECG amplifier (3p). It is now possible to display 6 leads with a 3p-lead ca-
ble. The 3p-lead cable is marked with an black connector housing instead of green.
This works only with software 1.24 and higher.

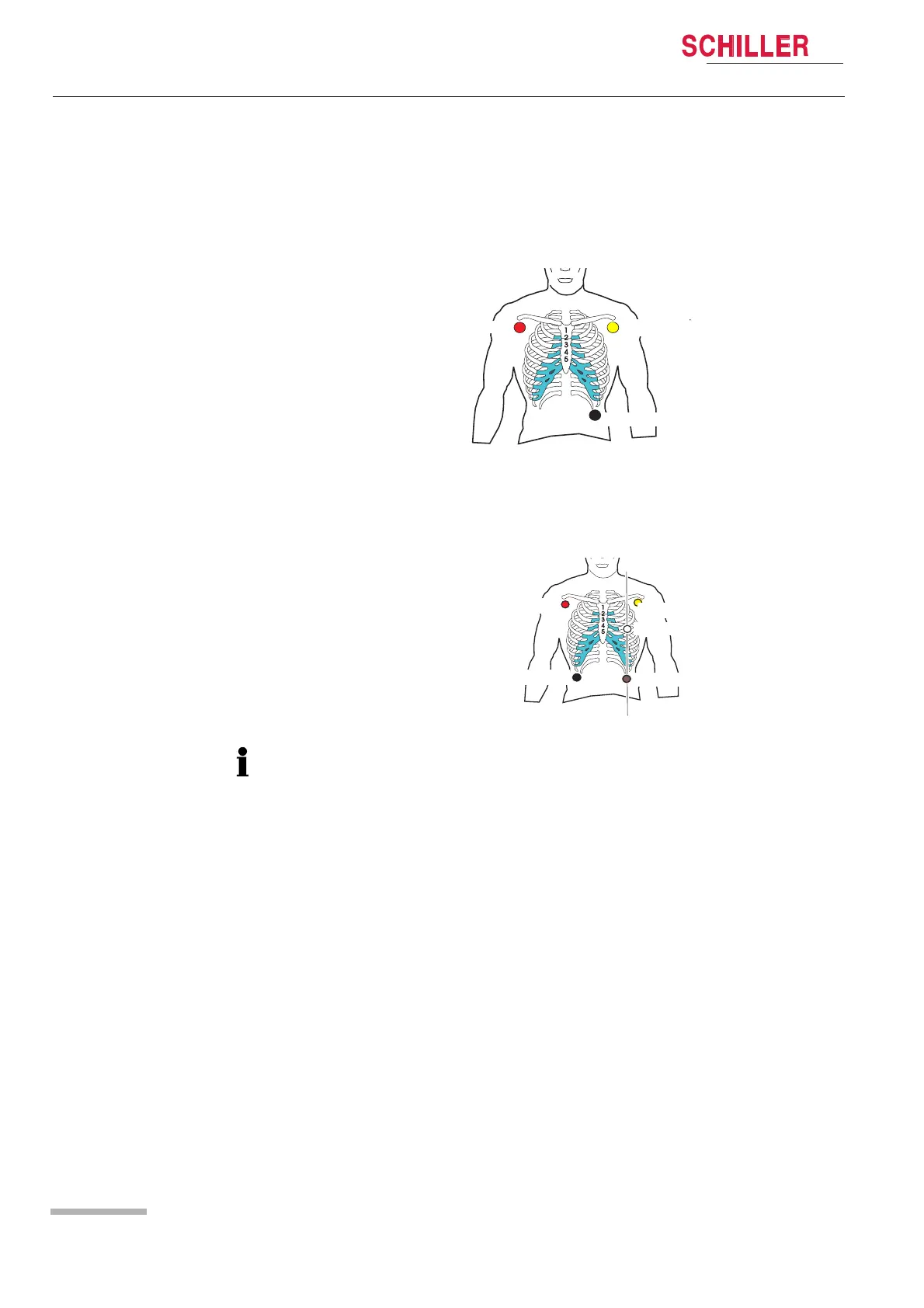

7.3.5 Three- and five-lead cables for adults and children
Red
(
RA
)
Green
(
LL
)
Yellow (LA)
Yellow (L)
white
Green
(
F
)
Black (N)
Red (R)
The colours shown here are according to code 1 (European) requirements. In par-
agraph 7.3.7, you can find a table with the colour codes of the American Heart As-
sociation (AHA).
