7 Appendix
7.3 Connecting the ECG patient cable
Page 46
Art. no.: 2.510474 rev.: d
ARGUS LCM/PLUS

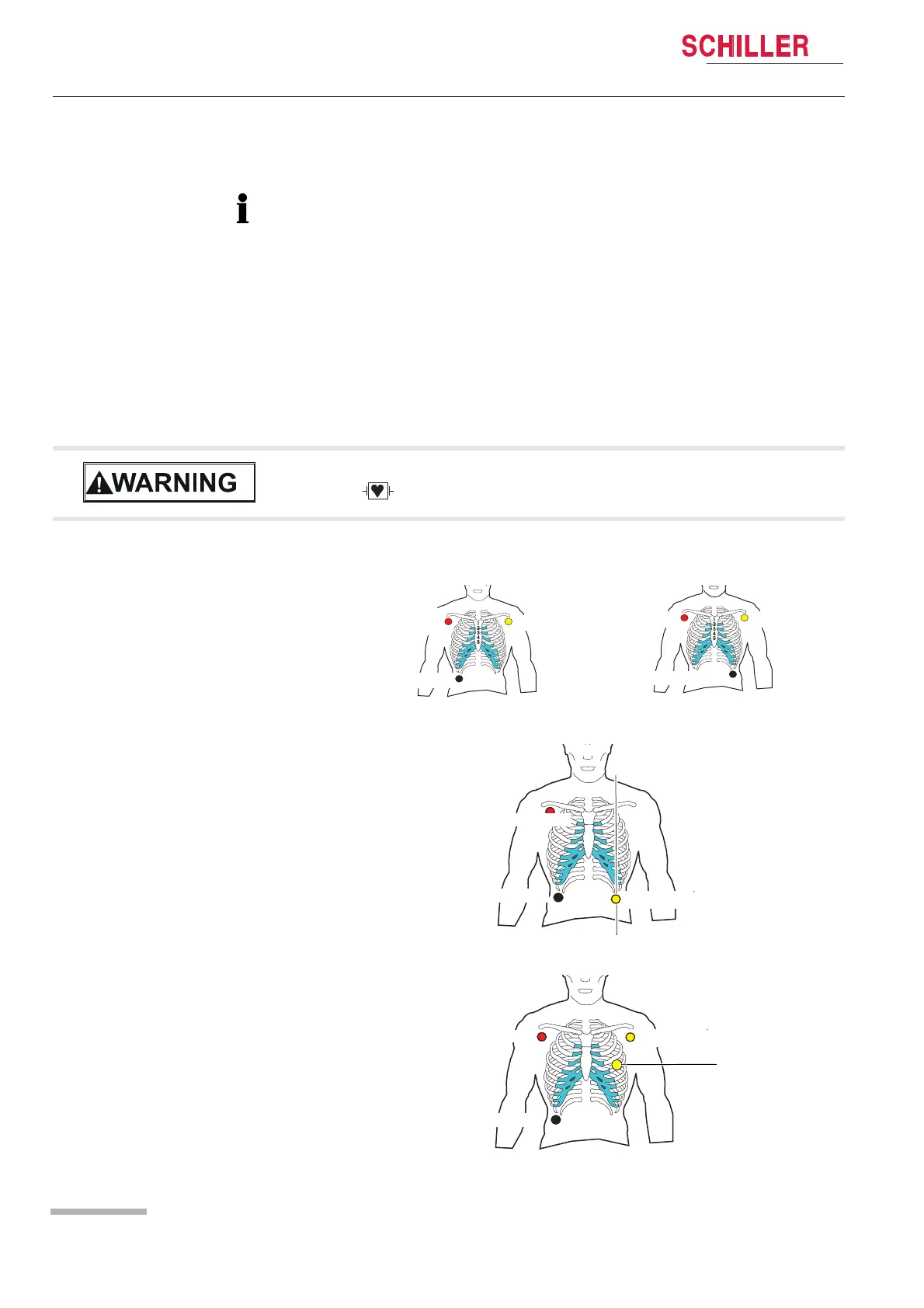

7.3 Connecting the ECG patient cable
7.3.1 3-leads cable for children and neonates
7.3.2 3-lead cable for respiration
7.3.3 3-lead cable for adults
Important
The guidelines for patient electrode placement are provided as an overview only.
They are not a substitute for medical expertise.
RRi
An RRi monitoring with HF-ECG cable against high frequncy signals is not possible.
The used HF-signal for the RRi measuring will be filtered by the HF protection in the
ECG cable.
Pacemaker monitoring with HF-ECG cable
Pacemaker monitoring with HF-ECG cable against high frequncy signals is not pos-
sible. The used pacemaker impulse will be filtered by the HF protection in the ECG
cable.
V Danger of destroying the device during defibrillation! The device is only type CF
protected if the original SCHILLER patient cables are used.
Black (N)
Yellow (L)
Red
Red (R)
Black
(
N
)
Yellow (L)
Red (R)
1
2
3
4
5
1
2
3
4
5
Red
(
R
)
Black
(
N
)
Yellow (L)
1
2
3
4
5
1
2
3
4
5
Red
(
R
)
Black
(
N
)
Yellow (L)
see note
