Schmalz SCPSi - Product Description; Ejector Structure

3 Product Description
EN-US · 30.30.00.00424 · 07 · 10/23 11 / 86
3Product Description
3.1Ejector Designation
The breakdown of the item designation (e.g. SCPSi 10 M G2 NO M12-5) is as follows:
Property Variants
Type of ejector SCPSi
Performance class 07, 10, 15, 2-07, 2-09, 2-14
Power blow off function M
Pneumatic connection G02 (1/8" internal thread)
S02 (8/6mm)
S04 (6/4mm)
Control unit NO, normally open
NC, normally closed
IMP, bistable, switched with pulse
Electrical connection M12-5 (1 x M12, 5-pin)

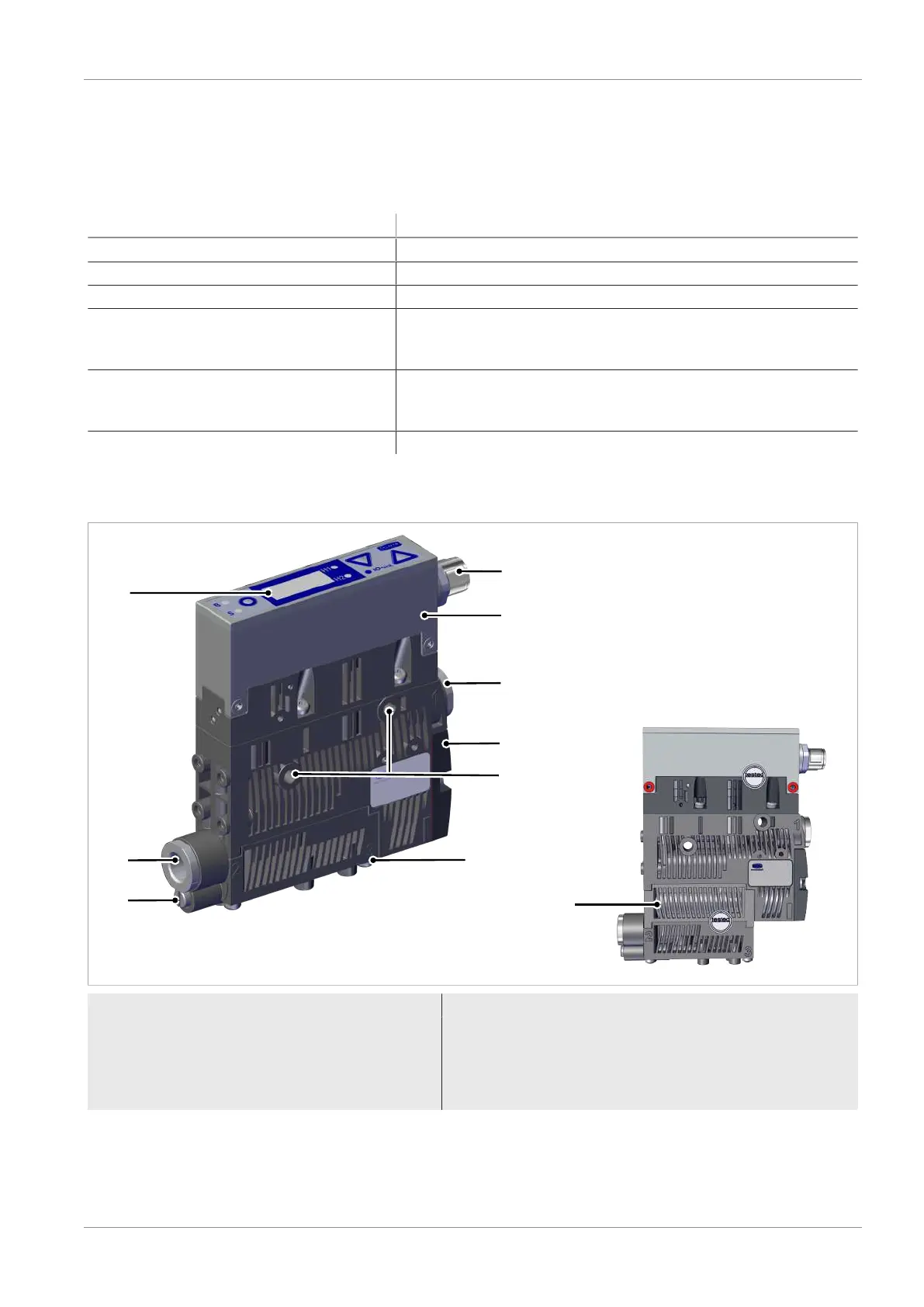

3.2Ejector Structure
10
1
2
3
4
5
6
7
8
9
1 Blow off valve screw 6 1/8" compressed air connection (marking 1 [P])
2 1/8" vacuum connection; marking 2 [V] 7 Silencer cover
3 Display and operating element 8 Mounting hole (2x)
4 M12 electrical connection 9 Exhaust outlet (marking 3)
5 Control unit 10 Power blow-off module for variant M
