9 Installation
50 / 86 EN-US · 30.30.00.00424 · 07 · 10/23
For the start of operations, the ejector must be connected to the controller via the connection plug with a
connection cable. The compressed air required to generate the vacuum is connected via the compressed
air connection. The compressed air supply must be supplied by the higher-level machine.
The vacuum circuit is connected to the vacuum connection.
The installation process is described and explained in detail below.
9.3Pneumatic Connection
CAUTION
Compressed air or vacuum in direct contact with the eye
Severe eye injury
4 Wear eye protection
4 Do not look into compressed air openings
4 Do not look into the silencer air stream
4 Do not look into vacuum openings such as suction cups, suction lines and hoses.
CAUTION
Noise pollution due to incorrect installation of the pressure and vacuum connec-
tions
Hearing damage!
4 Correct installation.
4 Wear ear protectors.

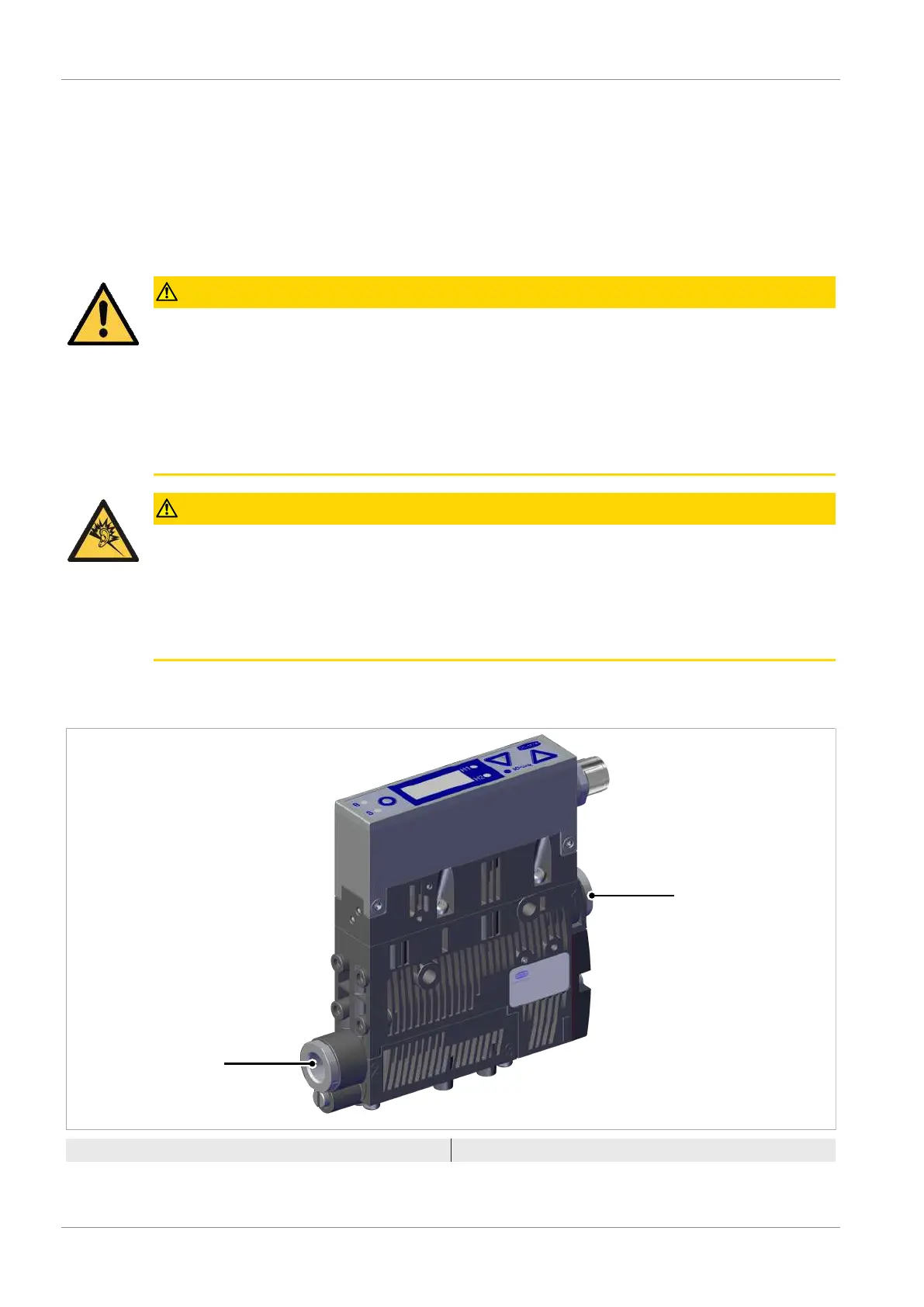

9.3.1Connecting the Compressed Air and Vacuum
2
1
1 Compressed air connection 2 Vacuum connection
