9 Installation
EN-US · 30.30.00.00424 · 07 · 10/23 49 / 86
9Installation
9.1Installation Instructions
CAUTION
Improper installation or maintenance
Injury to persons or damage to property
4 During installation and maintenance, make sure that the product is disconnected and
depressurized and that it cannot be switched on again without authorization.
To ensure safe installation, the following instructions must be observed:
• Use only the connectors, mounting holes and attachment materials that
have been provided.
• Mounting and removal must be performed only when the device is unpres-
surized and disconnected from the mains.
• Pneumatic and electrical line connections must be securely connected and
attached to the product.

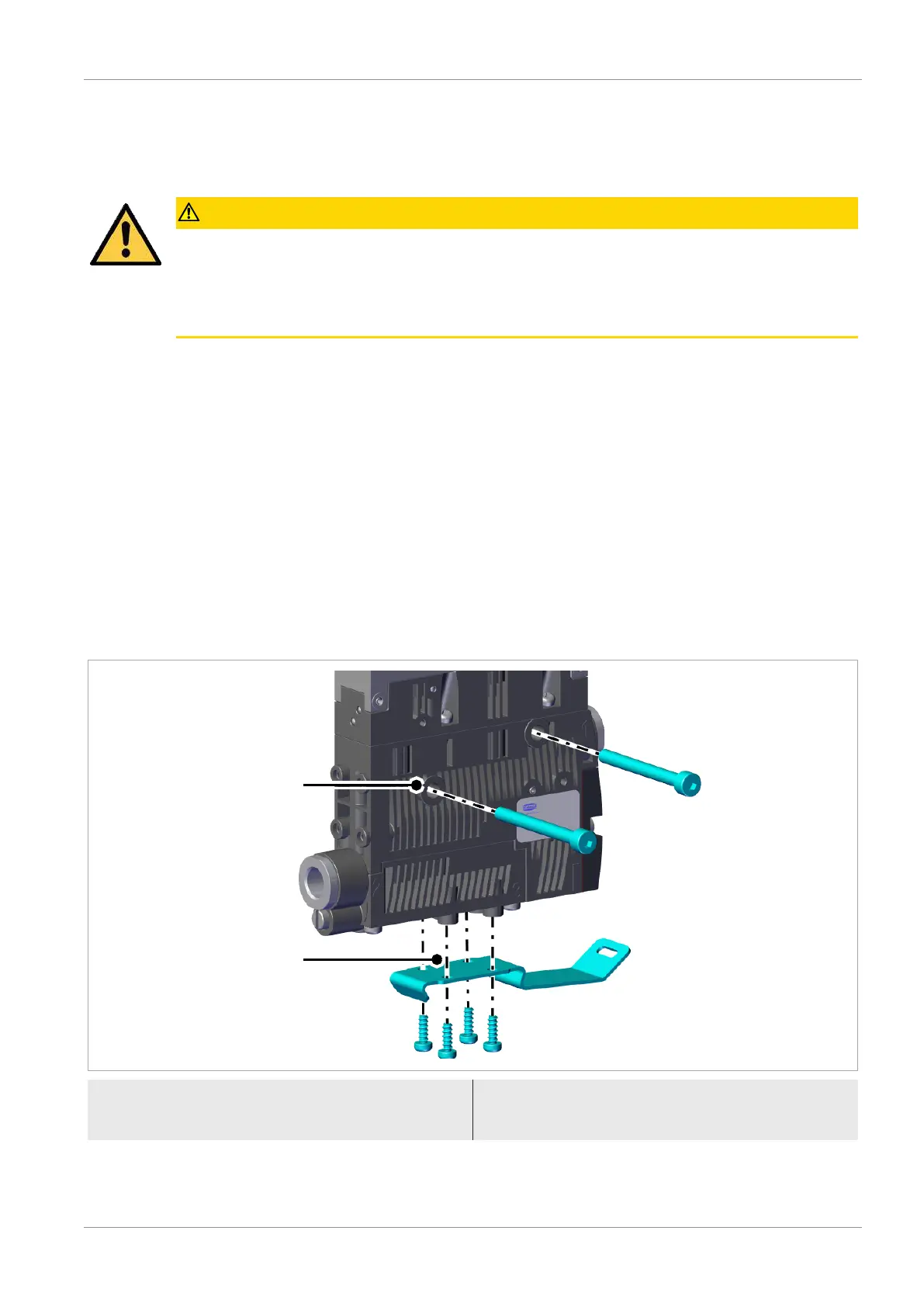

9.2Mounting
The ejector can be installed in any position.
There are two 4.4 mm mounting holes for mounting the ejector.
A DIN rail mount for DIN rail TS35 can be used as a mounting option.
1 DIN rail mount for TS35 DIN rail, incl. plas-
tic tapping screws
Max. tightening torque 0.5Nm
2 2x M4 fastening screws with washers
When mounting with fastening screws, use M4 washers (2Nm max. tightening torque).
