Schmalz SCPSi - Display and Operating Element in Detail

3 Product Description
12 / 86 EN-US · 30.30.00.00424 · 07 · 10/23

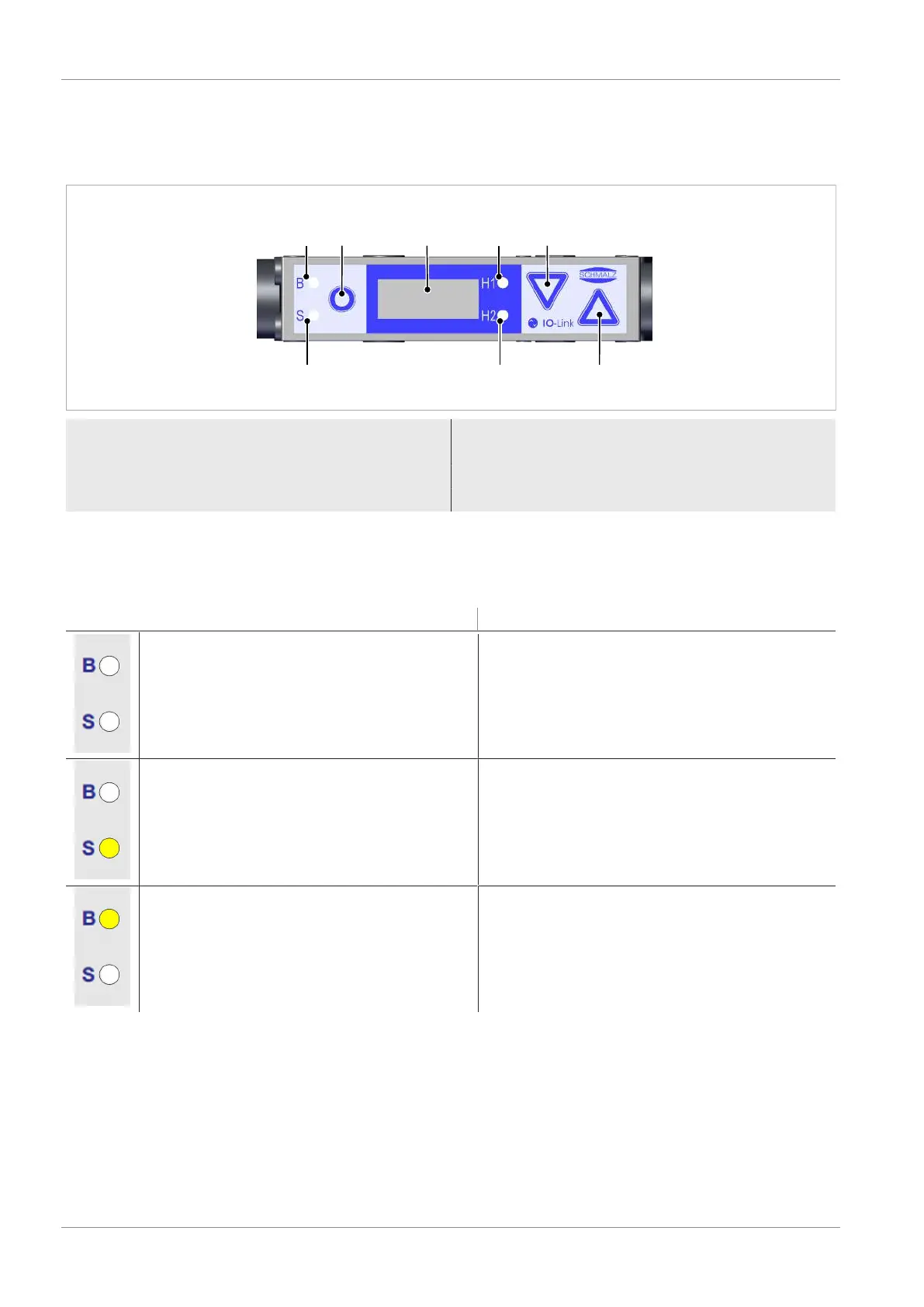

3.3Display and Operating Element in Detail
The ejector is fitted with 3 buttons, the 3-digit display and 4 LEDs for status information to ensure simple
operation.
8 1 2 3 4
567
1 MENU BUTTON 5 UP BUTTON
2 Display 6 LED vacuum limit value H2
3 LED vacuum limit value H1 7 LED process state “suction”
4 DOWN BUTTON 8 LED process state “blow off”
Definition of the LED indicators
The “suction” and “blow off” process states are each assigned an LED.
Display Ejector state
LEDs are both off No suction from ejector
LED for the suction function is constantly lit Ejector sucks or
is under control
LED for the blow off function is constantly
lit
Ejector blowing off
