9 Installation
EN-US · 30.30.00.00424 · 07 · 10/23 53 / 86

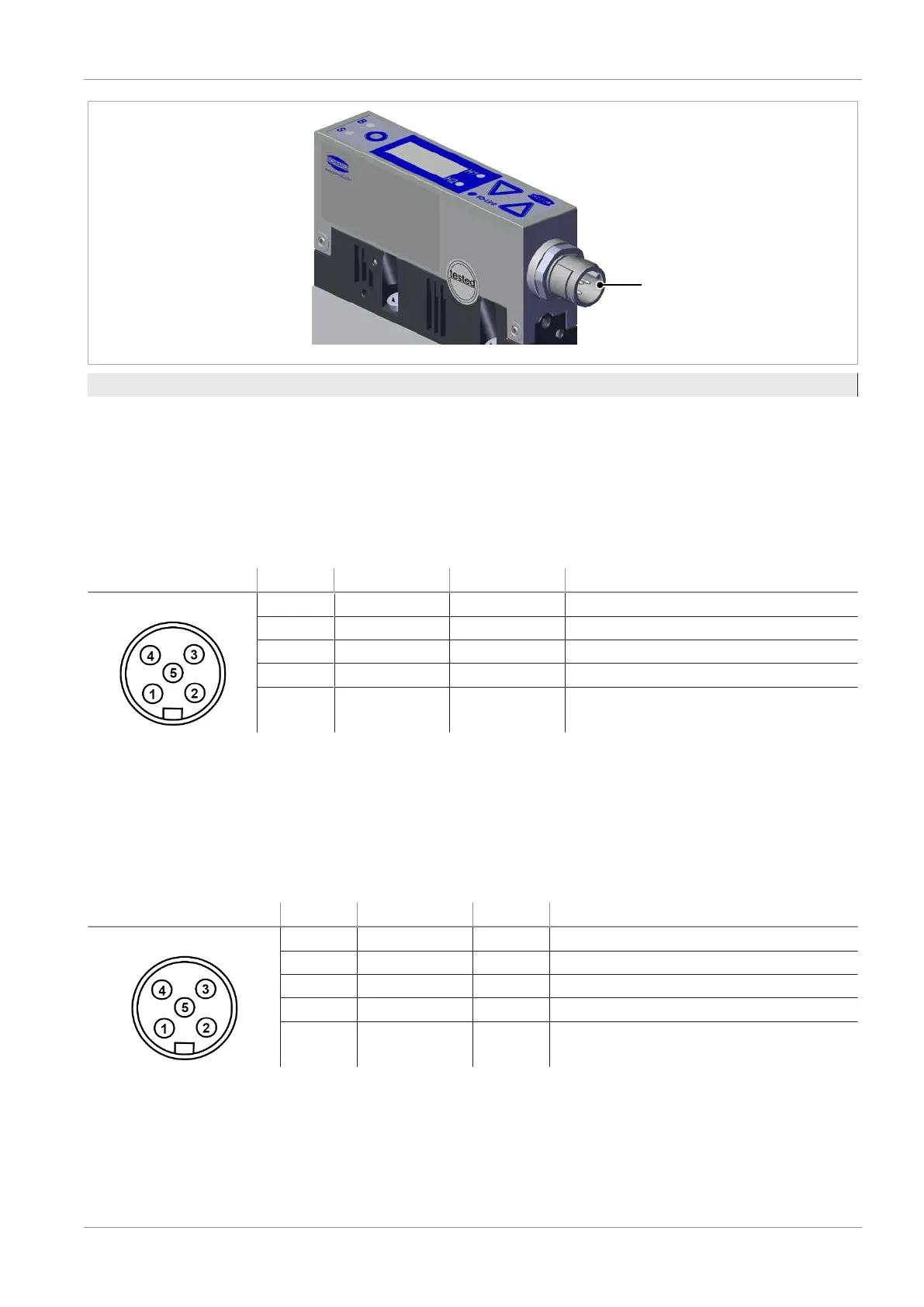

1
1 Electrical connection plug, M12, 5-pin
ü Prepare a connection cable with an M12 5-pin connector (supplied by the customer).
4 Attach the connection cable to the electrical connection (1) on the ejector (max. tightening torque =
hand-tight).
9.4.1PIN Assignment of M12, 5-Pin Connection Plug
Plug PIN
Wire color
1)
Symbol Function
1 Brown U
S/A
Supply voltage for sensors/actuators
2 White IN1 “Suction” signal input
2
3 Blue Gnd
S/A
Ground for sensors/actuators
4 Black OUT “Part present” signal output (H2/h2)
5 Gray IN2 “Blow off” signal input
3)
1)
When using a Schmalz connection cable, part no. 21.04.05.00080
2)
NO version: Suction OFF, NC version: Suck ON, IMP version: suction ON only
3)
NO/NC version: Blow off ON/OFF, IMP version: Suction OFF and blow off ON/OFF
9.4.2PIN Assignment in IO-Link Mode
PIN assignment, M12 5-pin connector
M12 connector Pin
Wire color
1)
Symbol Function
1 Brown U
S/A
Supply voltage for sensors/actuators
2 White — —
3 Blue GND
S/A
Ground for sensors/actuators
4 Black C/Q IO-Link communication
5 Gray — —
1)
When using Schmalz connection cable part no. 21.04.05.00080
