Minimum full load time is active

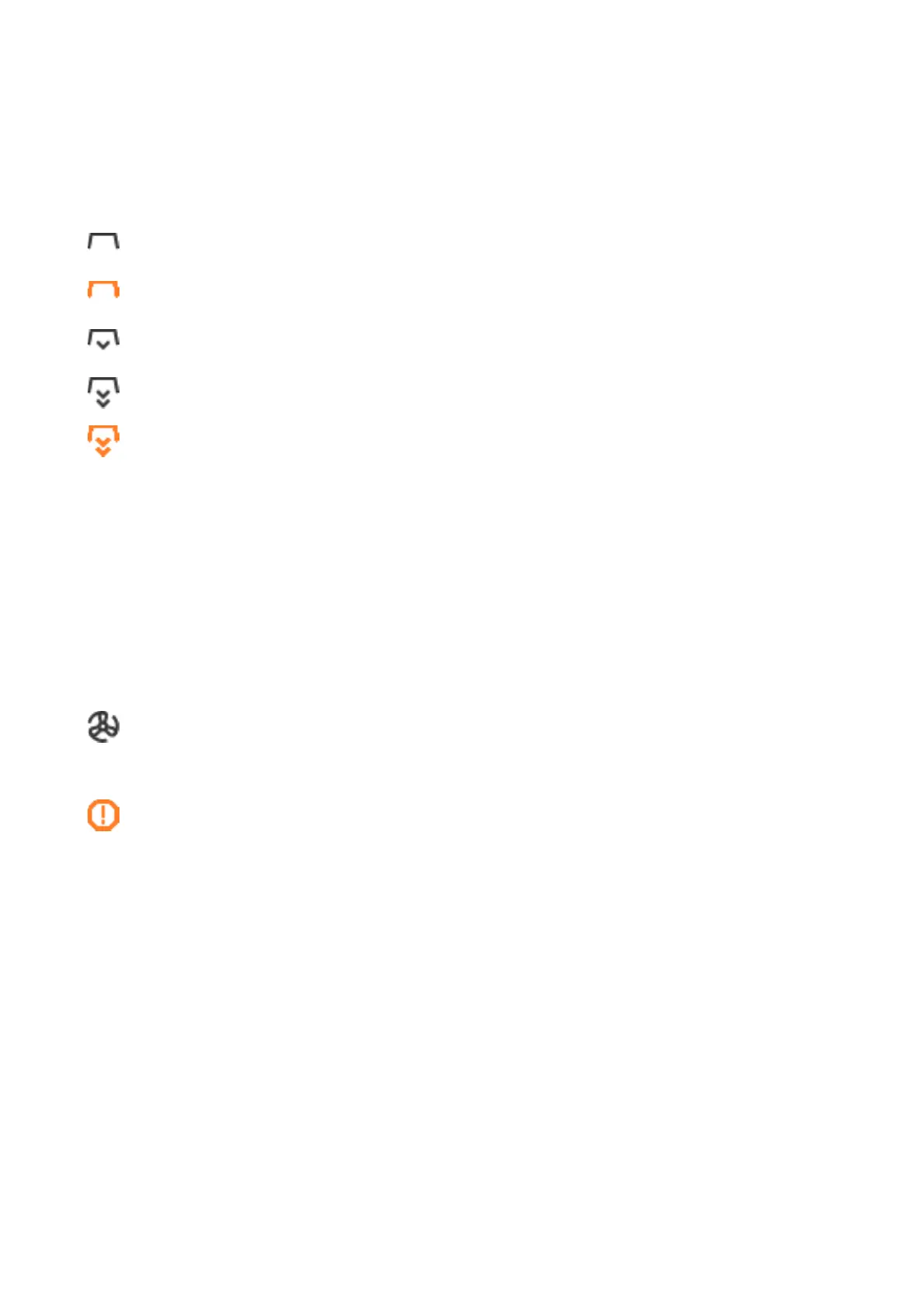

7th Symbol
Heater status [section 8]
OFF
Heater OFF activated by digital input
OR
Partial load
OR
Full load
Heater ON activated by digital input
8th Symbol
Additional information for Symbol 7
ON
Heater is switched on
OFF
Heater is switched off
LOW
Heater running at partial load
#0...
#25
Modulation of the heater output is active
9th Symbol
Fan status
Fan is ON
10th Symbol
Event indication
Error in the zone
