Schwank Control Touch - Humidity Sensor Wiring

Revision: 3.0 Page 52 of 70

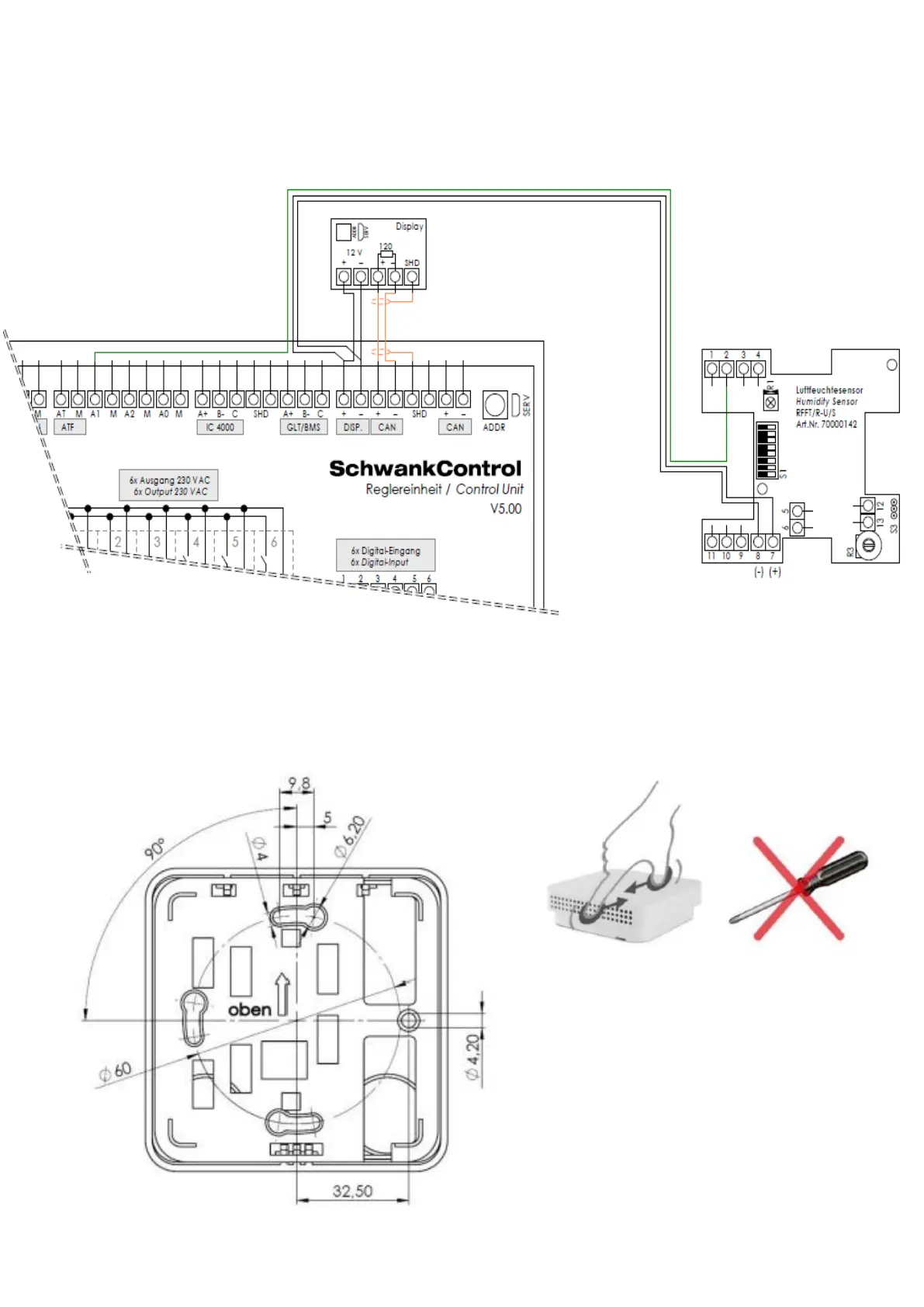

10.9.4. Humidity sensor wiring
Mounting Advice
The convection must be aligned at the bottom to ensure a flow of air up [see marking back
of the housing] The sensor should always be mounted in an appropriate distance to
the heaters. Ideal mounting height of 1.5 m above the floor.
