4. Components
The standard control integrates a control unit, an operating unit and a touch screen in a single housing.

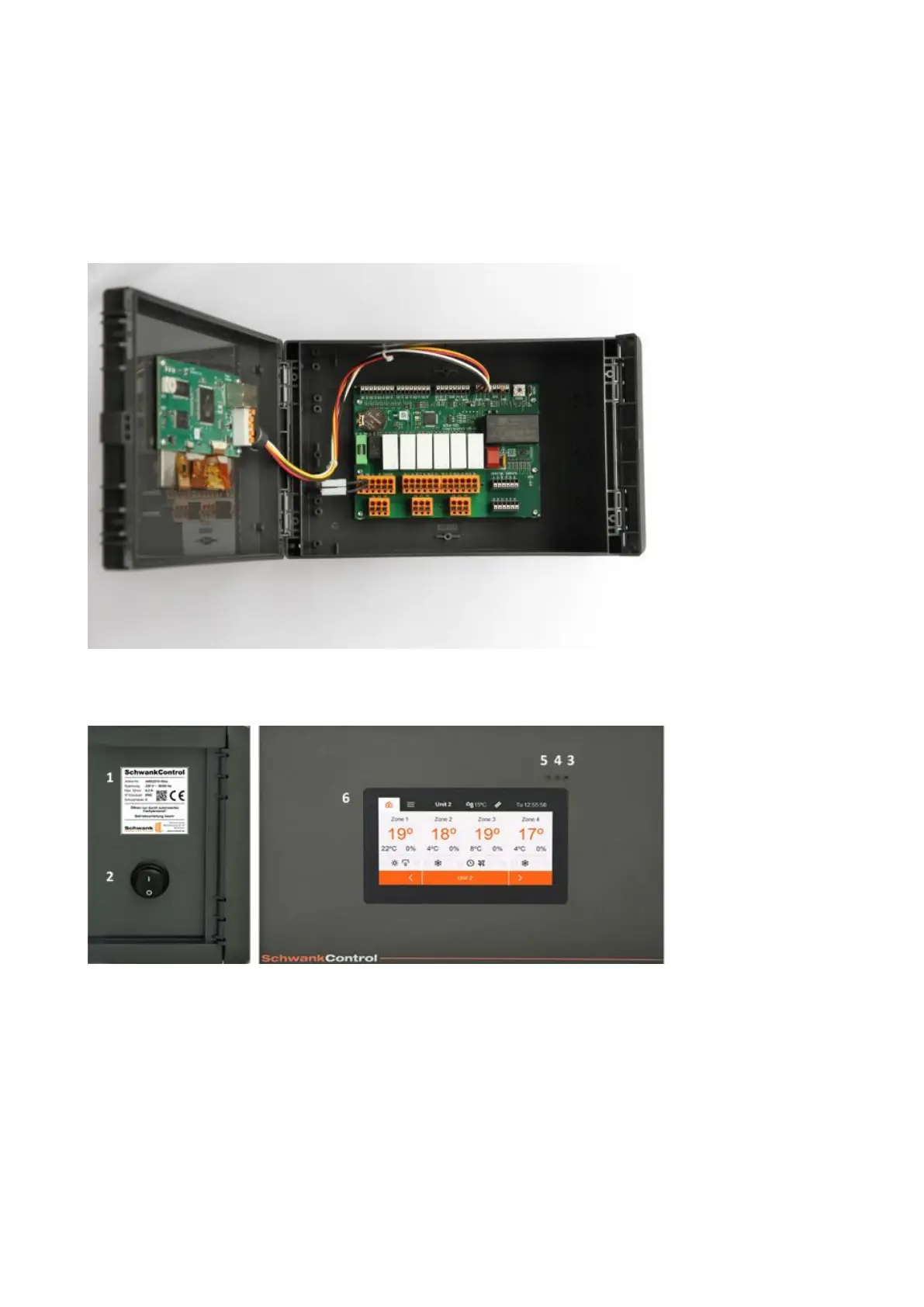

Figure 1: Control unit
1. Type plate
2. Main switch
3. LED green: Ready for operation
4. LED yellow: Continuous light = service required
Flashing = chimney sweep mode
5. LED red: Error message
6. Touch display
Figure 2: External components
