Schwank Control Touch - Relay Function Configuration

Revision: 3.0 Page 24 of 71
List of available heater types:
 Zone deactivated
 Luminous heater single-stage
 Luminous heater two-stage
 Luminous heater modulating
 Tube heater single-stage
 Tube heater two-stage
 Tube heater modulating
 Warm air heater
 Hybrid system [zone 3 only]
7.2. Relay function configuration
In the next step, a function is assigned to the six output relays of the control unit. Set outputs are colour-
highlighted. Touch the screen to carry out function and zone assignment.
Function
Symbol
Function description
Permanently Off
Deactivation of an unused power relay.
Permanently On
The relay is permanently switched on without a control request.
Heater On/Off
The heater assigned to the zone is switched ON or OFF by the
control.
Heater stage
The heater assigned to the zone is switched to full load or to one
of #0...#25 modulation levels by the control.
Fan On/Off
The fan assigned to the zone is switched ON or OFF by the control.
Circulation pump On/Off
In hybrid systems, the circulation pump is switched ON or OFF by
the control.
Bypass switching
In hybrid systems, the bypass is actuated by the control.

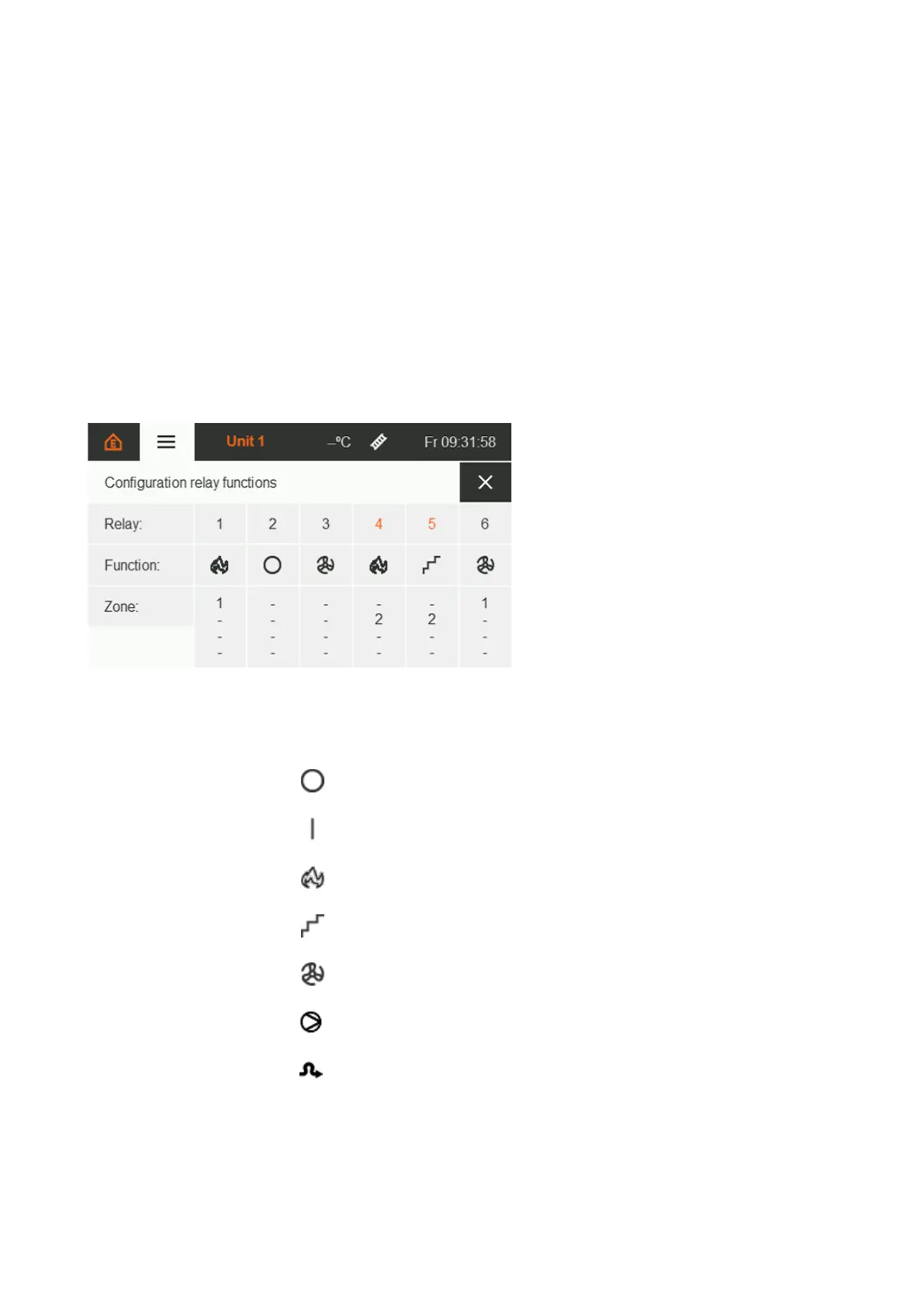

Figure 27: Output relay function assignment
