Date Code 20011026 Maintenance and Testing 7-15
SEL-321/321-1 Instruction Manual

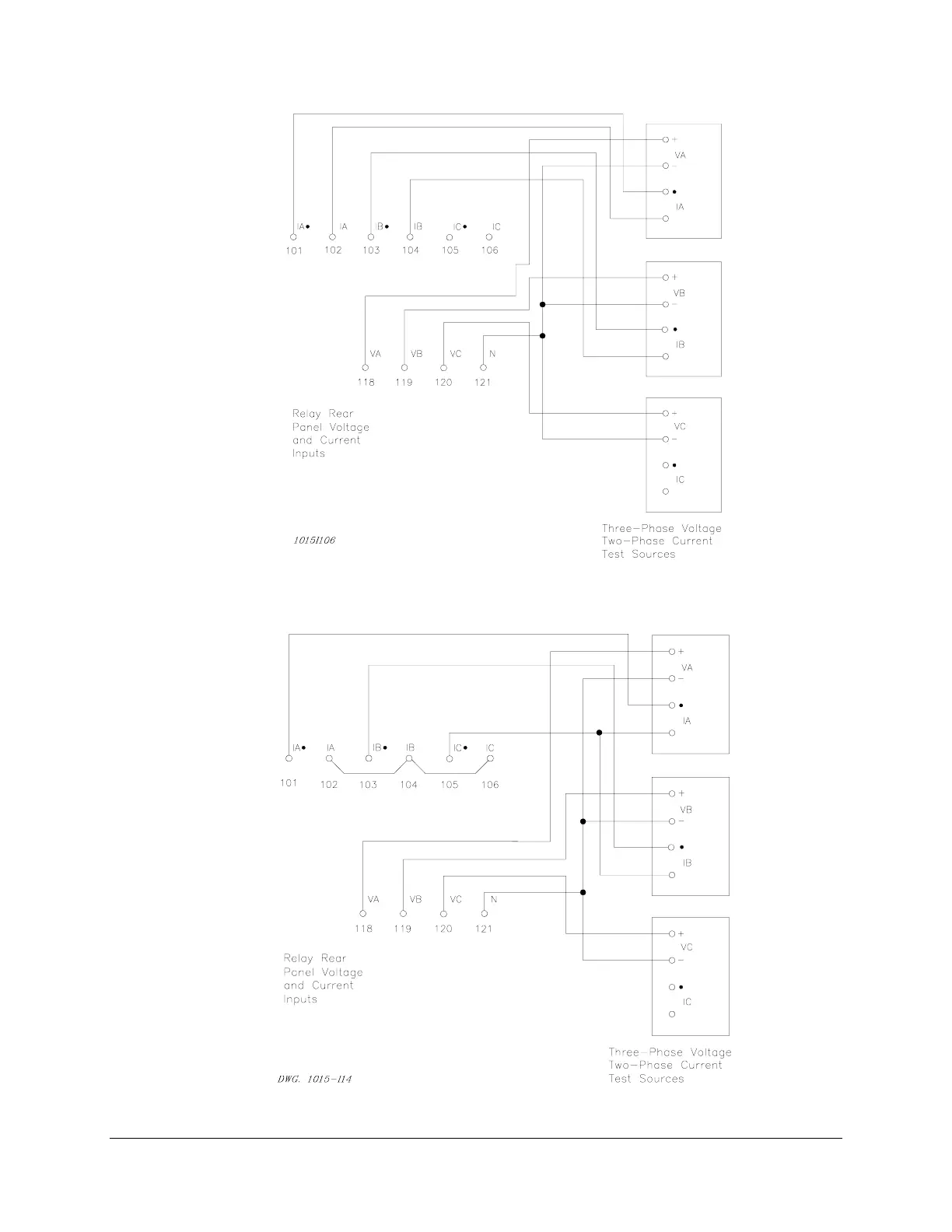

Figure 7.4: Phase-to-Phase, Phase-to-Ground, and Two-Phase-to-Ground Fault Test
Connections Using Two Current Sources
Figure 7.5: Three-Phase Fault and METER Test Connections Using Two Current Sources
