Date Code 20011026 Specifications 2-65
SEL-321/321-1 Instruction Manual

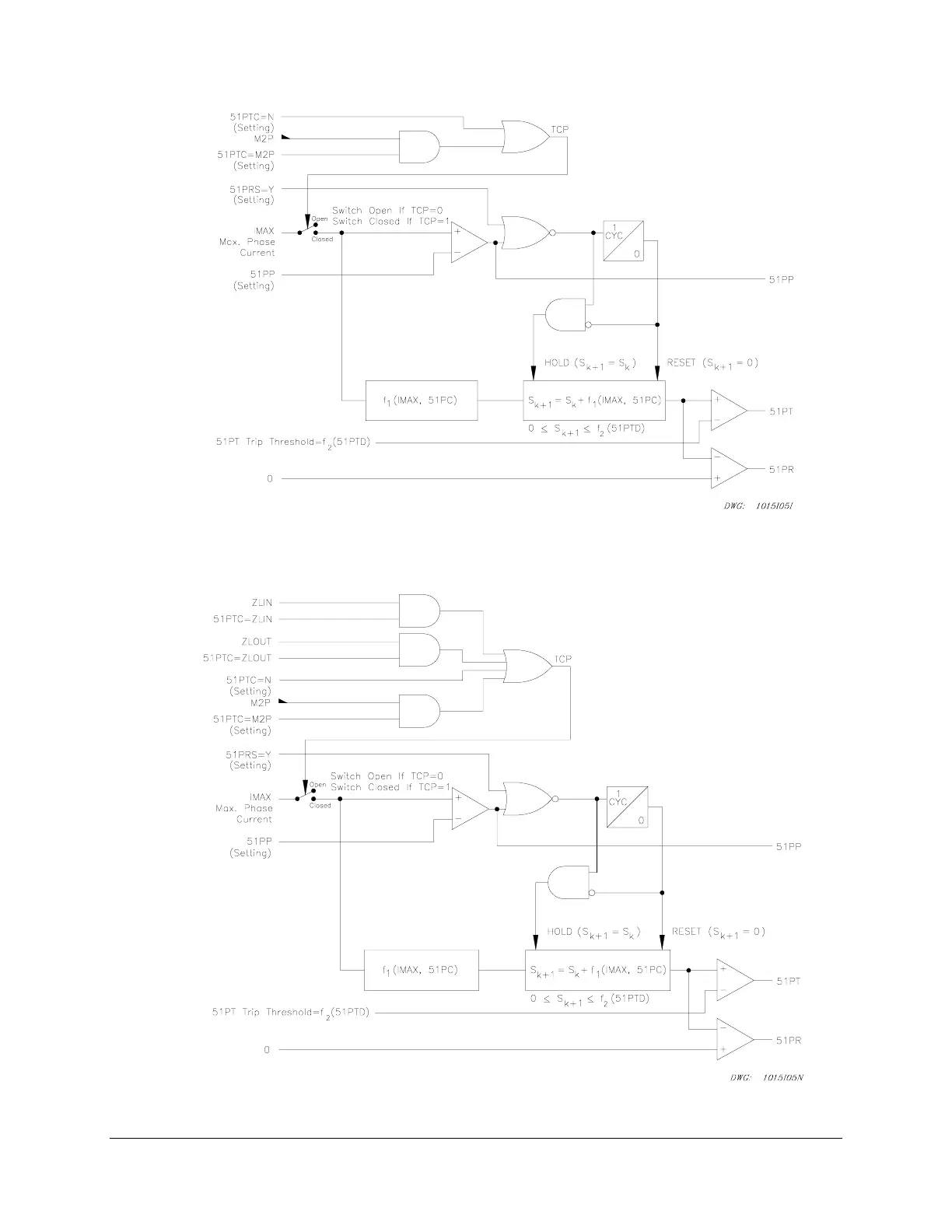

Figure 2.23: Phase Time-Overcurrent Element Logic (SEL-321 Relay Base Version)
Figure 2.24: Phase Time-Overcurrent Element Logic (SEL-321-1 Relay Only)
