7-14 Maintenance and Testing Date Code 20011026
SEL-321/321-1 Instruction Manual

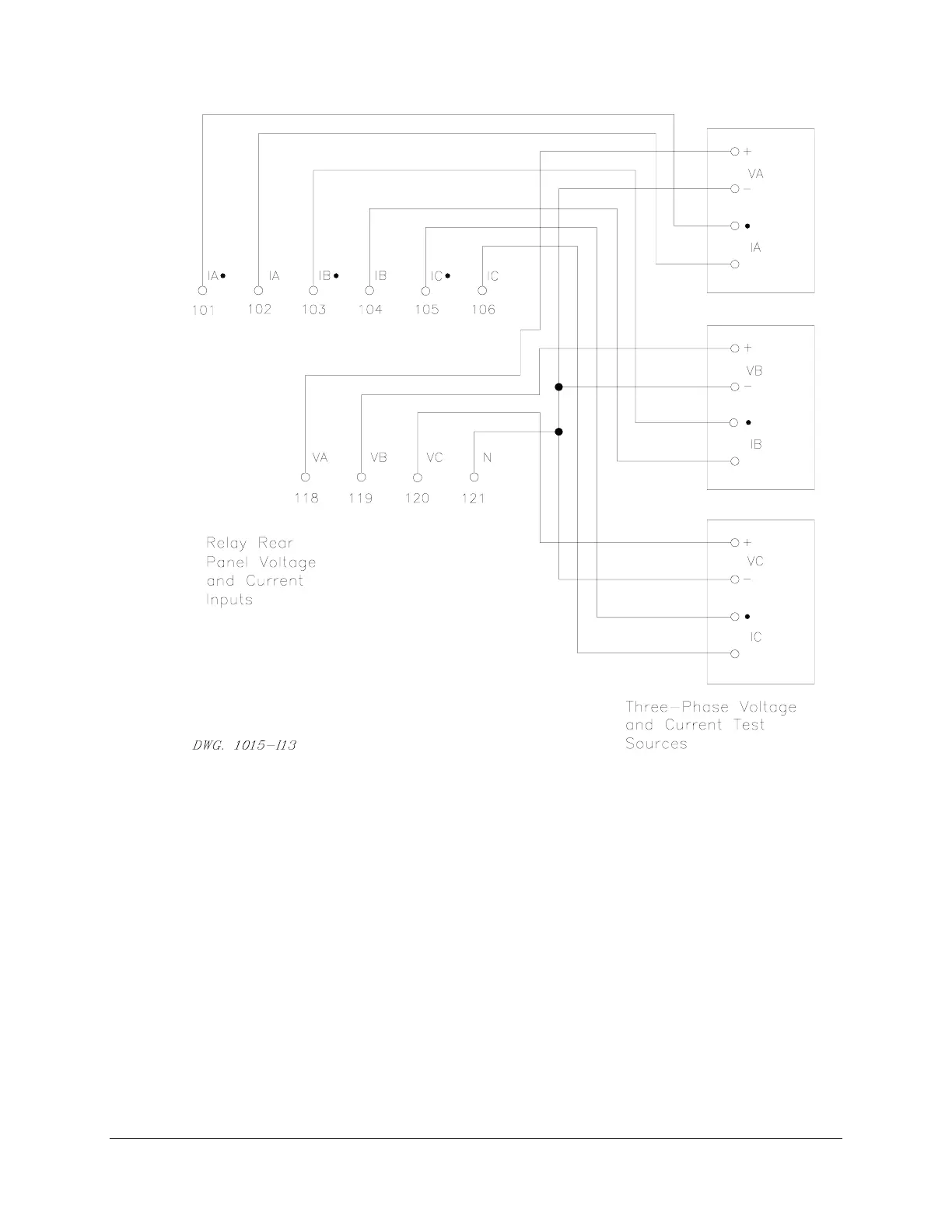

Figure 7.3: Three Voltage Source and Three Current Source Test Connections
Three Voltage Source and Two Current Source Connections
Figure 7.4 and Figure 7.5 show connections to use when three voltage sources and two current
sources are available. Phase-to-phase, phase-ground, and two-phase-ground faults may be
simulated using the connections shown in Figure 7.4. Three-phase faults may be simulated using
the connections shown in Figure 7.5.
