Schweitzer Engineering Laboratories SEL-321 - Figure 2.20: Out-Of-Step Block and Trip Logic

2-62 Specifications Date Code 20011026
SEL-321/321-1 Instruction Manual

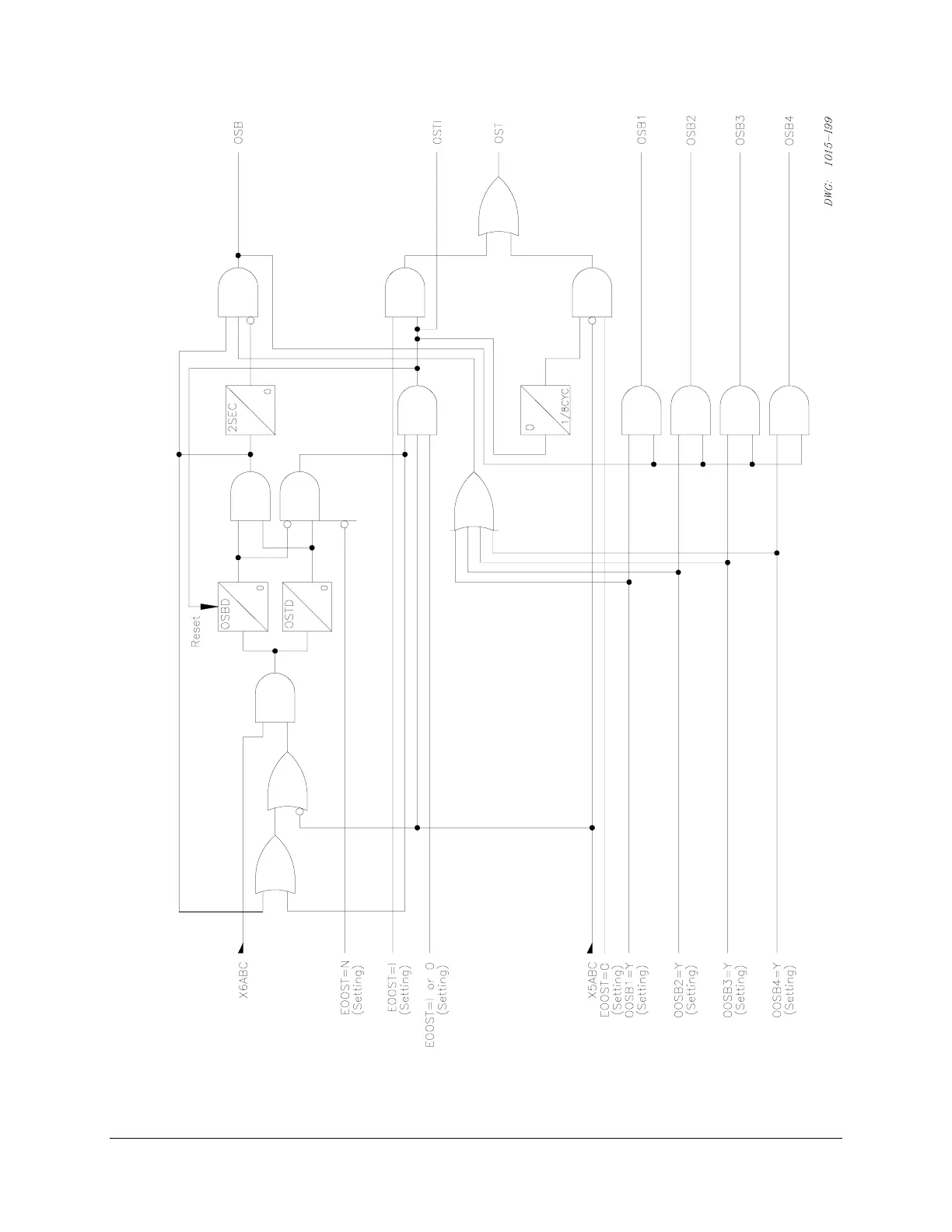

Figure 2.20: Out-of-Step Block and Trip Logic
