2-2
Chapter 2 NAME OF PARTS

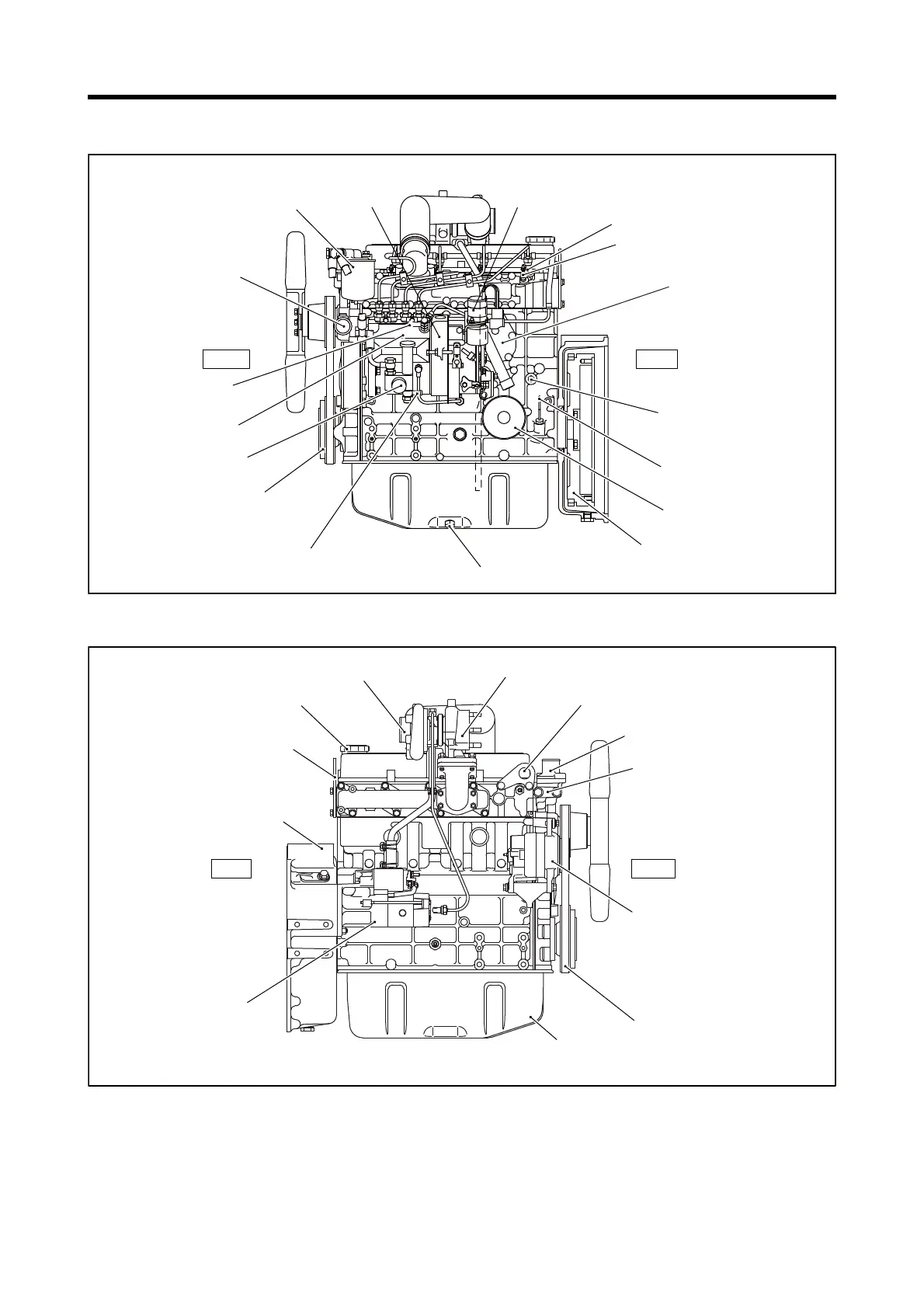

S4S-DT in-line type fuel
injection pump lef
t view
Fig. 2-3 Engine left view
S4S-DT in-line type fuel
injection pump right view
Fig. 2-4 Engine right view
Oil drain plug
Flywheel
Oil filter
Oil level gauge
Coolant drain plug
Stop solenoid
Rear
Fuel injection nozzle
Glow plug
Fuel filter
Governor
W
ater pump
(coolant inlet)
Fuel injection pump
Fuel feed pump
Crankshaft pulley
Fuel inlet
Fuel return port
Front
Oil cooler
Rear hanger
Air inlet
Front hanger
Oil filler
Flywheel housing
Starter
Oil pan
Belt
Alternator
Thermostat case
Coolant outlet
Rear
Front
T
urbocharger (exhaust outlet)
