2-1
Chapter 2 NAME OF P
ARTS

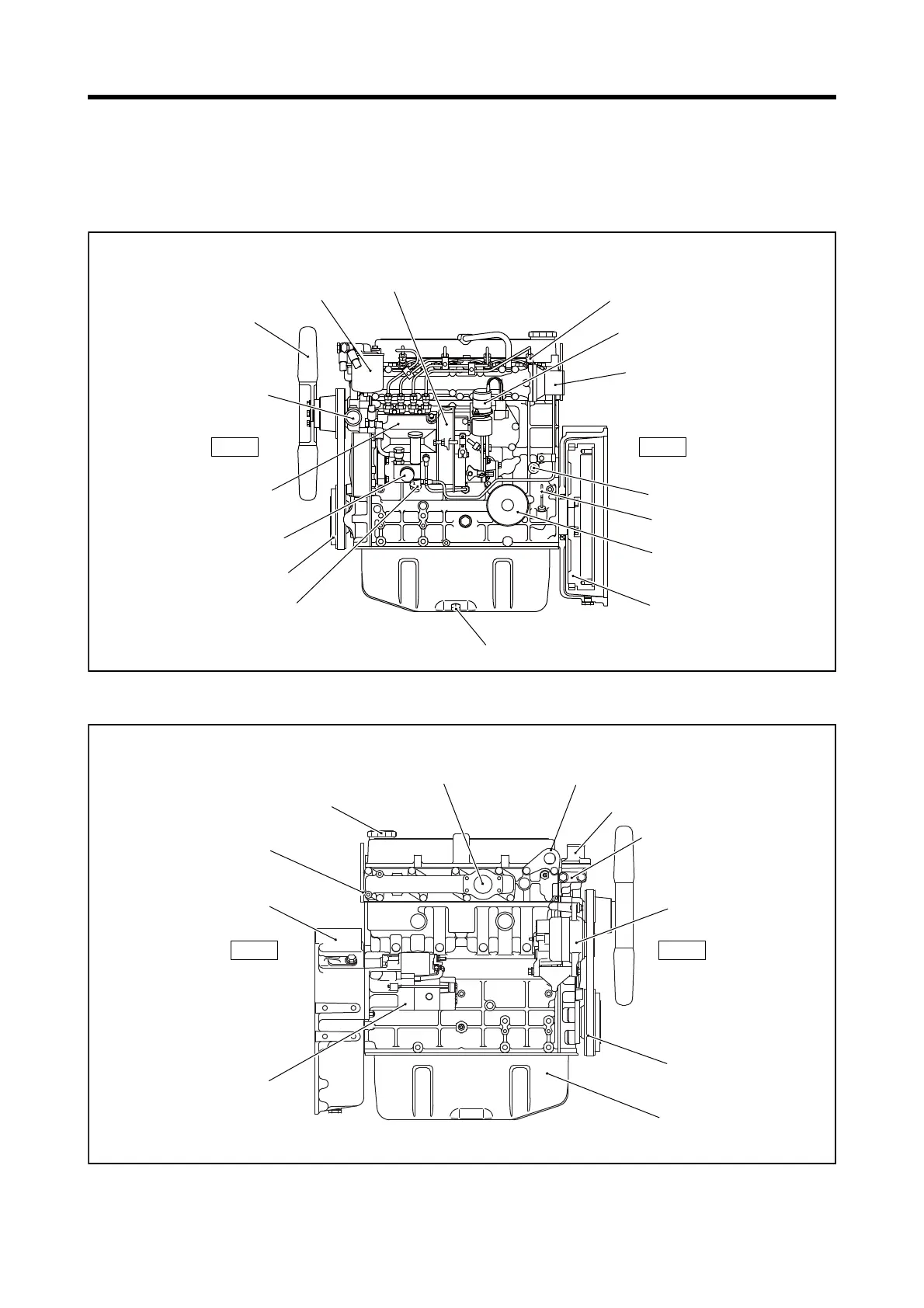

Engine external diagrams
The external diagram is for the standard type of the engine. The inst
alled equipment and shapes dif
fer according to
the engine type.
S4S in-line type fuel in
jection pump left view
Fig. 2-1 Engine left view
S4S in-line type fuel in
jection pump right view
Fig. 2-2 Engine right view
Air inlet
Stop solenoid
Fuel injection nozzle
Rear
Flywheel
Oil filter
Oil level gauge
Coolant drain plug
Oil drain plug
Fuel filter
Governor
Fan
W
ater pump
(coolant inlet)
Fuel injection pump
Fuel feed pump
Crankshaft pulley
Fuel inlet
Front
Front hanger
Oil pan
Belt
Alternator
Thermostat case
Coolant outlet
Front
Rear hanger
Oil filler
Exhaust outlet
Flywheel housing
Starter
Rear
122/242
