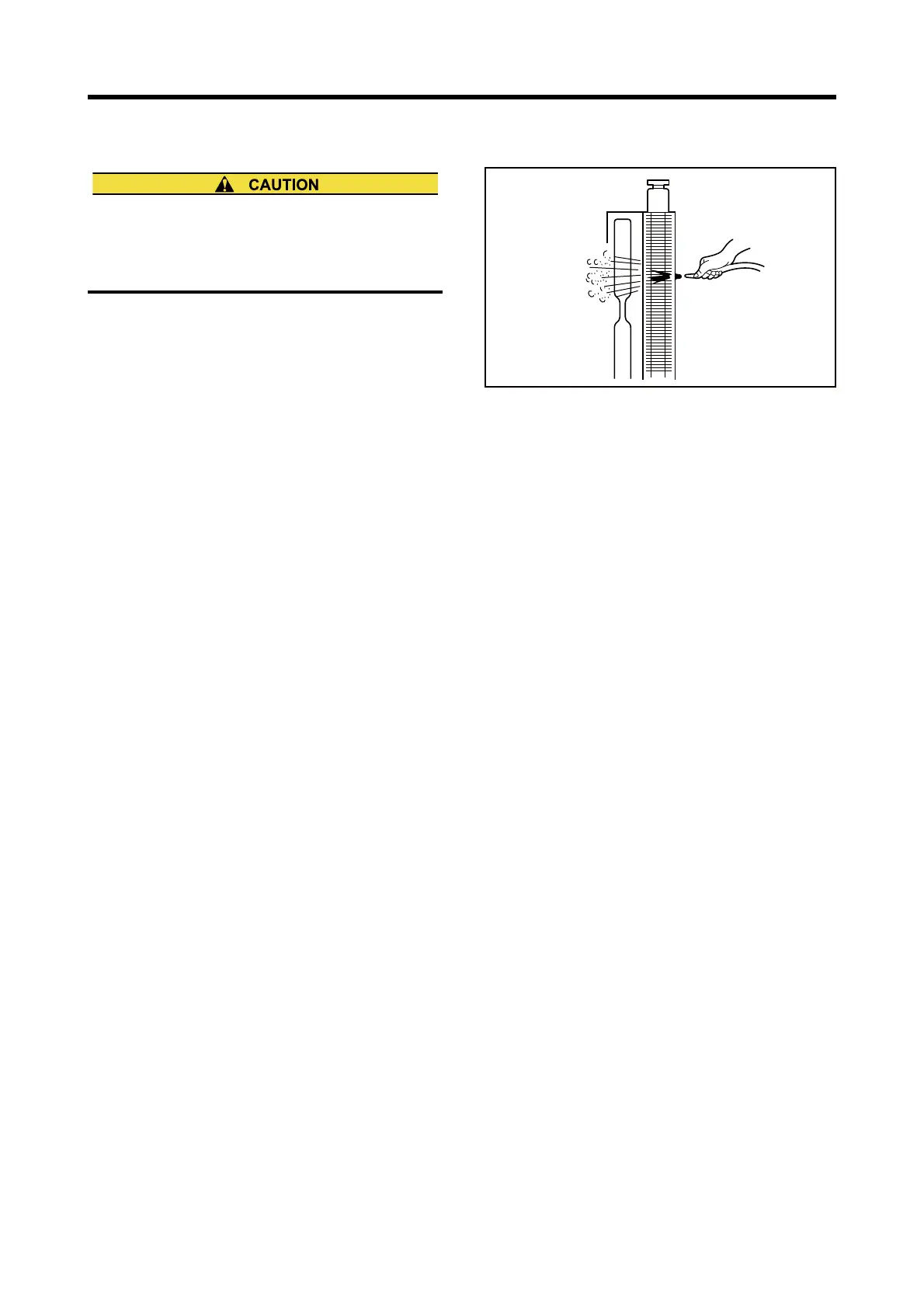

Chapter 8 PERIODIC INSPECTION AND MAINTENANCE PROCEDURES
Radiator fins - Check and Clean
Check the radiator fins for holes and cracks.
T
o clean the radiator fins, blow compressed air from
the opposite direction of the normal air flow
.
Fig. 8-22 Radiator fins - Clean
When handling compressed air
, wear safety goggles,
a hardhat, gloves and other necessary protective
gear
. Works without wearing proper protective gear
could result in serious injuries.
