2.4. Fluid retention
Any outflow of the fluids contained in the generating sets (fuel, oil and coolant, or rainwater or condensation) will be collected in a
retention container.
The containers have a capacity which allows 110% of the fluids contained in the generating set fitted with this option to be collected.

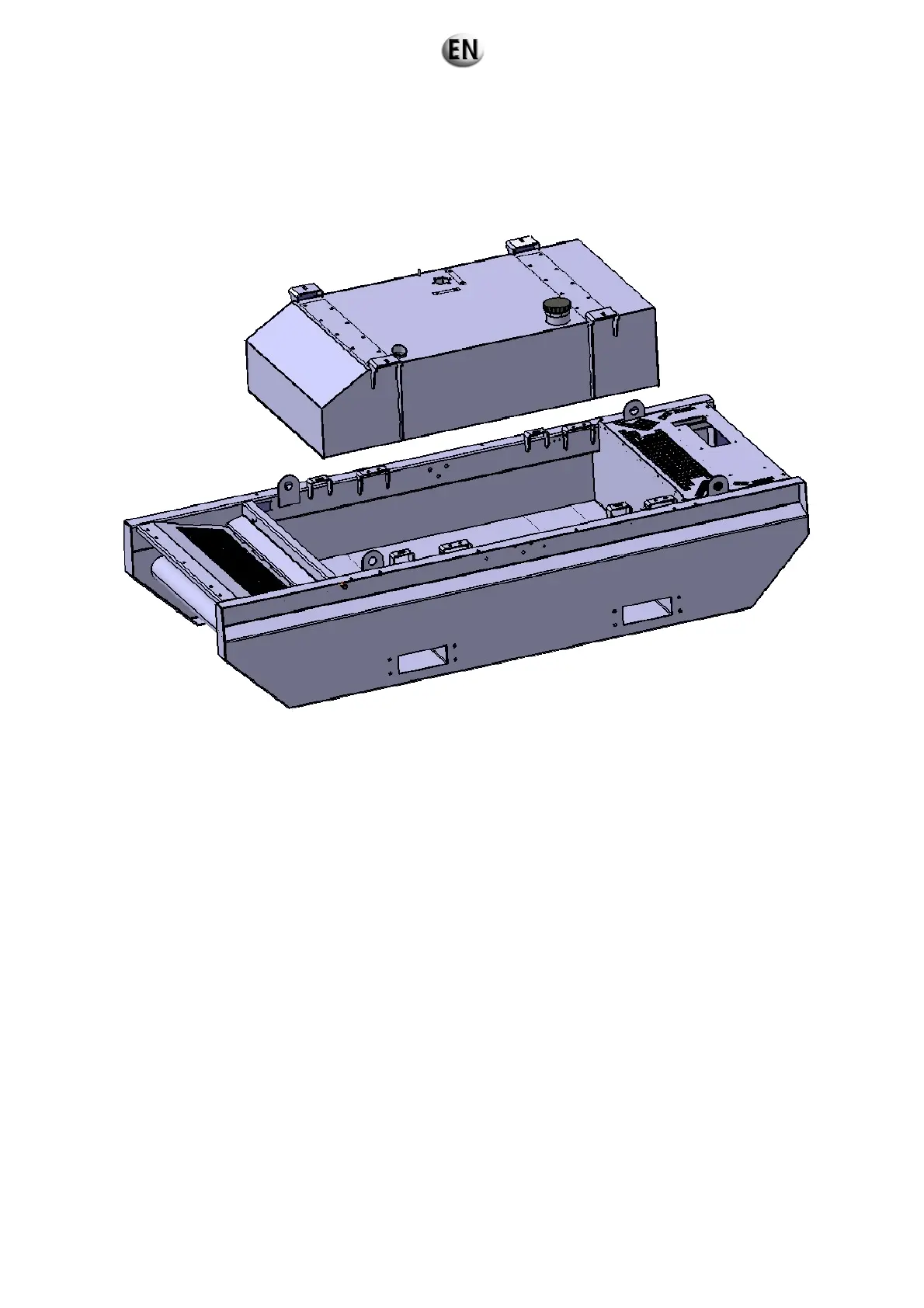

Figure 11 : Fluid retention container
The generating sets are fitted with a visual alarm warning when the upper limit of the retention container has been reached.
In all cases, the retention containers must be regularly checked to ensure they contain no fluid (fuel, oil and coolant, or rainwater or
condensation). If necessary, drain the containers via the drain port.
 Note: Never allow these fluids to drain onto the ground; ensure they are collected in a designated container.
