6.3.1.2. Description of the screen
The screen is backlit and requires no contrast adjustments. This screen is divided into 4 zones.
î™®

î™°
SERIAL No.: 08030010000
SOFTWARE: 5.3.5
NOMINAL VOLTAGE: 400V
FREQUENCY: 50Hz
NOMINAL KW: 320kW
EARTH SYSTEM: TNS
î™±

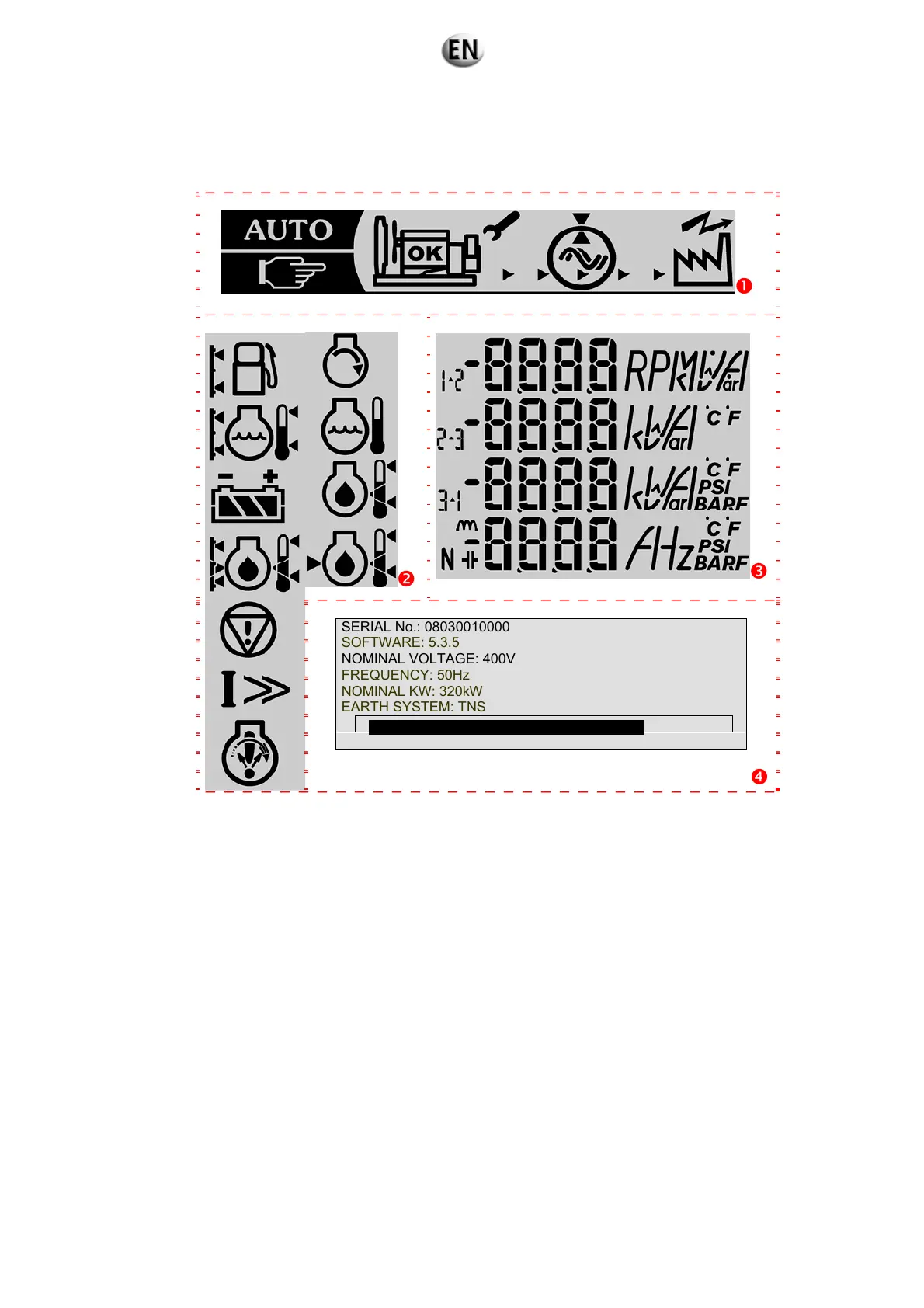

Figure 22 : Description of the screen (example)
î™® Zone 1: in this zone, the status of the generating set is displayed
 Zone 2: in this zone, pictograms relating to dimensions measured are displayed, as well as Alarm and Fault pictograms
î™° Zone 3: in this zone, the measured values corresponding to the measured dimensions are displayed with the corresponding units
of measurement
î™±Zone 4: in this zone, messages relating to the control of the generating set and the menus are displayed.
Note: the information displayed on measurements, alarms and faults as well as messages and menus relating to control of the
generating set will depend on the equipment level of each generating set. Certain screens may therefore not be present.
