4.2.3.3. Connecting the generating set to the installation
Risk of electric shock.
Before use, the generating set must always be earthed. Protection against electric shocks is only effective
once the earthing connection has been made.
Disconnect the battery leads, starting with the negative lead (-), or use the battery isolating switch before
carrying out any operations on the generating set.
DANGER

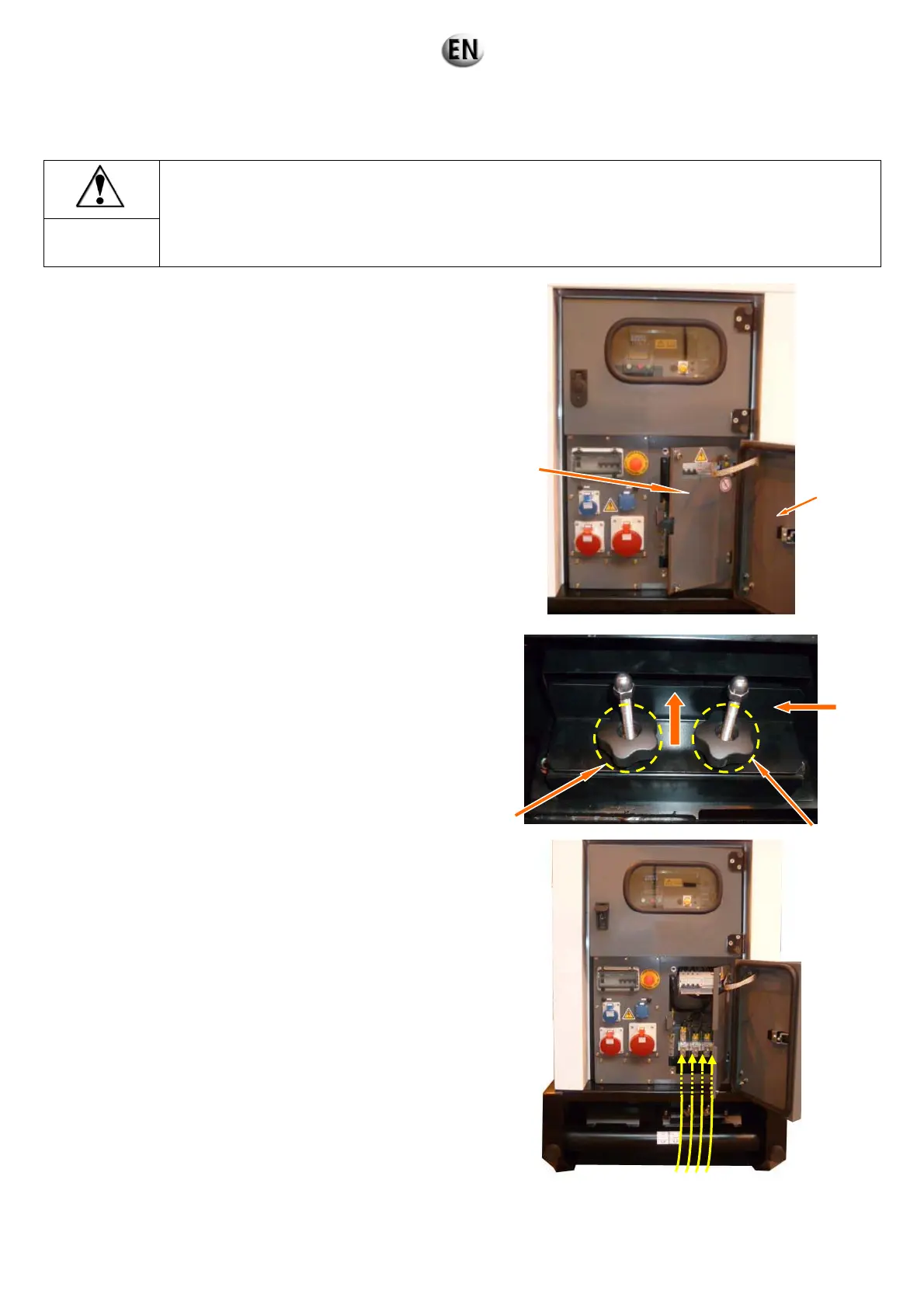

1. Open the door to the power section (no.1) then the
access door to the power connection cable router flap
and to the connection terminal box (no.2).
2. Loosen the two knobs (no.3) of the power connection
cable router flap then slide the flap (no 4) towards the
outside of the generating set.
3. Feed the power connection cables through the cable
router flap.
1
2
Power cables
3
3
4
