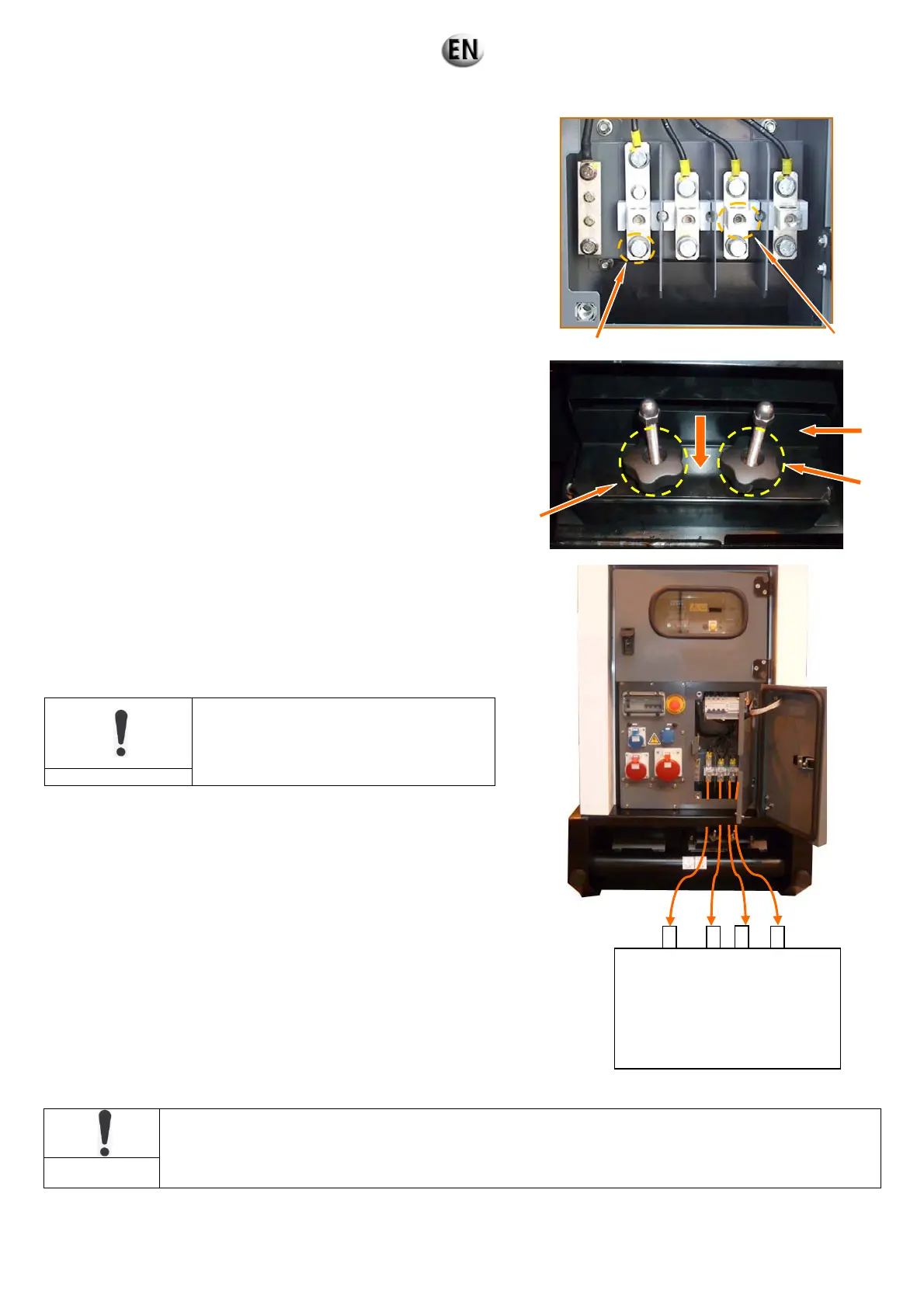

4. Connect the power connection cables onto the bars
(N/L0-L1-L2-L3 or N2-R2-S2-T2) using the terminals (no.5) or
clamps (no.6).
5. Slide the cable router flap towards the inside of the generating
set until it makes contact with the power connection cables then
retighten the two knobs; close the access door to the power
section back up again.
6. Connect the power connection cables to the installation to be
powered ensuring the live and neutral wires are correctly
connected.
Our generating sets are factory-set with a
conventional direction of phase rotation. A
phase converter (not supplied) can be used to
ensure correspondence of phases between
the generating set and the installation..
IMPORTANT
To limit the risk of falls caused by obstacles on the floor, it is recommended to suspend cables and ventilation
ducts. As necessary, ensure that cables which remain on the floor are protected by burying or covering them.
IMPORTANT
6
5
Installation to be powered
(e.g.: cabinet, distribution
box, installation etc.)
N/L0
ou
N2
L1
ou
R2
L2
ou
S2
L3
ou
T2
4
3
3
To Next Page
