6.2. Generator set with NEXYS control panel
6.2.1 Control panel presentation

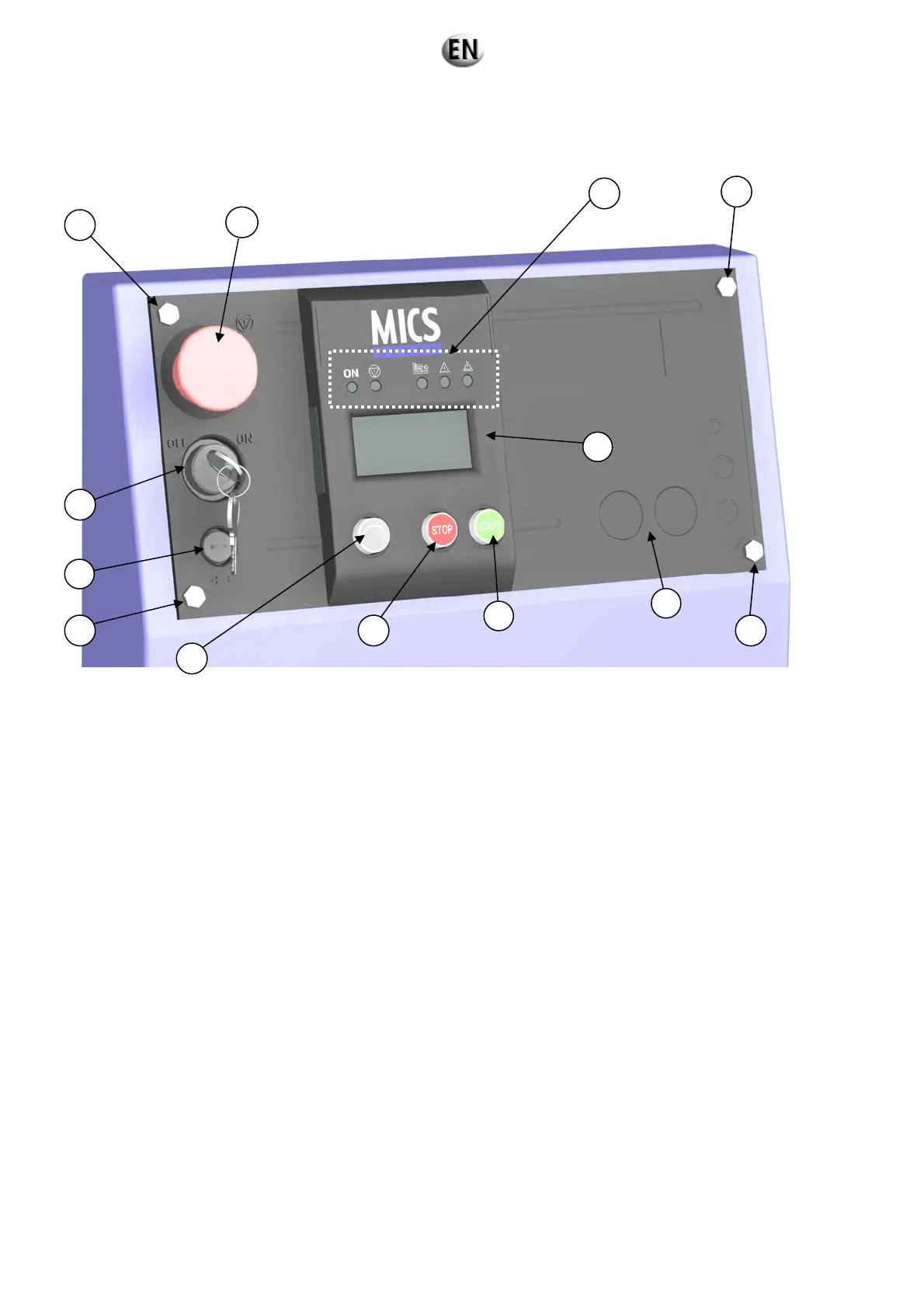

Figure 16 : View of the front side
 Emergency stop button for switching off the generating set in the event of a fault which could endanger personnel or damage
equipment
 Key switch for starting up/shutting down the module and RESET function
 Electronic card protection fuse
 Screen-scroll button, press successively to access the various screens which are available
 STOP button, press to switch off the generating set
 START button, press to switch on the generating set
 Normal operation LEDs and alarm and fault warning LEDs
 Slot reserved for panel fascia options
 Mounting bolt.
 LCD for displaying alarms and faults, operating states, electrical and mechanical quantities
