2-6

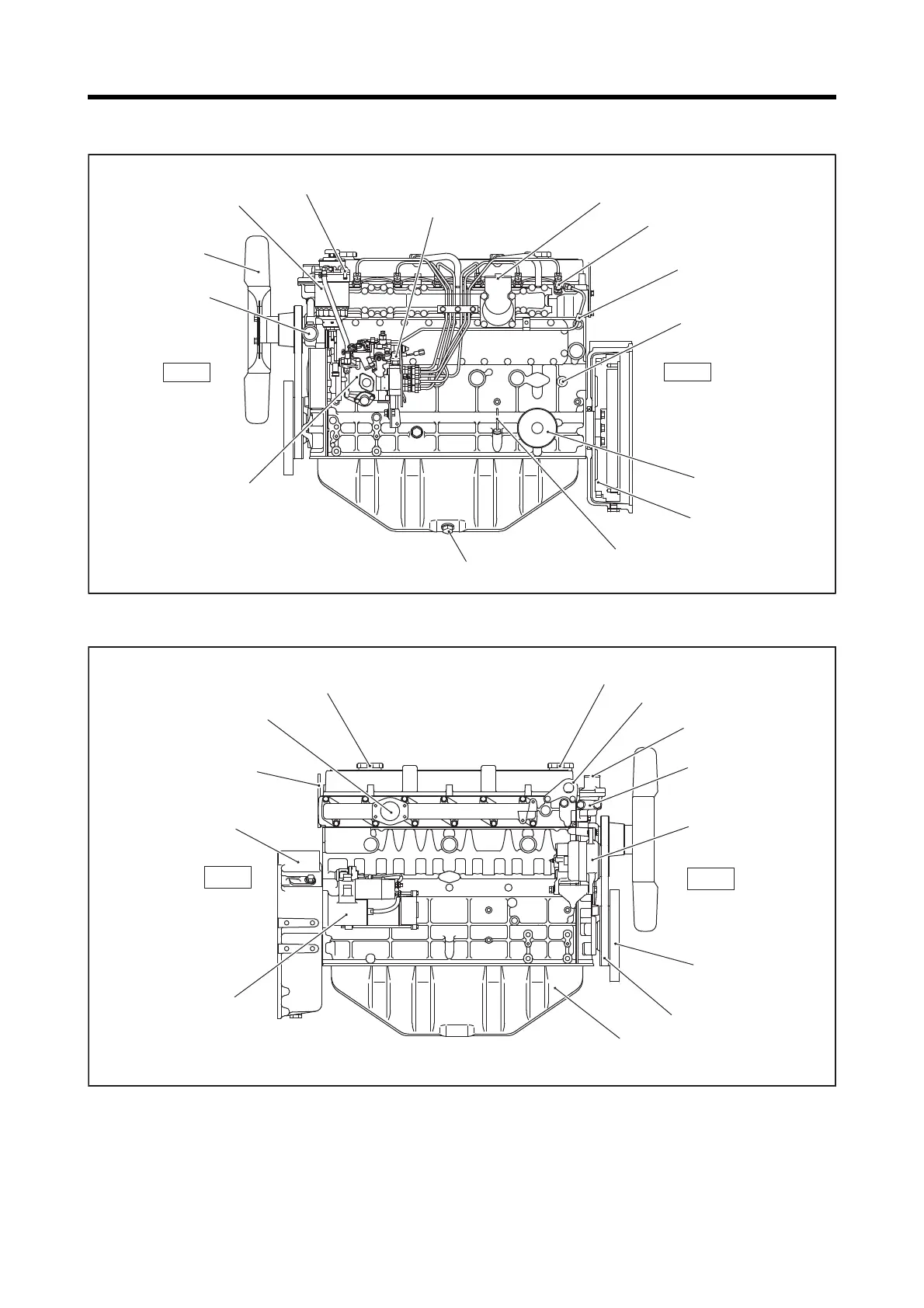

Chapter 2 NAME OF PARTS
S6S distoributor type fuel
injection pump left view
Fig. 2-1
1 Engine lef
t view
S6S distoributor type fuel
injection pump right view
Fig. 2-12 Engine right view
Rear
Front
Fuel return port
Oil drain plug
Flywheel
Oil filter
Oil level gauge
Coolant drain plug
Air inlet
Magnetic valve
(stop solenoid)
Fuel injection nozzle
Fuel filter
Fan
W
ater pump
(coolant inlet)
Fuel injection pump
Fuel inlet
Rear hanger
Damper
Front hanger
Oil filler
Oil filler
Exhaust outlet
Flywheel housing
Starter
Oil pan
Belt
Alternator
Thermostat case
Coolant outlet
Rear
Front
127/242
128
130
