SDMO R33C3 - Page 72

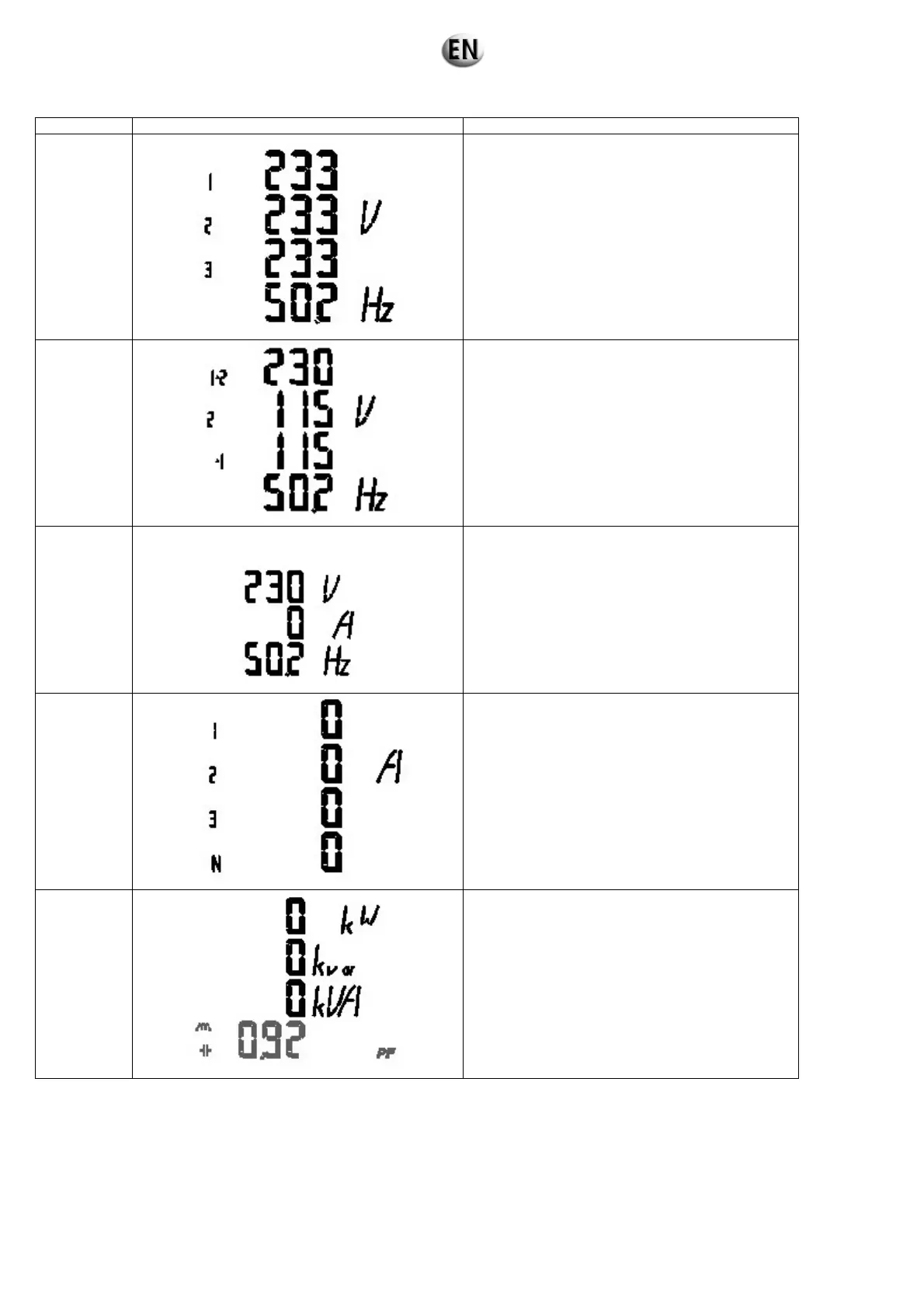

Screen No. Pictograms Data displayed
P5
Alternator V1 single Voltage Indication
Alternator V2 single Voltage Indication
Alternator V3 single Voltage Indication
Alternator Frequency Indication
P6
Alternator U12 compound Voltage Indication
Alternator V2 single Voltage Indication
Alternator V1 single Voltage Indication
Alternator Frequency Indication
P7
Alternator V1 single Voltage Indication
Alternator phase 1 Current Indication
Alternator Frequency Indication
P8
Alternator phase 1 Current Indication
Alternator phase 2 Current Indication
Alternator phase 3 Current Indication
Alternator Neutral Current Indication
P9
Total Active Power Indication
Total Reactive Power Indication
Total Apparent Power Indication
Total Output Factor Indication (inductive or
capacitive)
