Section 04 ENGINE (2-STROKE)
Subsection 07 (EXHAUST SYSTEM)

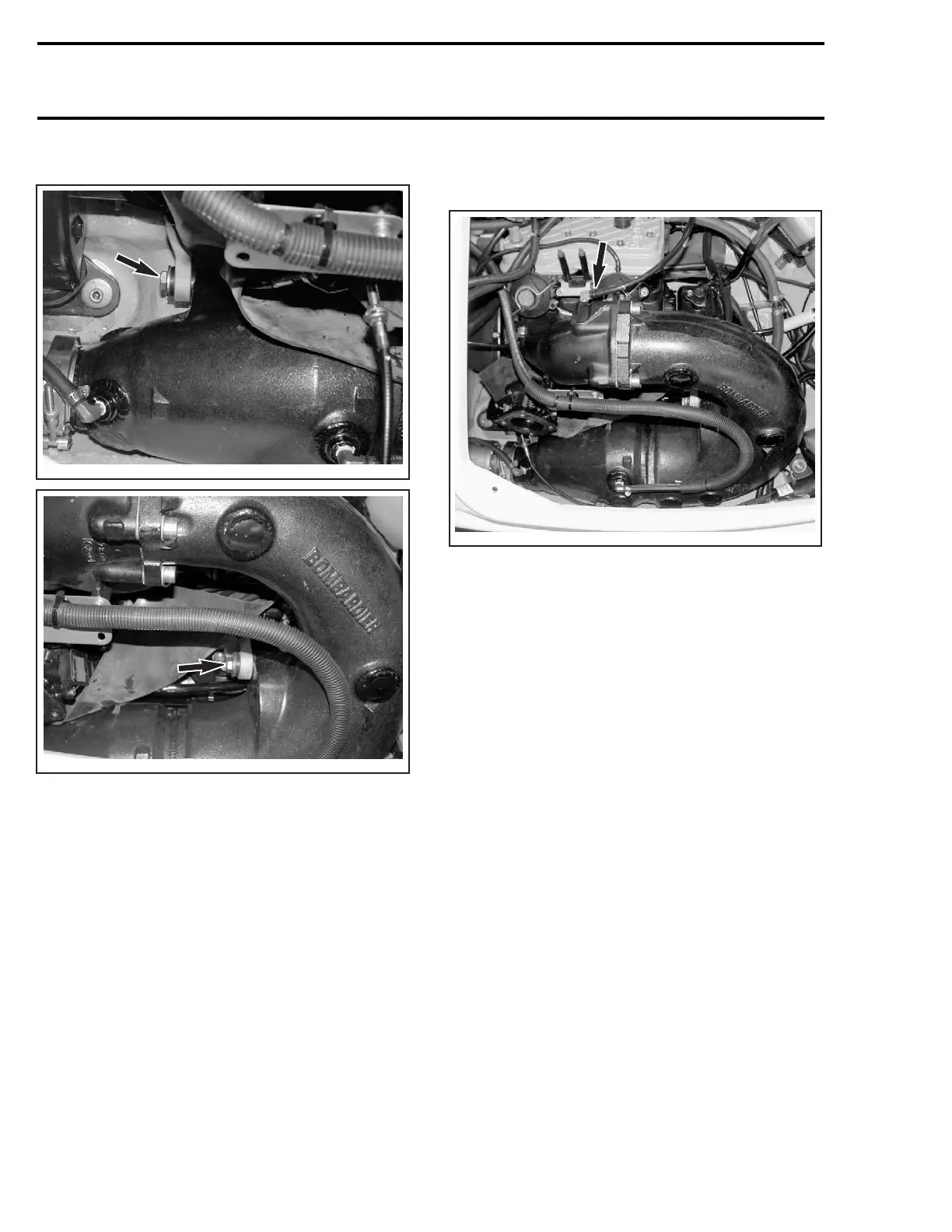

– screw no. 4 and 5.
F22D08A
F22D09A
– tuned pipe.
Exhaust Manifold
Disconnect hose from exhaust manifold no. 25.
F22D05D
Remove screws no. 7 then withdraw exhaust
manifold.
Expansion Pipe
Inspection
Do the test with the watercraft tied on a trailer in
water.
NOTE: Performing the test with a garden hose
connected on the flushing fitting of jet pump sup-
port would not supply enough pressure in the ex-
haust system to properly detect faulty joints in
some cases.
Remove rear access panel.
Start engine and bring engine speed to 5000 RPM.
Check for leaks in joint area of expansion pipe. If
there is exhaust gas or water leak, replace pipe.
Removal
NOTE: It is not necessary to remove tuned pipe
to pull expansion pipe out.
Remove/disconnect:
– flame arrester
– throttle body. Disconnect ATS and APS sen-
sors.
14 smr2004-3D
