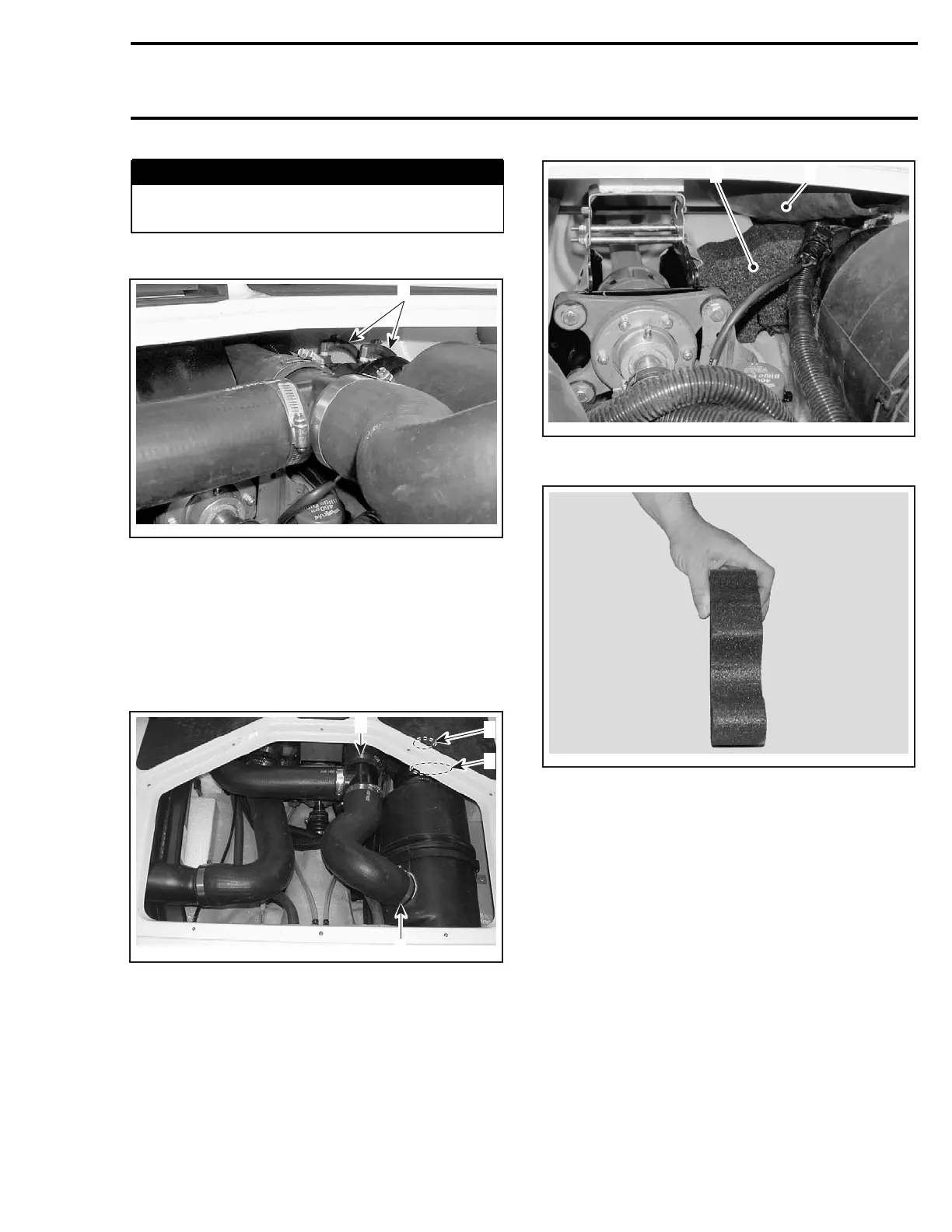

Section 04 ENGINE (2-STROKE)
Subsection 07 (EXHAUST SYSTEM)
WARNING
Pay attention not to bend injection oil cable
or throttle cable.
– hoses from rear fittings no. 11
F22D0CA
1
1. Disconnect hoses from fittings here
– small clamp no. 12 from muffler no. 15
– strap no. 13 from muffler
– clamps no. 21 and no. 22 from exhaust hoses
– T-fitting no. 23 with hoses and resonator no. 14
then move remaining hose away to get access
to foam support
F22D06B
3
3
1
2
1. Disconnect small clamp here
2. Large clamp (ref)
3. Disconnect those clamps
– foam support under expansion pipe.
F22D0DA
1
2
1. Hose moved away
2. Foam support
F22D0EA
INITIAL POSITION OF FOAM
Proceed as follows:
– Tip top of foam forward as shown
smr2004-3D 15
